Attaching the rear brackets to the switch
Complete the following steps to attach the rear brackets to the switch.
1. Align the right rear bracket to the right rear of the switch and use two 6-32 x 1/4-in. screws to attach the bracket
to the switch ( Figure 5 ).
2. Align the left rear bracket to the left rear of the switch and use two 6-32 x 1/4-in. screws to attach the bracket to
the switch ( Figure 5 ).
3. Tighten all the screws to a torque of 9 in-lbs (10 cm-kgs).

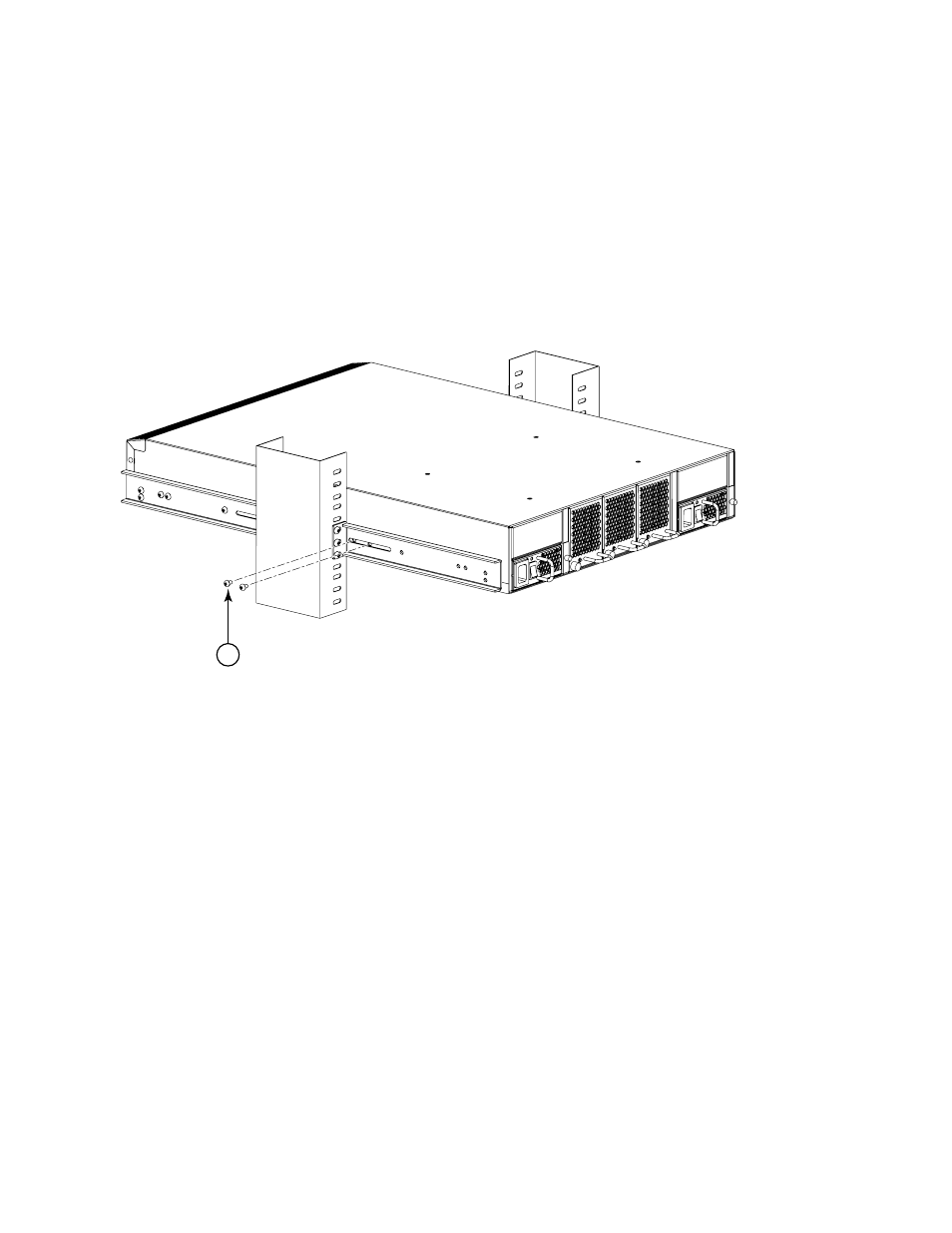

FIGURE 5 Attaching the rear bracket to the switch
1 Screw, 6-32 x 1/4-in., panhead Phillips
