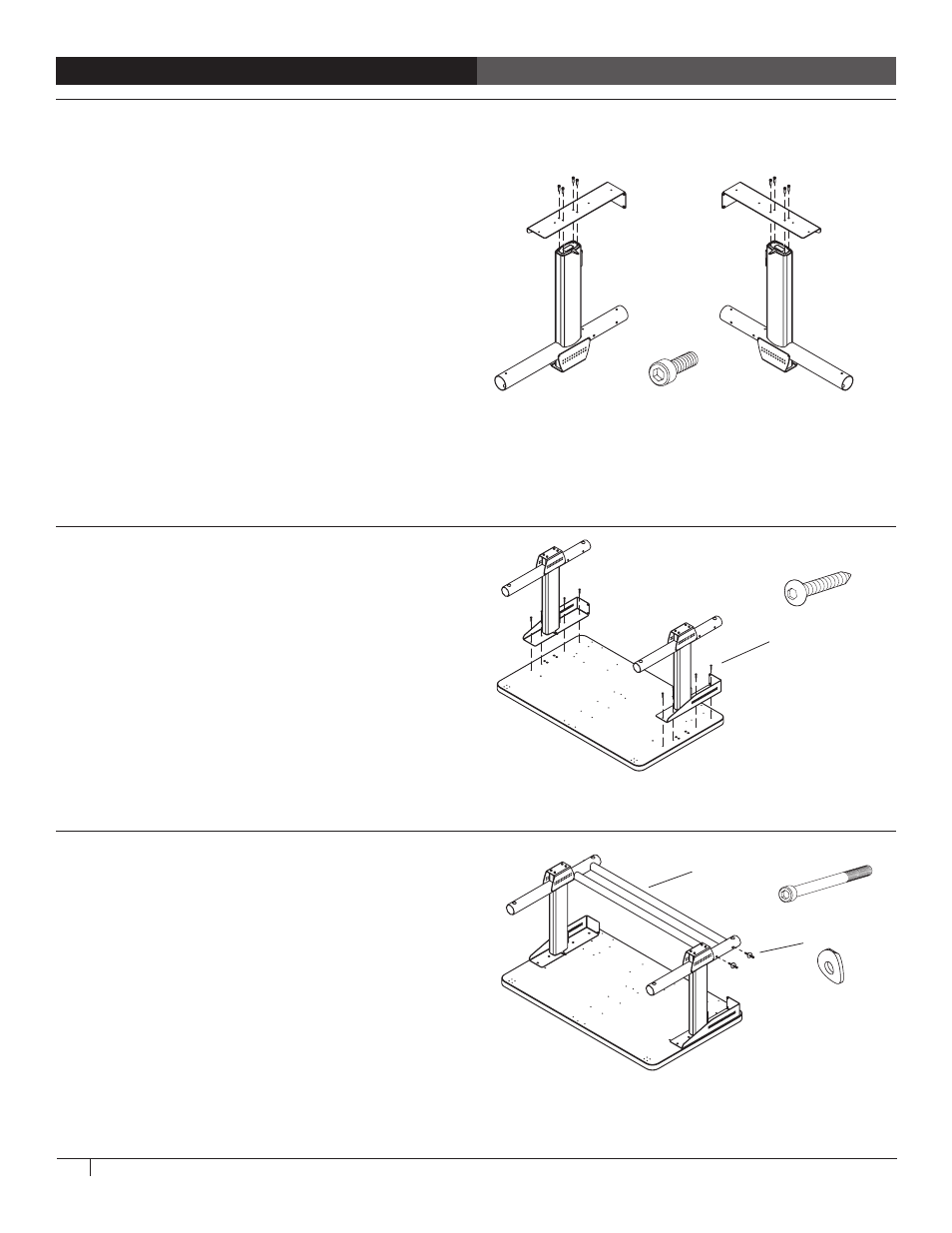

STEP 4

Attach Cross Tubes to Base Tubes

¡

Position the Right Leg Assembly (from Step 2) with

two Cross Tubes as shown. Insert one Cap Screw with a

Curved Washer through a side hole, carefully threading

the Screw into the Cross Tube, but do not tighten all

the way. Repeat for the remaining three side holes.

¡

Once all cross tubes are installed, tighten all the

basetube screws. Leave the Wood Screws loose

until Step 6.

STEP 3

Attach Leg Assembly to Shelf

¡

Set the top of the cap screws into the recessed

holes in the shelf. Align the holes on the gusset with

pre-drilled holes on the shelf. Attach each leg with

four Wood Screws. Don’t tighten all the way.

1-1/4" Button Head Screw

325-5178-00

4" Cap Screw

325-5166-00

Cross Tube

STEP 2

Attach Gusset to Legs

¡

Attaching a gusset to a leg determines an outside and

inside for the leg. The flange on the side of the gusset

goes on the outside of the leg, and the cord goes on

the inside of the leg. Before attaching the gusset,

route the leg cord through the slot on the top of the

leg so the cord goes to the inside of the table. Using

the mallet, firmly attach the cord grommet to the slot.

¡

Align a gusset with a leg so that the screw holes on

the gusset match the threaded holes in the leg.

¡

Secure a gusset to a leg with four Socket Head Cap

Screws. Repeat for the other leg.

20mm Socket Head Cap Screw

325-5272-00

Shelf Gusset (X)

Shelf Gusset (Y)

Rear

Front

Front

Basetube Washer

225-2050-00 (Black)

225-3522-00 (Silver)
