Support Screw
325-5010-00
Anthro Corporation Technology Furniture ® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-3841 anthro.com

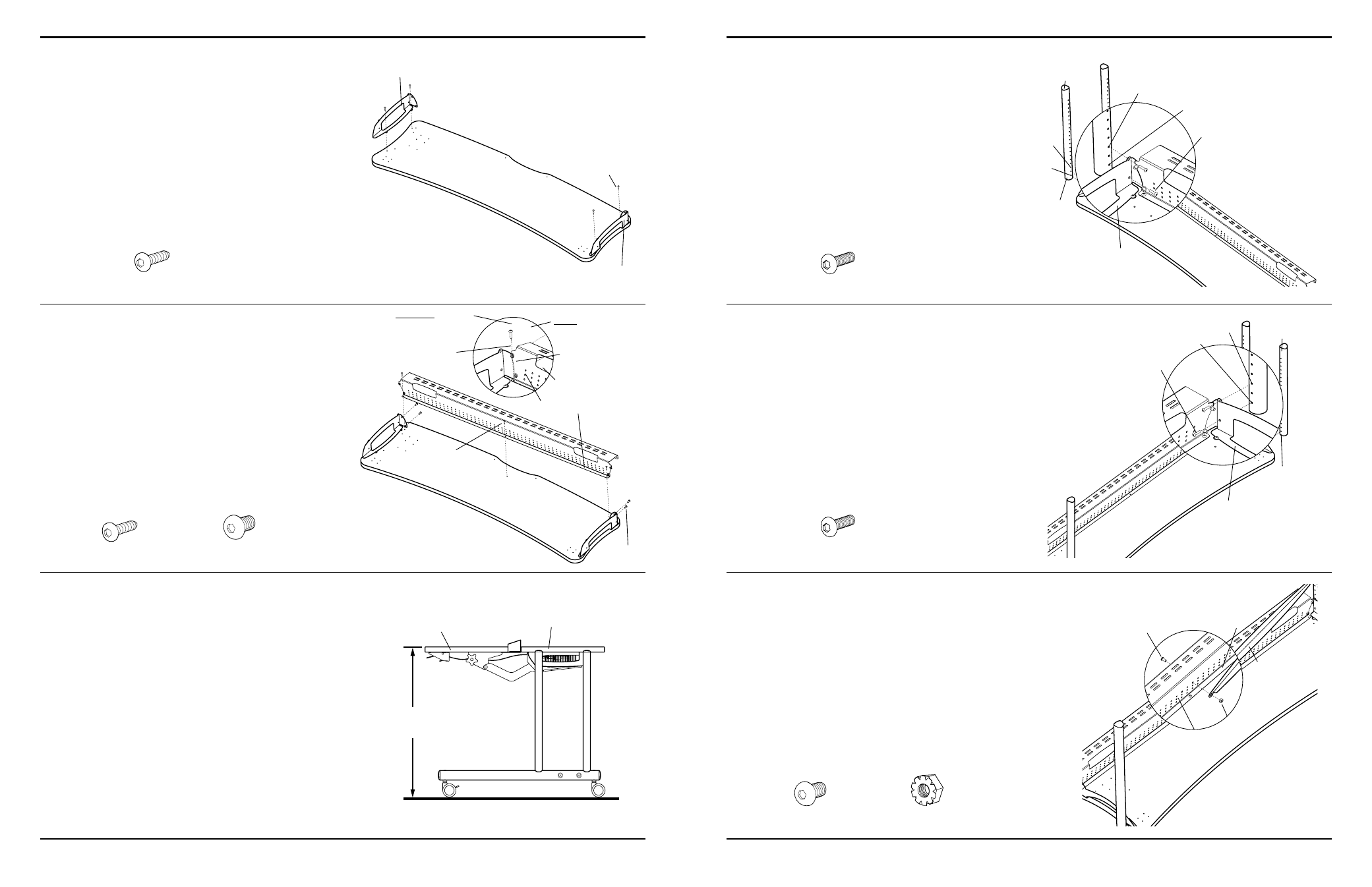

Step 3
Place your Fixed Worksurface onto the floor with the
predrilled holes facing upward.
Position the Small Support Brackets onto the Fixed
Worksurface and align two of the holes on each Support
with the predrilled holes on the Worksurface. Loosely
secure each Small Support to the Worksurface using
two Wood Screws per Support.
Step 5
Determine the best height for your Fixed Worksurface.
These instructions will place your Fixed Worksurface
31" from the floor using the standard 3" Casters.
For a final Fixed Worksurface height that is lower
than 31", adjust one hole down for each inch of
variance desired.
Your Adjusta Unit is heavy! A second person will make
this assembly procedure much easier.
NOTE: Your Fixed Worksurface location may be changed
after your Adjusta Unit has been completely assembled by
repeating Steps 6 through 10.
Step 4
Place the Back Trough onto the Fixed Worksurface,
between the installed Support Brackets (from Step 3).
Align the two Threaded holes on each end of the Back
Trough with those on both Support Brackets. Carefully,
thread one Button Head Screw through the Support
Bracket, into the Back Trough. Repeat for remaining
three Button Head Screws.
Insert three Wood Screws through the three remaining
holes on the Back Trough flange (which should be aligned
with two predrilled holes on the Worksurface) and tighten
into place.
3 /
4
" Wood Screw
325-5106-00
3 /
4
" Wood Screw
325-5106-00
( 1 /
4
-20 X .50") Button Head Screw
325-5003-00
31"
Adjusta Fixed
Worksurface
Adjusta Caddy has
approximately 11"
of travel
Support Screw
325-5010-00
Step 6
Attach a rear Vertical Leg by installing two Support Screws
through the Small Support Bracket Y into holes 1 & 3 from
the top (non-coped end).
Attach a front Vertical Leg to Holes 1 & 3 using the
same procedure.
Step 7
Attach the remaining Vertical Legs to the Small Support
Bracket X using the same procedure used in Step 6.
NOTE: Make certain to install the Vertical Legs into the same
holes used in Step 6.
Small Support
Bracket Y
Hole 1=31" Final
Worksurface Height
Top
(non-coped)
end
Bottom
(coped)
end Hole 3
rear Leg
Hole 1
front Leg
Hole 3
Small Support
Bracket X
Hole 1
Hole 3
Top
(non-coped)
end
Bottom
(coped)
end
FAJ60zz/xx3
300-5197-00
Back Trough
Threaded holes
FIRST: Install the
Button Head Screws
SECOND: Install
the Wood Screws
Back Trough Flange
NOTE: Make certain to install
the Back Trough in front of
the Support Brackets
Step 8
Position one Buttress against the Back Trough, aligning the
holes on both Buttress and Back Trough.
Insert a Button Head Screw from the rear of the Back
Trough, and capture on the opposite side using a Keps Nut.
NOTE: Just hand tighten the Keps Nut for now.
( 1 /
4
-20 X .50") Button Head Screw
325-5003-00
( 1 /
4
-20) Keps Nut
325-5130-03
Keps
Nut
Button Head Screw
Buttress Flange
faces towards
the Front
Small Support
Bracket X
Small Support
Bracket Y
Back Trough
Buttress
Wood Screw
Support Screw
Support Screw
Wood Screw
Button
Head Screw
