Anthro Corporation Technology Furniture ® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-3841
anthro.com
18– 3” Non-Locking Casters ...........Qty. 4 .................. 150-5052-00
19– Caster Inserts ...............................Qty. 6 .................. 525-5032-00
20– 2.0” Large End Caps ...................Qty. 4 .................. 175-5157-00
21– Insert Screws ............................. Qty. 6 .................. 325-5052-00
22–
fit Console Back Trough-Y ......Qty. 1 .................. 225-2368-00
23– Button Head Screws ..................Qty. 4 .................. 325-5003-00
24– 1.5” Small Caps .............................Qty. 6 .................. 175-5156-00
25– Small Support X ..........................Qty. 1 .................. 225-2014-00
26–
3 /
4
” Wood Screws.........................Qty. 42 ................ 325-5106-00
27– Support Screws ............................Qty. 12 ................ 325-5010-00
28–
fit Corner Connector Support-X .Qty. 1 .................. 225-5582-00
29– fit Corner Connector Support-Y .Qty. 1 .................. 225-5583-00
All Fastener quantities listed here are the minimum needed
for your Console Unit assembly. There may be a few extra
Fasteners included, which are not counted in the Parts List.

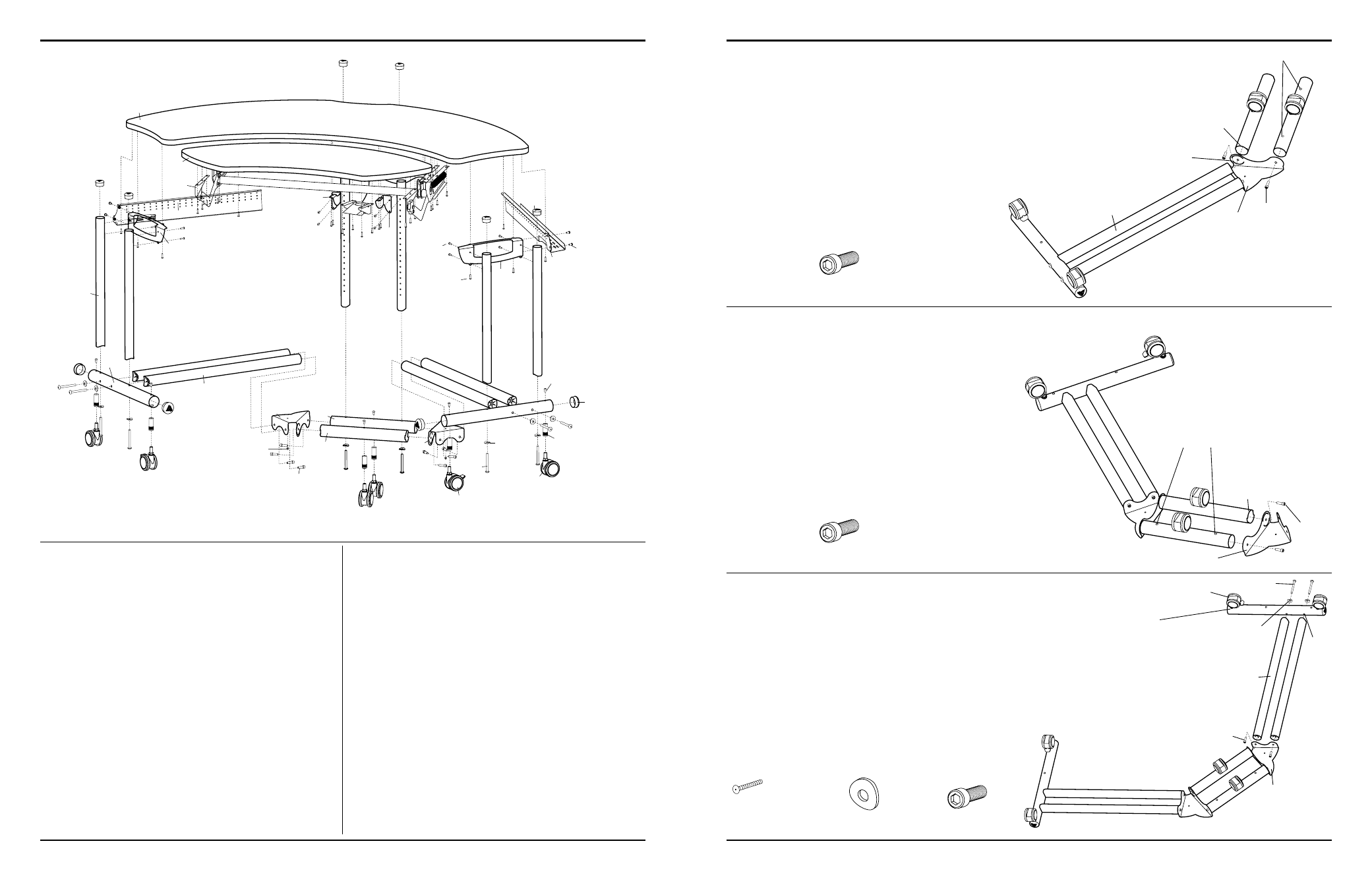

Component list for part # FCCzz/xx3
Detailed views of all Hardware is provided with each Assembly Step.
06
08
03
02
09
11
07
01
12
13
14
15
17
20
10
16
04
21
18
19
Step 12
(uses the 1 /
4
” Hex Key)
Position the 15.27” Base Tube against the Console
Junction, then mate the Keyed Feature to the Keyed Tube
End. Secure the Base Tube using a Cap Screw & the 1 /
4
”
Hex Key.
Place the 15 “ Base Tube against the Base Junction and
secure using a Cap Screw.
NOTE: Do not yet fully tighten the 15” Base Tube Cap Screw.
Step 13
(uses the 1 /
4
” Hex Key)
Place the Console Base Junction-X onto the open ends
of the 15” & 15.27” Base Tubes as shown, then mate the
Keyed Feature to the 15.27” Keyed Tube End.
Secure both Base Tubes to the Console Base Junction
using two Cap Screws & the 1 /
4
” Hex Key.
NOTE: Do not yet fully tighten the 15” Base Tube Cap Screw.
Step 14
(uses the 1 /
4
” Hex Key)
Place the non-coped ends of the two remaining Cross
Tubes against the Base Junction and loosely secure using
two Cap Screws.
Orient the remaining Base Tube assembly as shown.
Secure to the coped Cross Tube Ends by inserting
a fit Bolt through a Tube Washer, then insert the Bolt
through the Base Tube and carefully thread into each
Cross Tube, but don’t fully tighten the fit Bolts yet.
Tighten the two Cap Screws installed during
this Step.
( 5 /
16
-18 X 1.5”) Cap Screw
325-5225-00
( 5 /
16
-18 X 1.5”) Cap Screw
325-5225-00
Leave these two holes
open on the 15” Base Tube
15.27” Base Tube
Keyed ends
Cap
Screw
Leave these two holes open
15.27” Base Tube
Keyed end
fit Bolt
fit Tube Washer
Side
holes
Cross Tubes
Locking Caster
Cap Screw
( 5 /
16
-18 X 3.5”) fit Bolt
325-5194-00
fit Tube Washer
225-2050-00 or 225-3522-00
( 5 /
16
-18 X 1.5”) Cap Screw
325-5225-00
05 23
24
25
26
22
27
29
28
Base Tube Assembly
(from Step 11)
Console
Base
Junction-Y
Console Base Junction-X
Console
Base Junc-
tion-X
Remaining Base
Tube Assembly (from
Step 9)
Keyed Feature
01– fit Console Large Shelf ..............Qty. 1 .................. 100-6498-00
02– fit Console Caddy ......................Qty. 1 ...................100-6499-00
03– fit Adjusta Mechanism ...............Qty. 1 .................. 225-5547-00
(The Adjusta Mechanism is packaged separately & requires assembly)
04– fit Console Back Trough-X .....Qty. 1 .................. 225-2367-00
05– Small Support Y ...........................Qty. 1 .................. 225-2015-00
06–
fit 24.875” Vertical Legs ............Qty. 6 .................. 125-5230-00
07– fit 21” Base Tubes ........................Qty. 2 .................. 125-5275-00
08– fit 30.5” Console Cross Tubes ...Qty. 4 .................. 125-5248-00
09– fit Console Base Junction-Y ....Qty. 1 .................. 225-5787-00
10– Acorn Nuts ....................................Qty. 2 .................. 325-5023-00
11– Cap Screws.....................................Qty. 8 .................. 325-5225-00
12–
fit 15.27” Keyed Base Tube......Qty. 1 .................. 125-5249-00
13– fit 15” Base Tube..........................Qty. 1 .................. 125-5250-00
14– fit Console Base Junction-X ...Qty. 1 .................. 225-5786-00
15– 3” Locking Casters ......................Qty. 2 .................. 150-5053-00
16–
5 /
16
-18 fit Bolts ..............................Qty. 10 ................ 325-5194-00
17– fit Tube Washers..........................Qty. 10
225-2050-00 or 225-3522-00
Cap
Screw
