OptiLogic Series

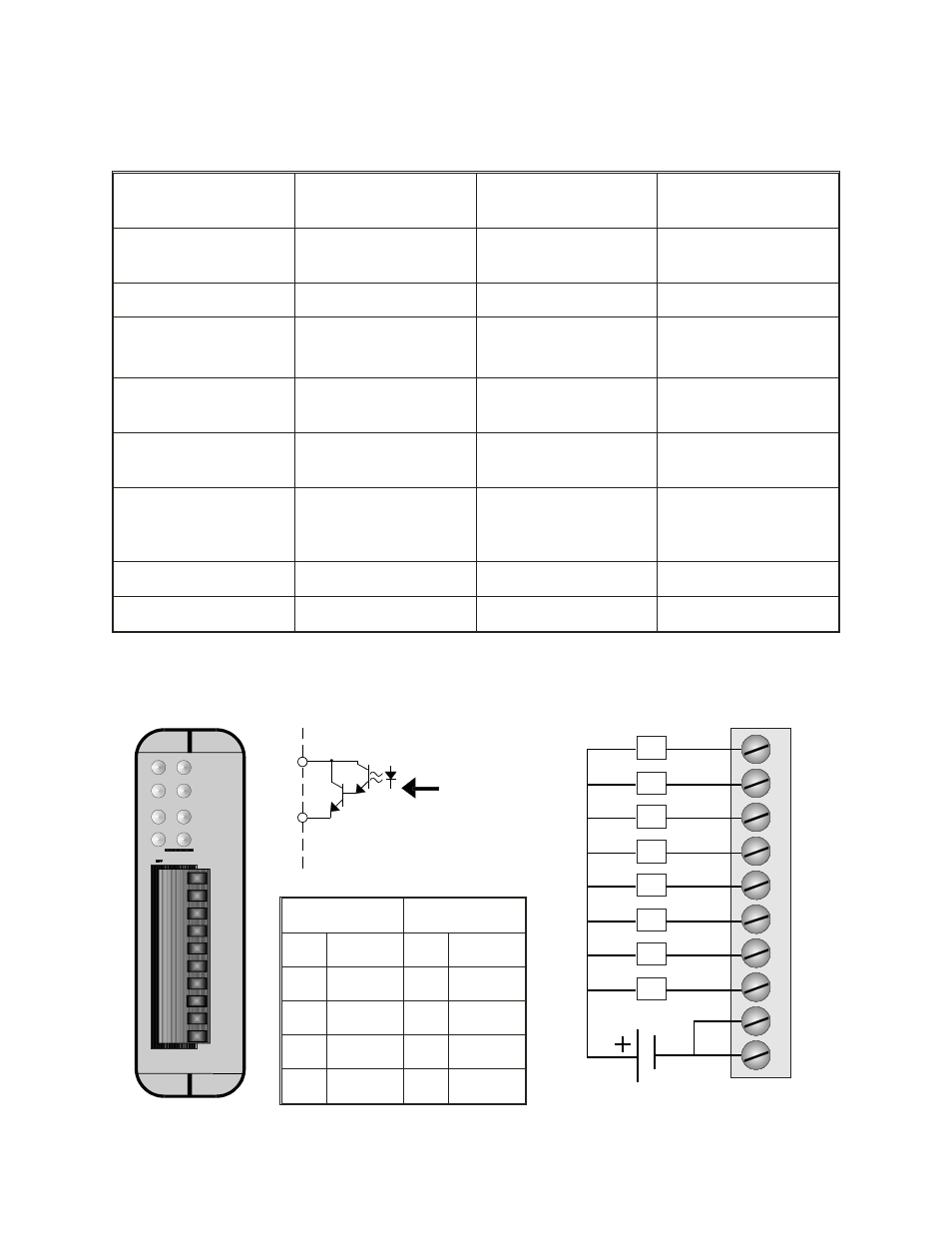

OL2109 DC Sinking Output Module
Outputs
8
Card Cage Power
required
140 mA
Output Type
NPN open collector
transistor
Status indicators
Logic side LED
Voltage Rating
0 - 40VDC
Peak Voltage
80VDC
On voltage drop
.75V @ 100mA
.95V @ 300mA
Terminal strip
Plug In (removable)
Commons
2 (connected internally)
Terminal screw
Slotted (0.1
” blade
max)
Maximum continuous
load current
300 mA
Maximum terminal
wire gauge
18 AWG (use copper
conductors)
Maximum surge
current
1.0A for 5 seconds
Required Temperature
rating of field installed
conductors
60
C/75C
Weight
1.1 oz (30 g)
Terminal block torque
2.2 lb-in
Type
9
Subtype
2
1
2
4
5
6
7
8
9
10
3
0
2
3
1
4
5
6
7
L
O
O
2109
O
U
T
module internal
circuit
isolation
optical
From
OptiLogic
processor
10
9
8
7
6
5
4
3
2
1
L7
L3
L5
L1
L6
L2
L4
L0
5-40VDC
Connection diagram
Terminal
Terminal
1
Common
6
Out 3
2
Common
7
Out 4
3
Out 0
8
Out 5
4
Out 1
9
Out 6
5
Out 2
10
Out 7
The OL2109 Transistor Output module provides eight optically isolated transistor outputs which can be used for
switching small DC loads. Individual LED indicators provide visual feedback of output state.
