- 3 -
Your product may vary slightly from the picture above.
PRE-INSTALLATION CHECK
The pressure vessel is supplied as a
separate item, and will need to be fitted
prior to installing the pump.
Install the pressure vessel ensuring
the fibre washer is in place and hand
tighten.
Note: Do not overtighten pressure
vessel.
After fitting the pressure vessel ensure
the retaining nut at the base of the
assembly is still hand tight and the
cable connecting the pressure switch
has not been strained during the
assembly.
Do not lift/carry the pump by the
transfer pipe or pressure vessel
manifold.

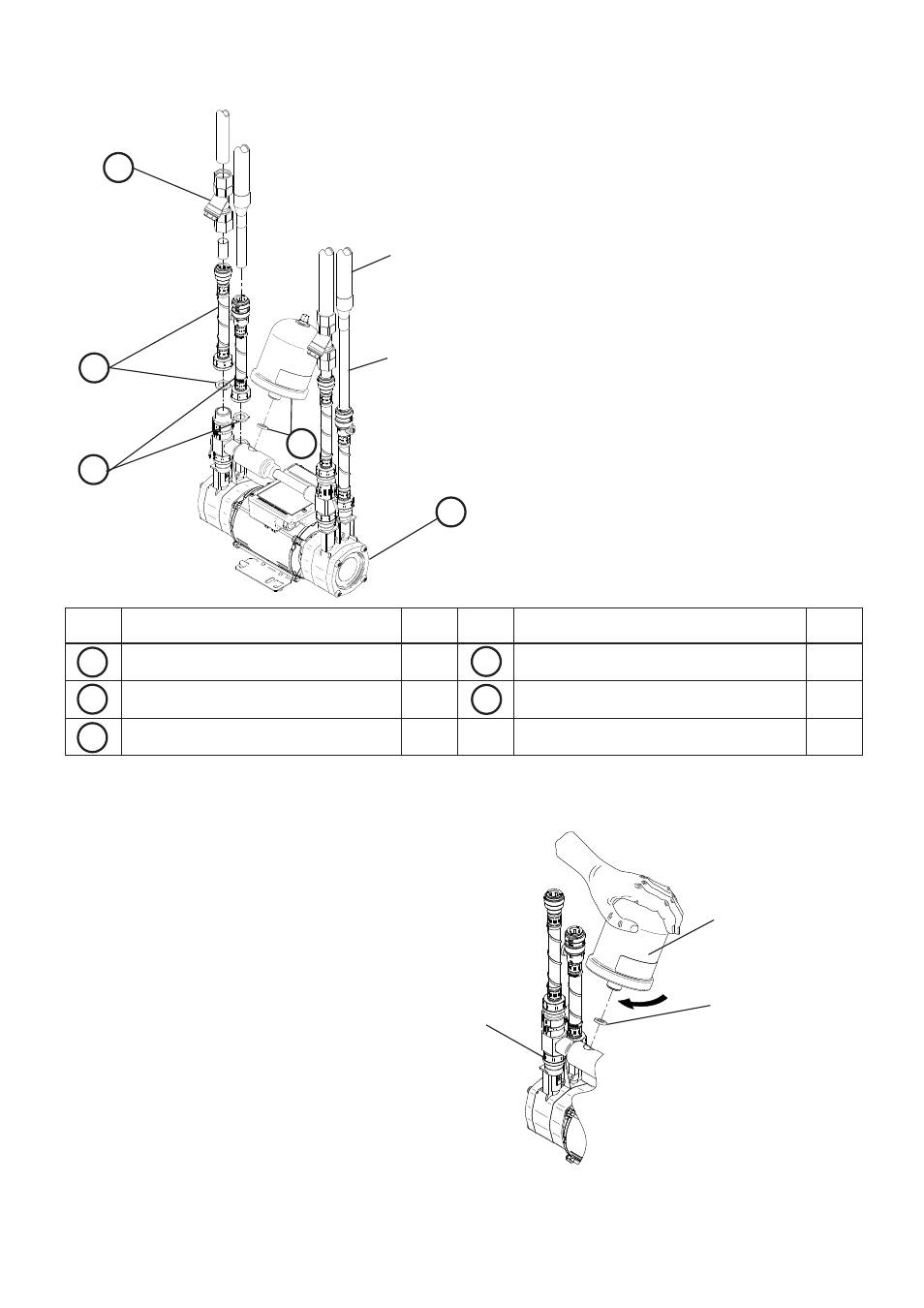

CHECKLIST
Item Description Qty Item Description Qty
Pump 1 Tank & fibre washer 1
Plain Hose & sealing washer 2(1) Inline strainers (not supplied)
ISO Hose & sealing washer 2(1)
A D
E B
IMPORTANT: With the pump
removed from its packaging check
for any damage prior to installation.
If any damage is found contact
Techflow Products within 24 hours
of receipt.
C
Fig. 1
B
Fig. 2
Pressure vessel
Fibre washer
Retaining nut
C
15 mm pipework
22 mm outlet pipework
to shower/bathroom
A
E
D
