2 LOCATION - TWIN PUMP
Cold water connection:
2.28
The cold water supply: The supply must be AIR FREE and have a
DEDICATED CONNECTION to the tank which should be via a tank connector,
positioned at a slightly lower level (25 mm minimum) than the feed pipe to the hot
water cylinder.
Do not connect to the mains.
2.29 Location: The pump must, for optimum performance, be sited as close as
possible to and never more than 4 metres from the HOT WATER cylinder. The
pump should always be sited BELOW the HOT WATER take-off from the cylinder.

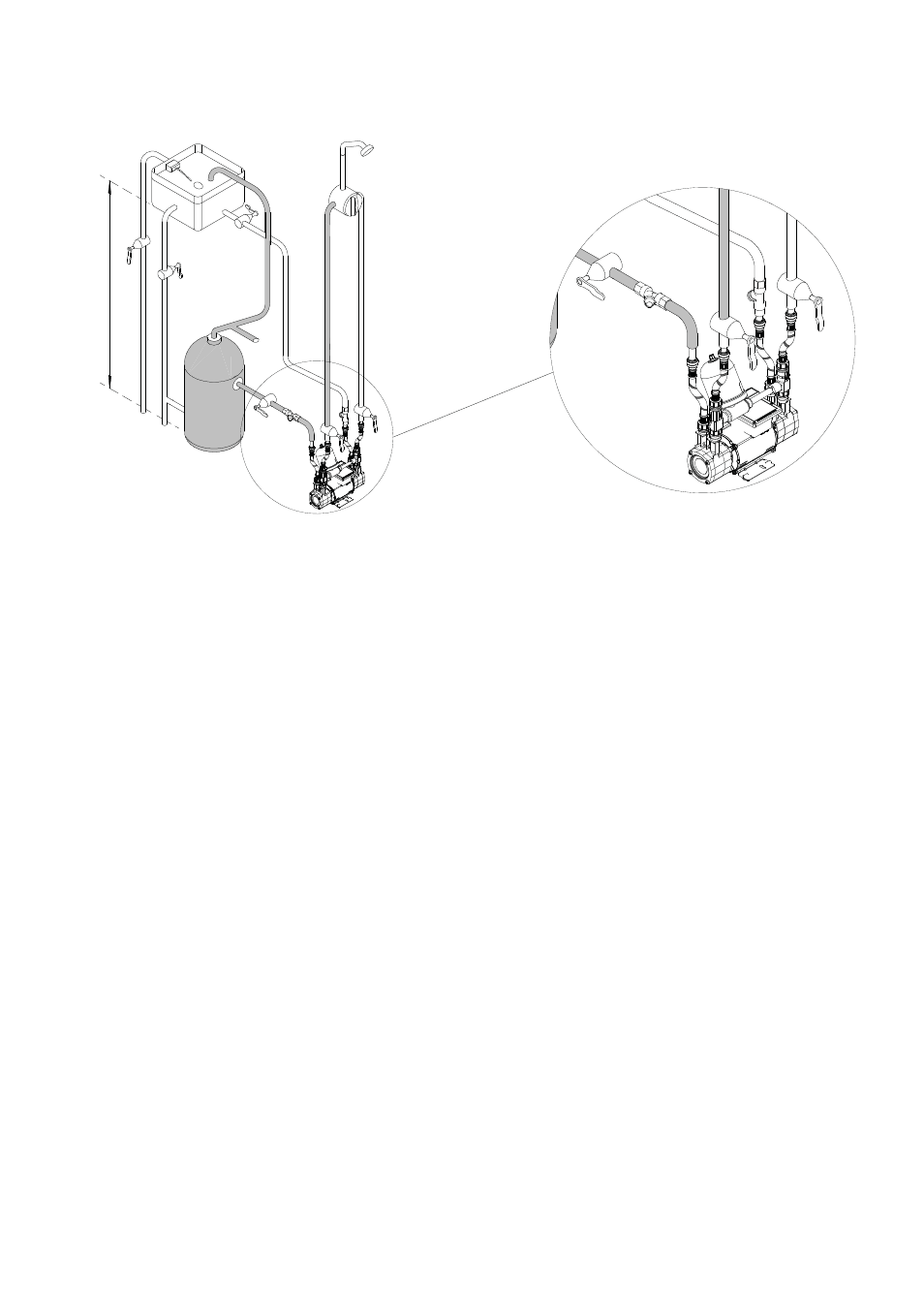

Negative Duty Twin Pump System
Fig. 6
Max. static inlet pressure
6
m
