Page 12
RTI RTI RTI RTI
TECHNOLOGIES, INC. TECHNOLOGIES, INC. TECHNOLOGIES, INC. TECHNOLOGIES, INC.

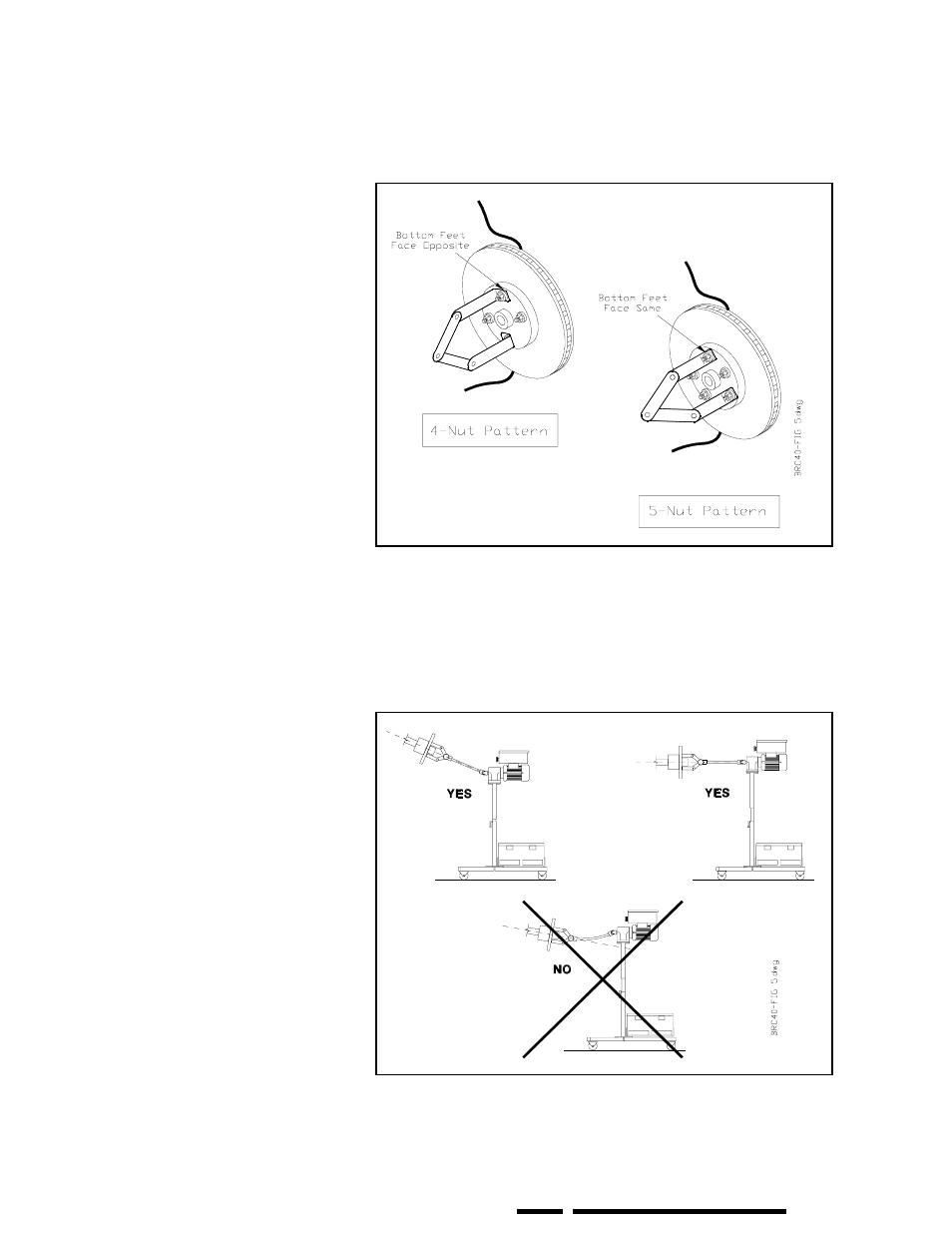

Figure 6 Mounting the Wheel Drive Brackets
Figure 7 Aligning the Wheel Drive Motor
ATTACHING THE DRIVE MOTOR
1. Tighten Wheel Nuts on all but two
studs. Attach the Wheel Drive
Brackets, with Spacers, to the two
vacant wheel studs as shown in
Figure 6. Leave the two wheel
nuts slightly loose.
2. Slide the sleeve on the connecting
shaft of the Drive Motor away
from the universal coupling so the
shaft is free to articulate.
3. Position the Drive Motor Stand
and connect the Wheel Drive
Brackets to the end of the Drive
Motor Shaft.
4. Tighten the wheel nuts so the
Wheel Drive Brackets are on the
centerline of the wheel hub.
5. Carefully adjust the Drive Motor
Stand so the shaft aligns with the
axis of rotation of the wheel.
Refer to Figure 7 for proper setup
and alignment.
6. Set the locks on the Drive Motor
Stand casters. Check that adjusting
handles on the stand are tight.
7. Slide the vinyl cover over the
Wheel Drive Brackets.
This cover must remain in place
during operation of the Wheel
Drive Motor.
8. Connect the coiled Power Cable
between the Wheel Drive Motor
and the Lathe.
