Page 6
VERY IMPORTANT
Open valve on wand only while end is in fluid.
Do not suck air as the pump may loose its prime.

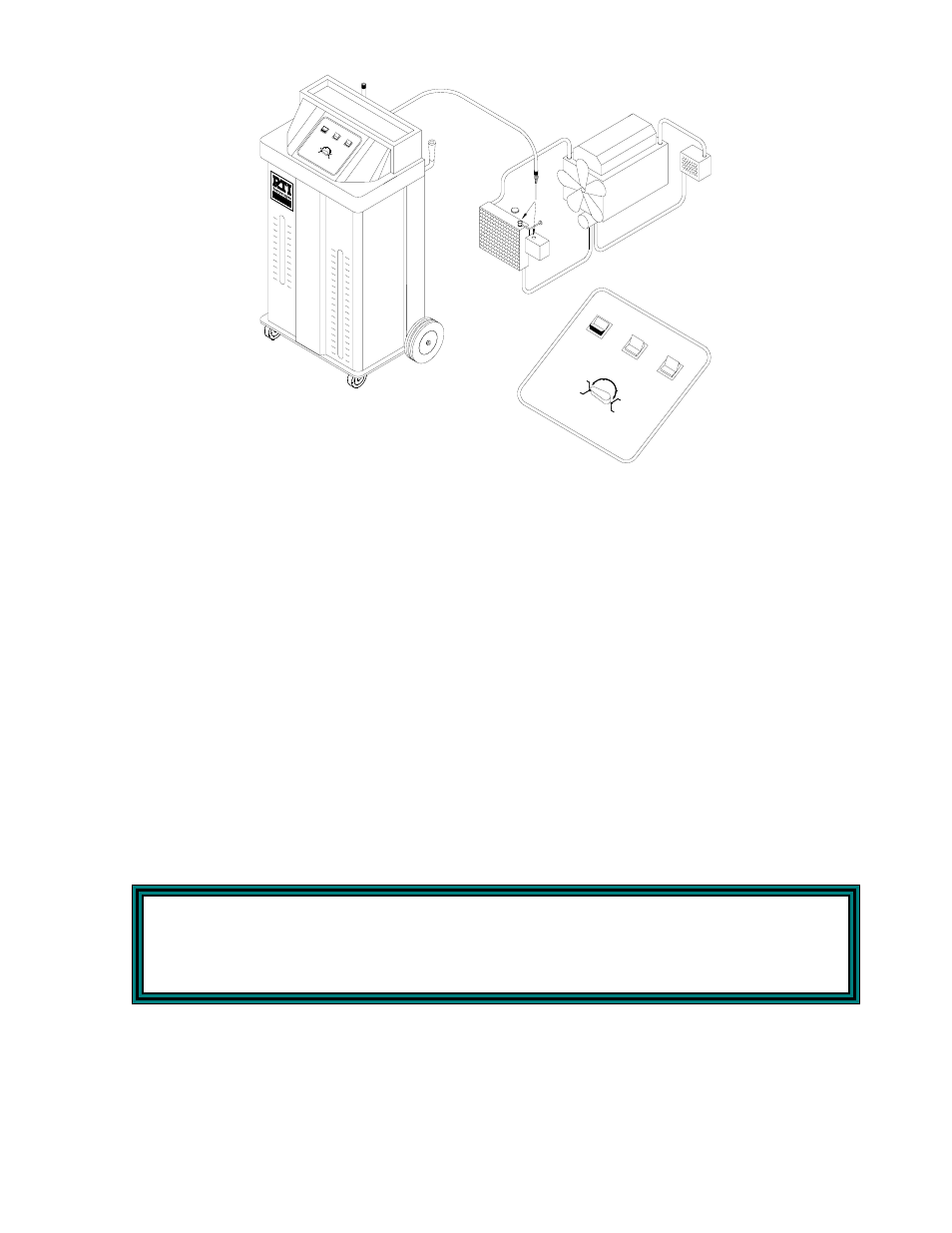

Green Hose
Water
Radiator
Overflow
Pump
Black Hose
Hose
Radiator
Wand Heater
Engine
Core
Block
OFF
& O VER FLO W LOW ER R ADI ATO R
OFF
EXC HAN GE COO LAN T O R
FILL RA DIA TOR & O VER FLO W & O VER FLO W
LO WER RA DIA TO R EMP TY W AST E TA NK
EXC HAN GE CO OLA NT & O VER FLO W FILL RA DIA TO R
OFF
EMP TY W AST E T ANK
EM PTY WA STE TAN K
LOW ER R ADIA TOR
& O VER FLO W
FILL RAD IATO R & OV ERF LOW
EXC HAN GE C OO LAN T O R
EM PTY WA STE TA NK
OFF
FILL RA DIA TOR
& O VER FLO W
EXC HAN GE C OO LAN T
OFF
LOW ER R ADIA TOR
& O VER FLO W
OFF
LOWERING COOLANT LEVEL
WARNING: Coolant in the vehicle cooling system may be extremely hot and
under great pressure. Wear safety glasses and use protective
clothing and gloves. Use extreme caution when removing radiator
cap and hoses.
1. Slowly and carefully remove the cap from the radiator.
2. Remove cap from overflow container.
3. Attach the wand to the black hose. Close the valve.
4. Turn control valve to LOWER RADIATOR & OVERFLOW.
5. Press the top of LOWER RADIATOR & OVERFLOW selector switch to turn on
pump.
6. Use the Wand to empty the overflow container and lower the level of coolant
in the radiator to a level just below the upper hose connecting the radiator to the
engine. Open valve on wand as required.
7. Press bottom of LOWER RADIATOR & OVERFLOW selector switch to turn off
pump.
8. Replace caps on the radiator and overflow container.
