MAHLE RTI MCX-1 (Rev D) - Manual (Page 3)

Page 2
Wand
New Coolant
Tank
Waste Tank
Small Adapter Hose
Large Adapter Hose
Small Hose Clamps
Large Hose Clamps
1-1/4
1-1/2
Large Step Adapters
Small Step Adapters
VALVE OPEN
1-3/4
VALVE CLOSED
1-1/4
1-3/8
(Qty=2)
1-3/8
1-1/2 1-3/4
Impeller & Gasket
OFF
& O VER FLO W
LOW ER R ADIA TOR
OFF
EXC HAN GE CO OLA NT O R
FILL RA DIA TOR & O VER FLO W
& O VER FLO W
LOW ER R ADIA TOR EM PTY W AST E TA NK
EXC HAN GE C OO LAN T & O VER FLO W
FILL RA DIA TOR
OFF
EM PTY W AST E TA NK

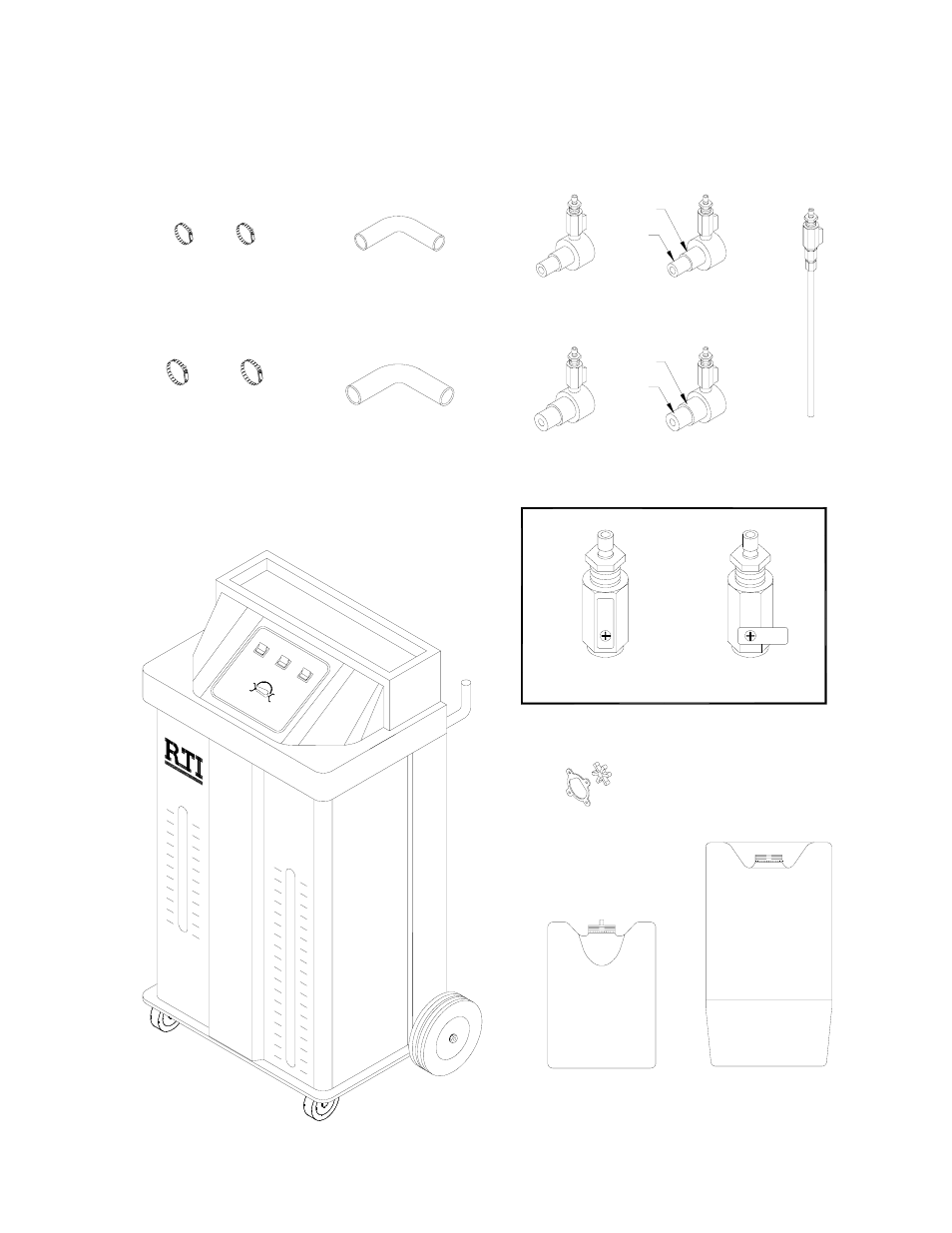

COMPONENT DESCRIPTION
Unpack all components and verify quantities per this illustration.
Contact RTI if any items are missing or damaged.
