Page 11

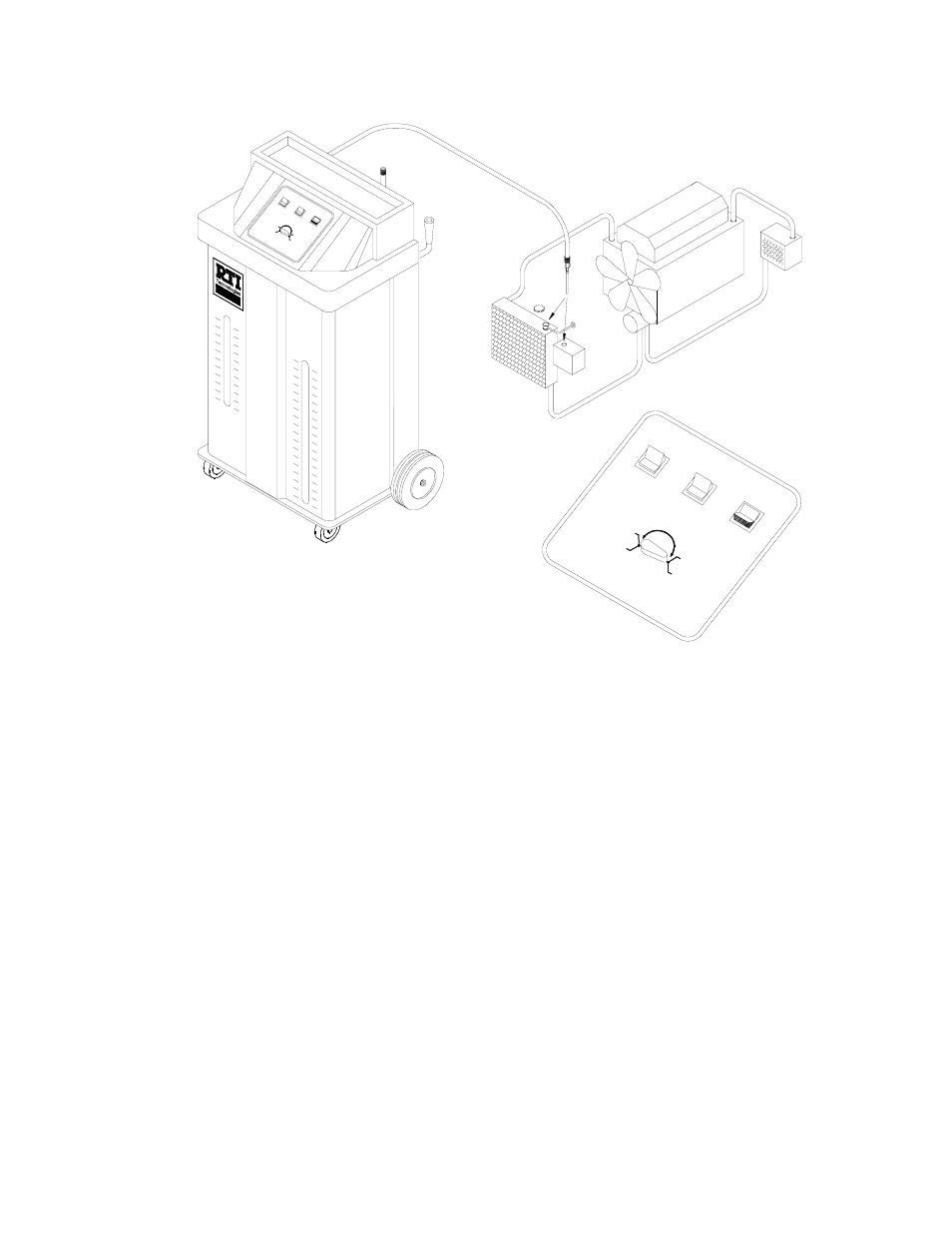

Water
Radiator
Overflow
Pump
Green Hose
Radiator
Hose
Black Hose
Wand
Engine
Block
Core
Heater
OFF
& O VER FLO W
LO WE R R ADIA TOR
OFF
EXC HAN GE CO OLA NT O R
FIL L R ADIA TOR & O VER FLO W & O VER FLO W
LO WE R R ADIA TO R EM PTY WA STE TAN K
EXC HAN GE C OO LAN T & O VER FLO W
FILL RA DIA TO R
OFF
EM PTY W AST E T ANK
LOW
ER R
ADIA TOR
& O VER FLO W
FILL RA DIA TOR
& O VER FLO W
EM PTY WA
STE TA NK
LOW
ER R
ADIA
TOR
& O VER
FLO W
OFF
EM PTY WA STE TA NK
OFF
EXC
HAN GE C
OO LAN T
FILL
RA DIA TO R & OV ERF LOW
EXC HAN
GE C
OO LAN T O R
OFF
COMPLETING THE JOB
8. Remove the Step Adapters from the radiator hose and the Adapter Hose.
9. Remove the Adapter Hose and reattach the radiator hose.
10. Remove the overflow container cap.
11. Install the Wand on the green hose. Close the valve.
12. Turn control valve to FILL RADIATOR & OVERFLOW.
13. Press the top of EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW
selector switch to turn on the pump.
14. Open the valve on the Wand to fill the radiator and overflow container to the
recommended levels.
15. Replace the radiator cap and overflow container cap.
16. Press the bottom of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch and disconnect power cord.
