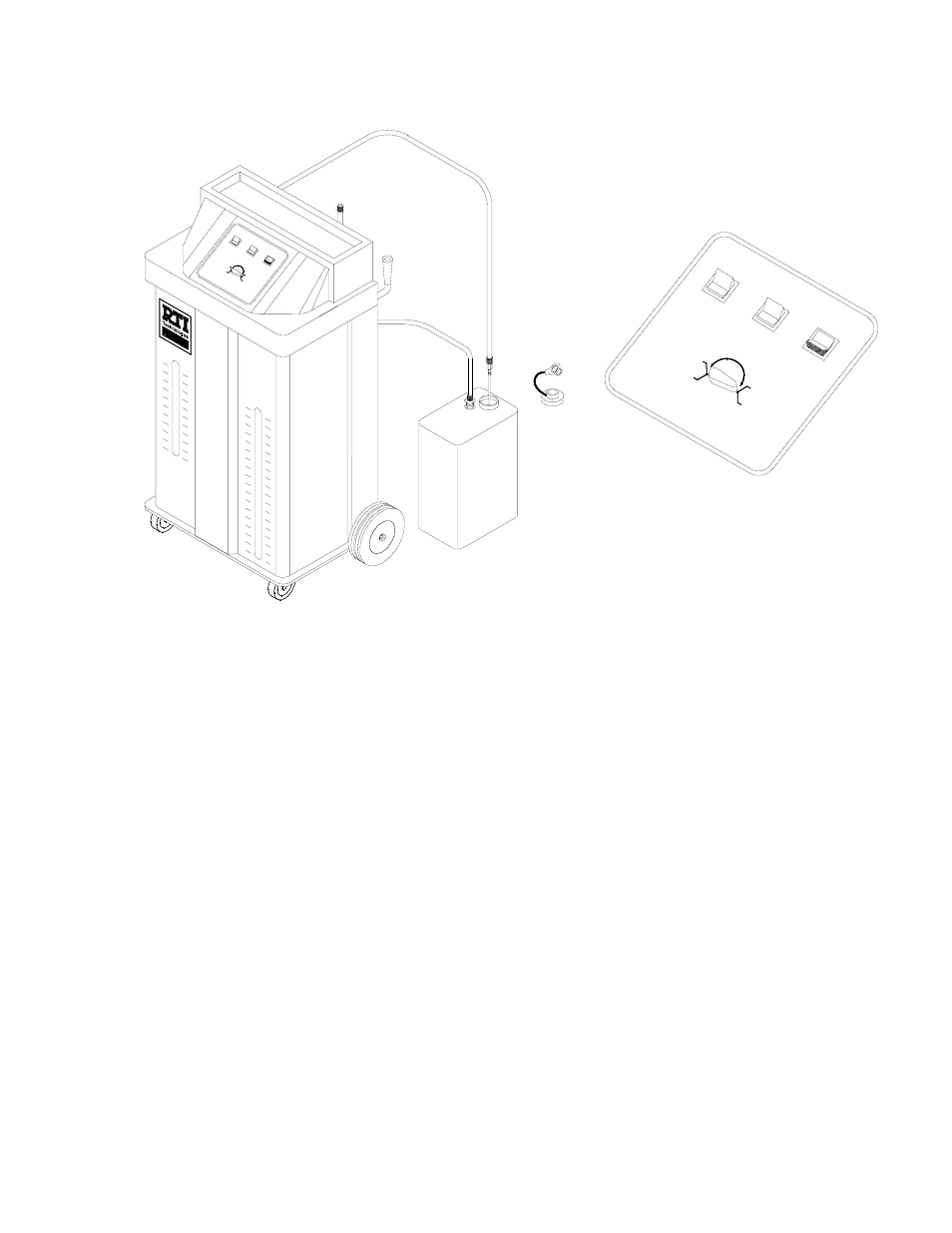

CHANGING COOLANT TYPE
9. Press the top of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch to start the pump.
10. Insert the Wand in the fill port of the New Coolant Tank. Open the valve on the
Wand.
11. The pump will prime and hoses will fill with the new coolant.
12. Close the valve on the Wand when new coolant starts flowing.
13. Press the bottom of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch to turn off the pump.
14. Place the cap on the New Coolant Tank and slide it into the MCX-1.
