. Displaying Image Server Information
You can display image server information.

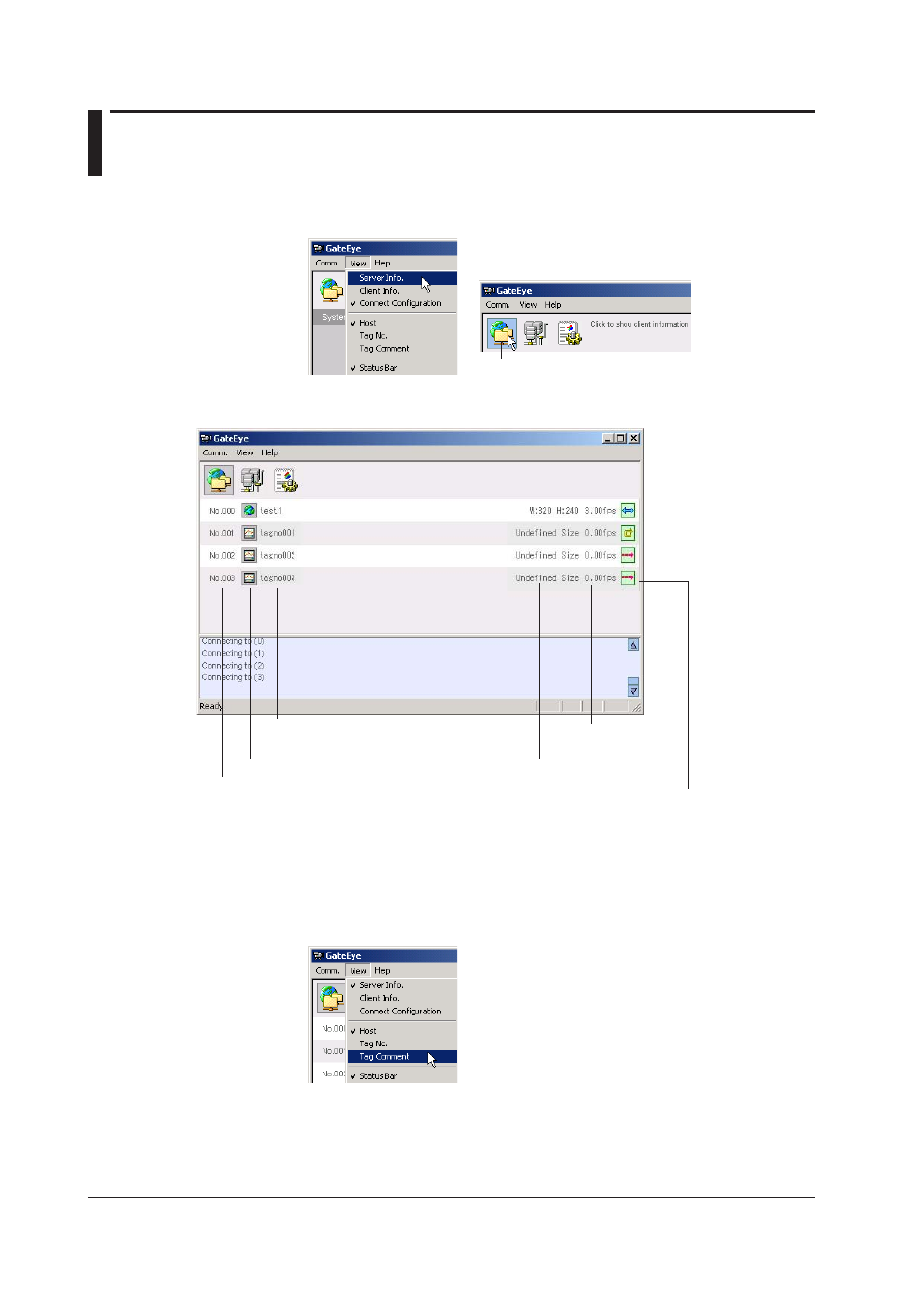

1. Choose View > Server Info. from the menu bar, or click the Server Info button.
Server info button
Connection information is displayed.
Displays the host, tag, or tag comment
entered in setting information
Protocol type
Setting information number
Communication status
Blue: Connected
Yellow: Retrying connection
Red: Connection failed (not connected)
Screen acquisition
speed
Size of acquired image
(in units of dpi)
Displaying the Host, Tag, or Tag Comment of the Target Device
1. Click View on the menu bar and select the host, tag,or tag comment.
The selected item is displayed.
