Operations on the CX1000/CX2000
With the functional changes, the operations on the CX1000/CX2000 change as follows:
Event Output Setting in Basic Control Settings (New Operation)
Select Common or Separate by carrying out the procedure described below.
• Common (factory default setting)
Set a common event output setting for all program patterns.
• Separate
Set the event output for each program pattern.
Displaying the Setting Display
On the CX2000
Press the keys in the following sequence:
MENU key (switch to the setting mode (control)) > Hold down the FUNC key for 3
seconds (switch to the basic setting mode) > #10 soft key (select [Control]) > #2
soft key (select [DI/DO/SW-registration, AUX (Alarm mode...)])

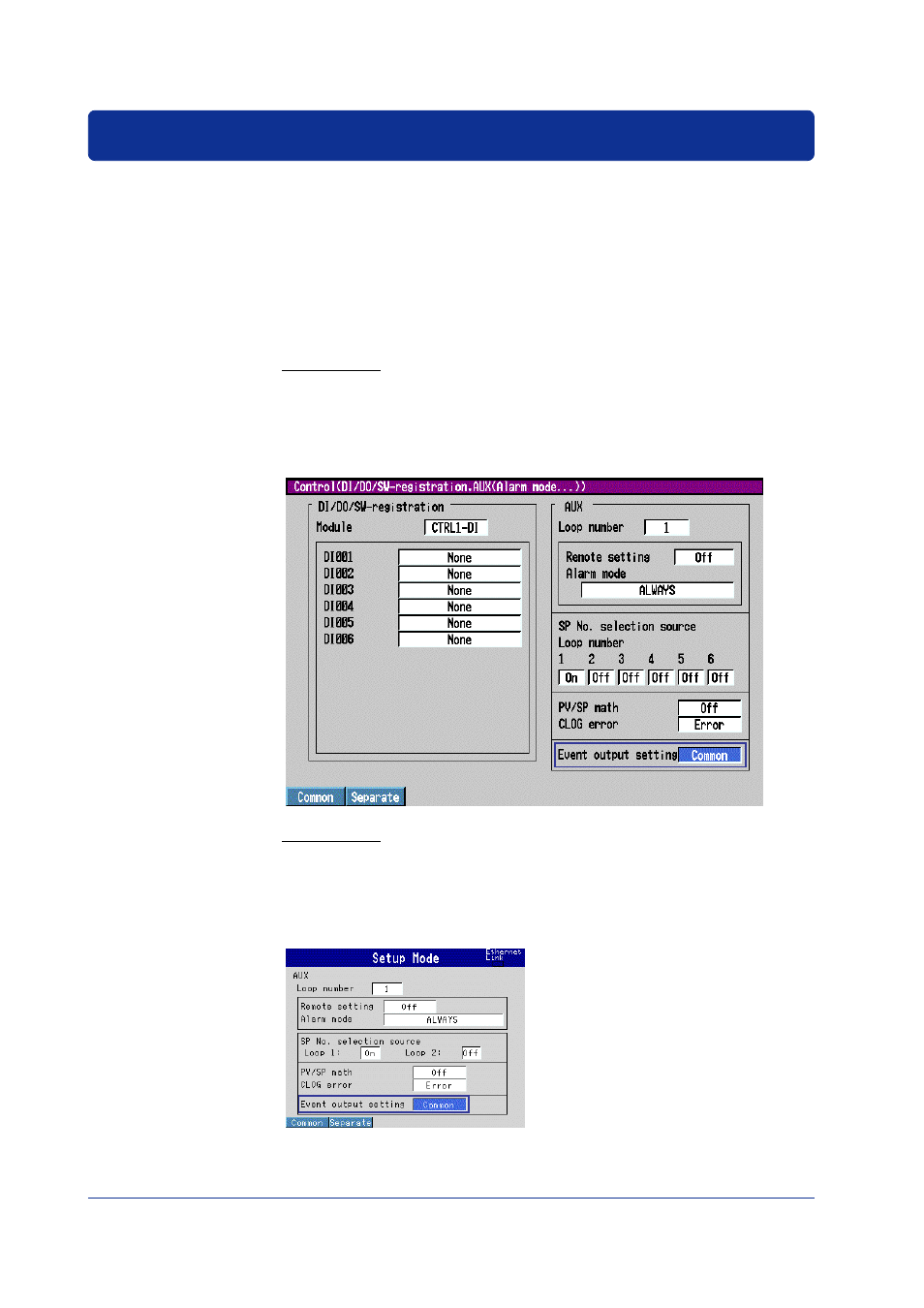

From the operation display, use the above keys to open the following setting display.
On the CX1000
Press the keys in the following sequence:
MENU key (switch to the setting mode (control)) > Hold down the FUNC key for 3
seconds (switch to the basic setting mode) > #12 soft key (select [Control]) > #4
soft key (select [AUX (Alarm mode...)])
From the operation display, use the above keys to open the following setting display.
