<1. Wiring and Installation>

6

IM 12A01A02-12E

4th Edition : Sep. 3, 2013-00

1.3.5

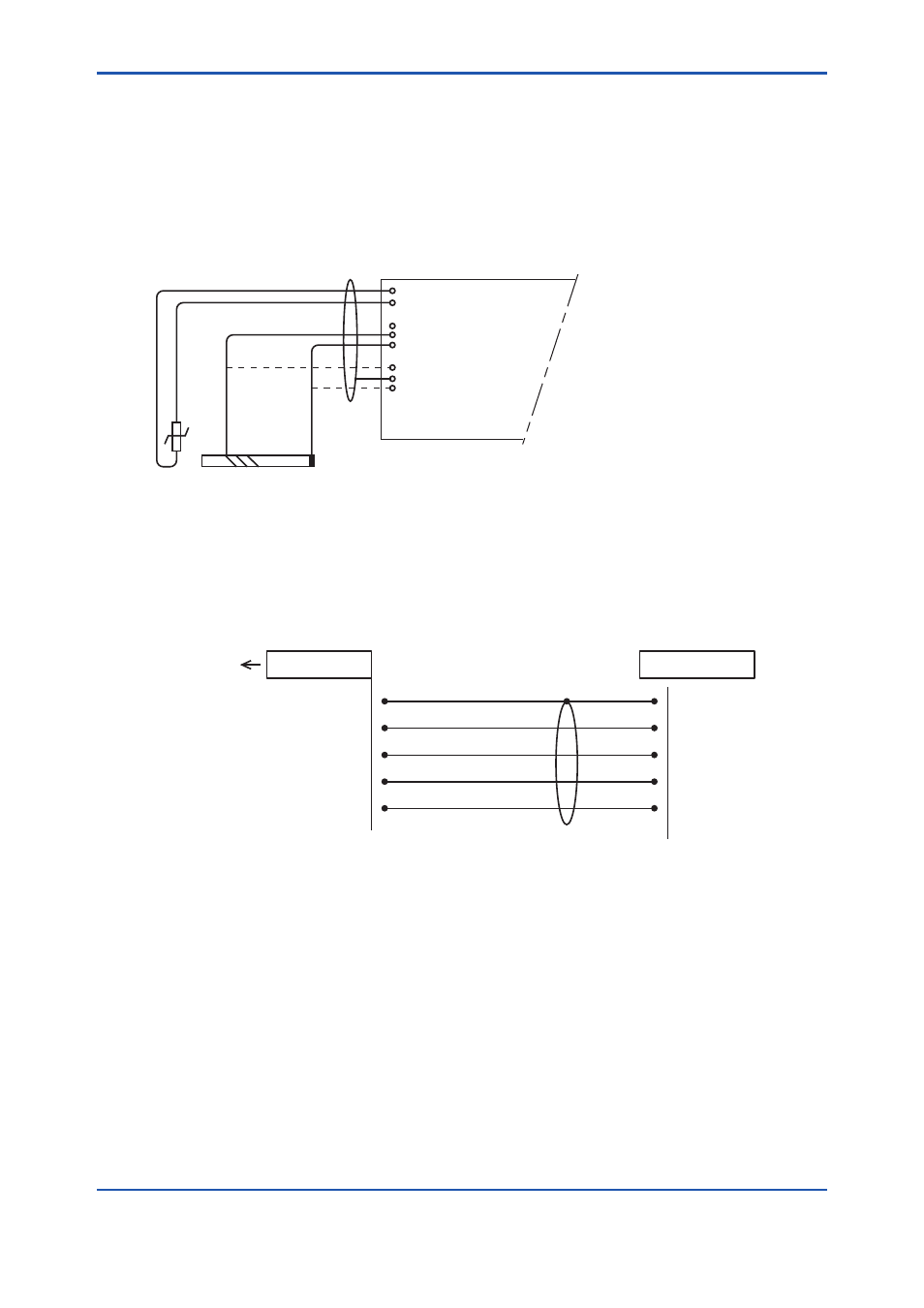

DO Measurement

The input module for DO measurement is suitable for different types of DO sensors:

i. Galvanic sensors like model DO30G
ii. Polarographic sensors like HAMILTON’S Oxyferm and Oxygold

The connection is as follows:

11 TC +

TC -

+ anode galvanic

- cathode galvanic

+ anode polarographic

shield

- cathode polarographic

12
16

13

18

14

17

15

The DO30G sensor comes with integral cable and the wires are labeled with the corresponding

terminal numbers.

1.3.6

SENCOM pH/ORP Measurement

FU20F sensors are connected to the module as follows:

4

M9 Connector

ToFU20F

Input

82 Shield
83 Data+
84 Data-
86 Supply Gnd
87 Supply

1
2
5
6
