<1. Wiring and Installation>
5
IM 12A01A02-12E
4th Edition : Sep. 3, 2013-00
1.3.3
SC Measurement

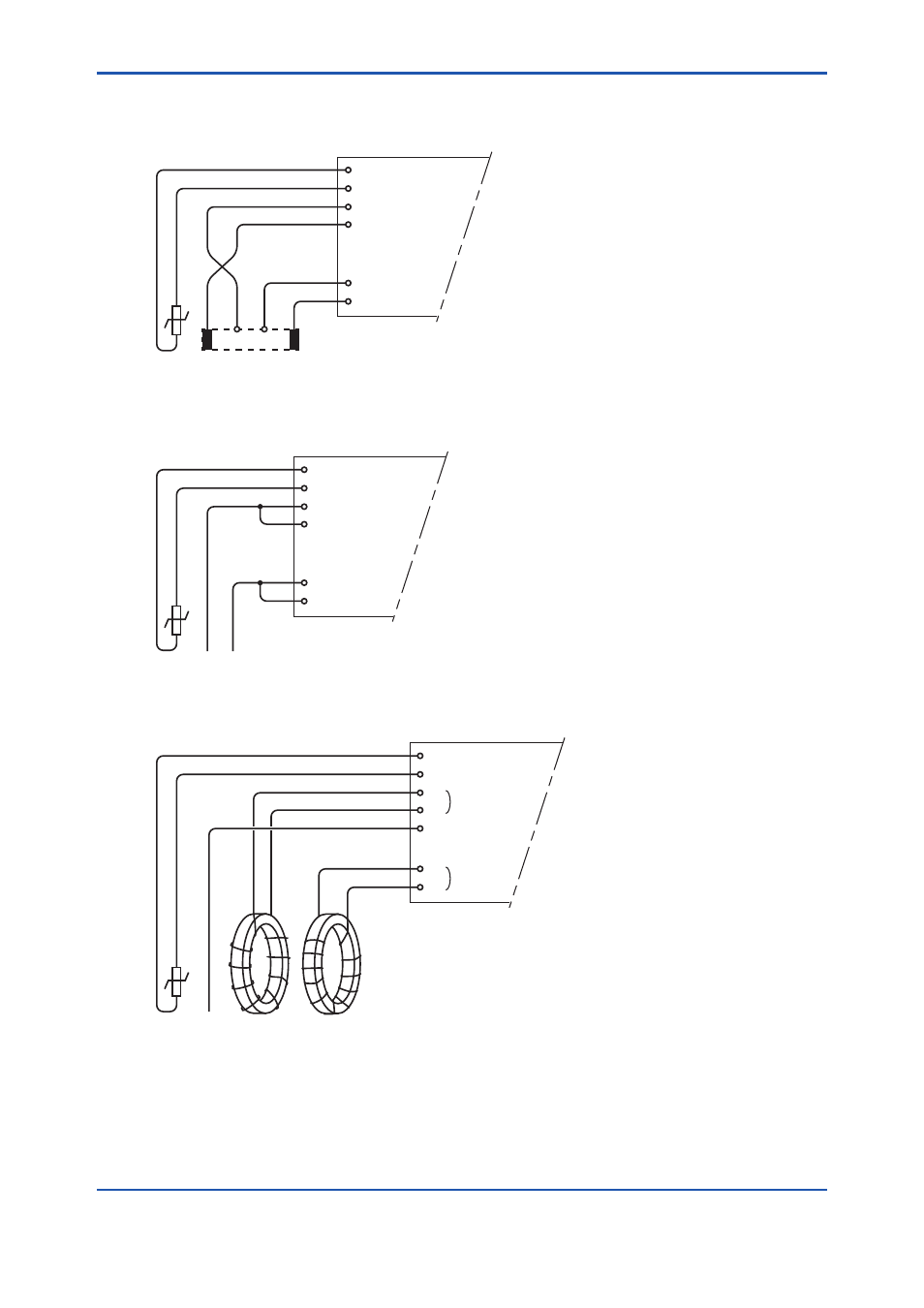

Contacting Conductivity, SC, sensors are connected to the module as follows:
11 +
-
V-
i-
Temp
V+
i+
12
13
14
15
16
The above diagram shows wiring for 4-electrode conductivity sensors, such as SC42-SP34
large bore series. For 2-electrode conductivity sensors, such as SC42-SP36 small bore series,
jumpers must be installed between terminals 13-14 and between terminals 15-16, as shown in
the diagram below.
11 +
-
V-
i-
Temp
V+
i+
12
13
14
15
16
1.3.4
ISC Measurement
ISC40 sensors are connected to the module as follows:
11 +
-
Temp
Receive coil
Drive coil
12
13
17
15
16
14 Sensor shield
(internal)
The sensors are supplied with integral cables and each individual wire is marked with the
corresponding terminal numbers.
