<7. Setting Parameters>
7-19
IM 01C50E01-01EN
Table 7.4
Diagnostic Results Summary
Diagnostic Status
Contents
Alert Type
NAMUR
NE107
Categor
Diagnostic Status Detail
Description
Faults in electronics
127
F
AMP ERR
Amplifier failure
MEMORY ERR
Memory failure
FlashROM ERR
FlashROM failure
ADC ERR
ADC failure
Faults in sensor or actuator
element
126
F
SENSOR1 FAILURE
Sensor 1 burnout
SENSOR2 FAILURE **
Sensor 2 burnout
TERM SNS FAILURE
CJC sensor burnout
Installation, calibration
problem
125
C
SENSOR1 SPAN ADJ ERR
Sensor 1 faulty input of span
adjustment value
SENSOR1 ZERO ADJ ERR
Sensor 1 faulty input of zero
adjustment value
SENSOR2 SPAN ADJ ERR ** Sensor 2 faulty input of span
adjustment value
SENSOR2 ZERO ADJ ERR ** Sensor 2 faulty input of zero
adjustment value
Out of service
124
C
AI1 O/S MODE
AI1 O/S Mode
AI2 O/S MODE **
AI2 O/S Mode
Outside sensor limits
123
O
---
---
Environmental conditions
out of device specification
122
O
SENSOR1 TEMP HI
Sensor 1 temperature higher
limit scale out
SENSOR1 TEMP LO
Sensor 1 temperature lower
limit scale out
SENSOR2 TEMP HI **
Sensor 2 temperature higher
limit scale out
SENSOR2 TEMP LO **
Sensor 2 temperature lower
limit scale out
AMB TEMP HI
Ambient temperature higher
limit scale out
AMB TEMP LO
Ambient temperature lower
limit scale out
Fault prediction:
Maintenance required
121
M
FIRMWARE CONDITION
CHECK
Firmware internal error
Power is critical low:
maintenance need short-
term
120
M
CRITICAL LOWBAT **
Deep sleep due to low battery
LOWBAT FOR DEEPSLEEP * Deep sleep due to low battery
Power is low: maintenance
need mid-term
119
M
LOWBAT
Low battery
Software update incomplete
118
C
---
---
Simulation is active
117
C
AI1 SIMULATE MODE
AI1 SIMULATE Mode
AI2 SIMULATE MODE **
AI2 SIMULATE Mode
* :
Applicable for single input type with integral antenna, Amplifier housing code 7.
** : Applicable for dual input type with detachable antenna, Amplifier housing code 8 and 9.
7.4.3 Checking with Integral Indicator
NOTE
If an error is detected by running self-diagnostics,
an error number is displayed on the integral
indicator. If there is more than one error, the error
number changes at three-second intervals. See
table 8.4 regarding the alarm codes.
F0706.ai
Self-diagnosis Error
(Transmitter error)

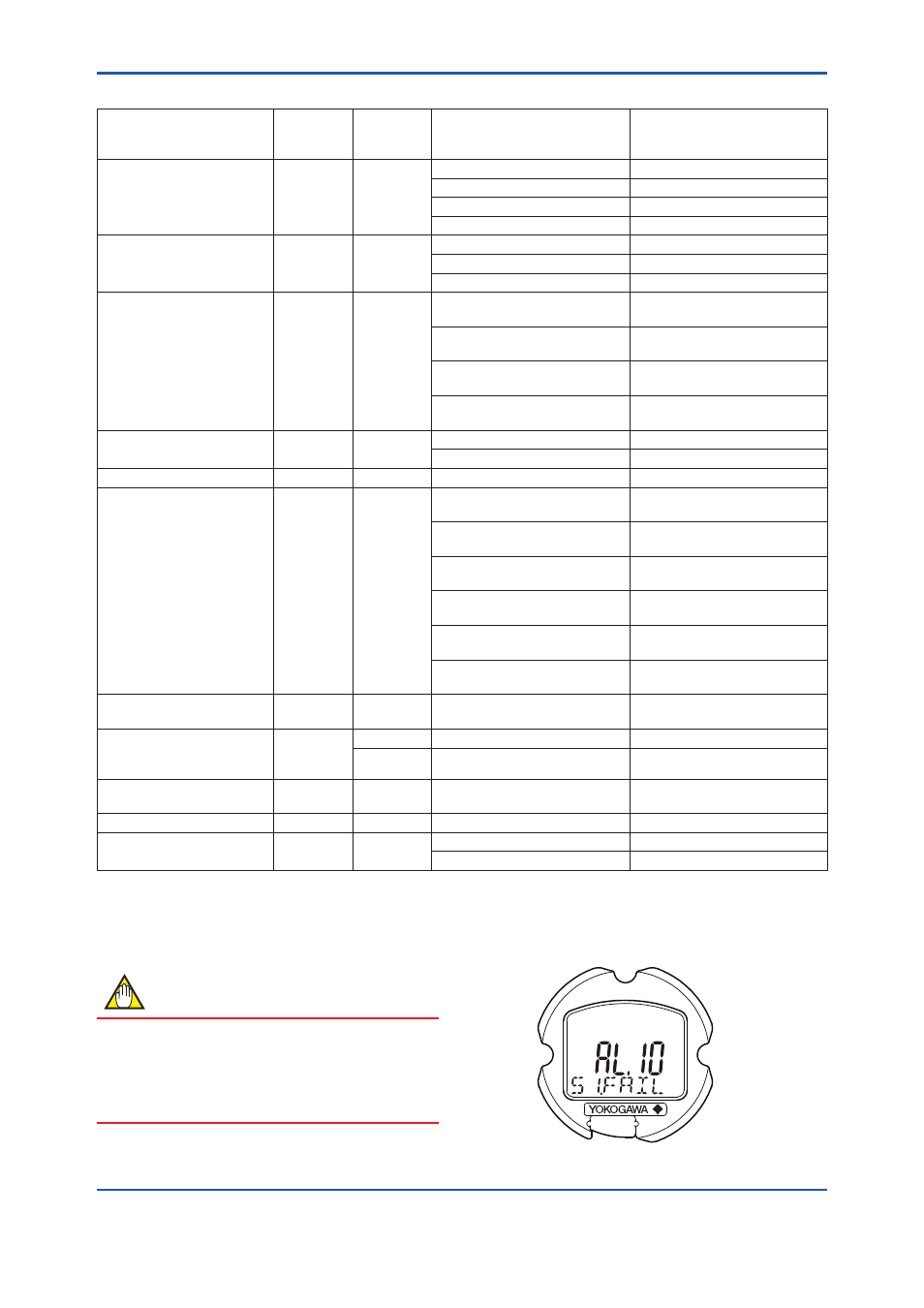

Figure 7.4
Error Check with Integral Indicator
