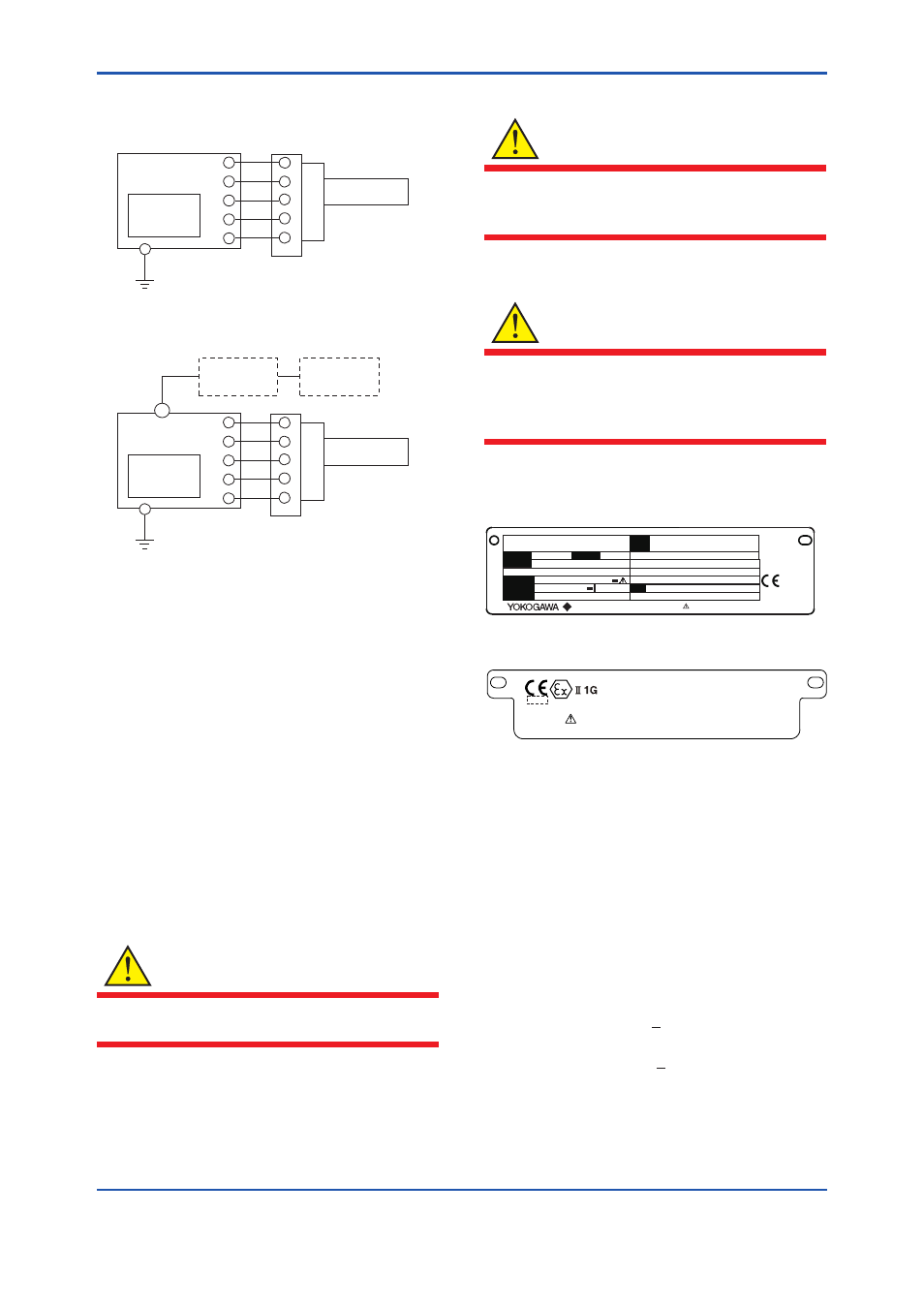

<2. Notes on Handling>
2-7
IM 01C50E01-01EN
Temperature
Transmitter
Battery
pack
1
2
3
4
5
1
2
3
4
5 Temperature
Transmitter
Battery
pack
Temperature Sensor (*1)
Amplifier housing code 8 and 9
Hazardous area
Antenna
(*1)
Arrester
(*1, *2)
Temperature Sensor (*1)
(One or Two sensors)
*1: These apparatus are simple apparatus.
*2: Arrester may not be connected.
Antenna Connector
F0206.ai
[Control Drawing]
Amplifier housing code 7
Hazardous area
Note 4. Battery Pack
• Use only YOKOGAWA battery pack
F9915MA or F9915NS.
Note 5. Special conditions for Safe Use
• In case of the aluminum enclosure, if the
Transmitter is mounted in an area where the
use of category 1 G apparatus is required,
it must be installed such, that, even in the
event rare incidents, ingition source due to
impact and friction sparks are excluded.
• For application in an area where the use
of category 1 G apparatus is required,
electrostatic charge on the non-metallic
parts of the Temerature Transmitter shall be
avoided
WARNING
Potential electrostatic charging hazard - secure
distance of 100mm from antenna.
(2) Operation
WARNING
Take care not to generate mechanical sparking
when access to the instrument and peripheral
devices in a hazardous location.
(3) Maintenance and repair
WARNING
The instrument modification or parts replacement
by other than an authorized Representative of
Yokogawa Electric Corporation is prohibited and
will void the certification.
(4) Name Plate
• Name Plate
: Refer to USER'S MANUAL. Made in Japan
TOKYO 180-8750 JAPAN
MODEL
SUFFIX
SUPPLY
OUTPUT
MWP
mA DC
V DC
STYLE
CAL
RNG
NO.
F0207.ai
TEMPERATURE
TRANSMITTER
• Tag plate for intrinsically safe type
F0208.ai
POTENTIAL ELECTROSTATIC CHARGING HAZARD - SECURE DISTANCE
OF 100MM FROM ANTENNA.
USE ONLY BATTERY PACK YOKOGAWA F9915MA OR F9915NS.
POTENTIAL ELECTROSTATIC CHARGING HAZARD - SEE USER'S MANUAL.
WARNING
No. KEMA 10ATEX0163 X
Ex ia IIC T4 Ga
ENCLOSURE: IP66/IP67
Tamb.: -50 TO 70°C
Sensor input circuit (Terminal 1 to 5)
Uo=6.6V, Io=66mA, Po=109mW, Co=22μF, Lo=8.1mH
*3
MODEL: Specified model code.
SUFFIX: Specified suffix code.
STYLE: Style code.
SUPPLY: Supply voltage.
OUTPUT: Output signal.
CAL RNG: Calibration range.
NO.: Serial number and year of production *1 .
TOKYO 180-8750 JAPAN: The manufacturer
name and the address *2 .
*1: The first digit in the final three numbers of the serial
number appearing after “NO.” on the nameplate indicates
the year of production. The following is an example of a
serial number for a product that was produced in 2010:
91K819857 032
↑
The year 2010
*2: “180-8750” is a zip code which represents the following
address.
2-9-32 Nakacho, Musashino-shi, Tokyo Japan
*3: The identification number of Notified Body.
