<4. Installation>
4-2
IM 01C50E01-01EN

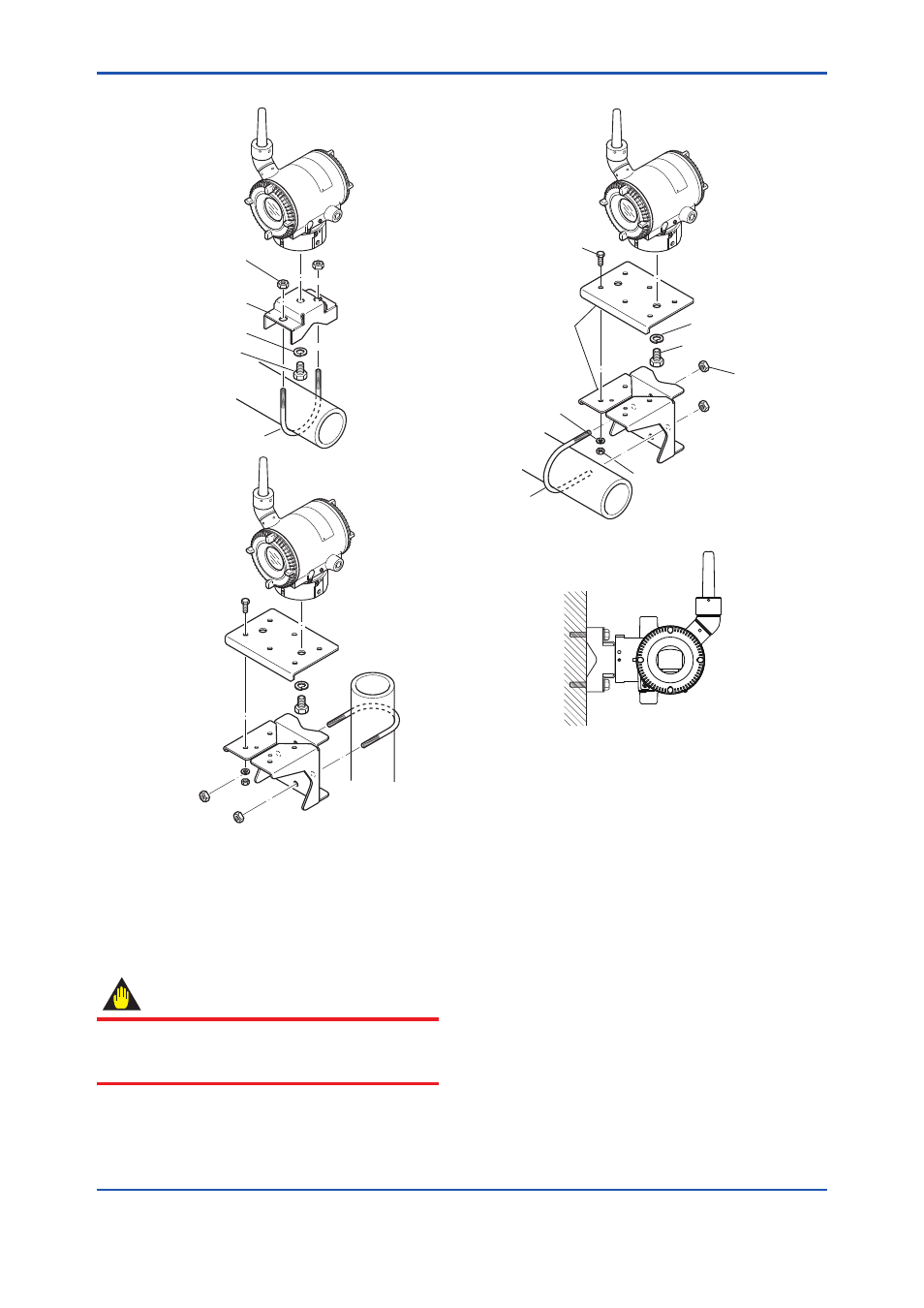

F0401.ai
Horizontal Pipe
Mounting
U-bolt nut
Horizontal pipe
mounting bracket
Spring washer
Transmitter
fastening bolt
U-bolt
(When using a horizontal
pipe mounting bracket)
Vertical Pipe
Mounting
U-bolt
U-bolt nut
Vertical pipe
mounting bracket
Bracket
fastening bolt
Spring washer
Spring washer
Bracket fastening bolt
Transmitter fastening bolt
(When using a vertical
pipe mounting bracket)
Wall
Mounting
Note: Wall mounting bolts are user-supplied.
Figure 4.1 Transmitter Mounting
4.3 Changing the Direction of
Integral Indicator
IMPORTANT
Always turn OFF power, remove a transmitter to
non-hazardous area before disassembling and
reassmbling an indicator.
An integral indicator can be rotated in four positions
at 90°. Follow the instructions in section 8.4.1 for
removing and attaching the integral indicator.
