<5. Wiring>
5-4
IM 01C50E01-01EN
 Mounting Procedure of External
Antenna
1. Fix the bracket by U-bolt and nut to 50 mm (2-
inch) pipe.
2. Fix the antenna extension cable to the bracket
1 using the provided nut with a torque of 6 to
7 N∙m as shown in the Figure 5.6. Use the nut
which is attached to the antenna extension
cable.
3. Screw the antenna into the antenna connector
of the antenna extension cable on the bracket
1.
Tighten the antenna connector with a torque of
2 to 3 N∙m.
4. Protect the connection as necessary. For
details of the protection, see “5.5 Mounting
Antenna and Wiring.”
5.5.2.2 Wiring of Antenna Extension Cable
1. Use the provided antenna extension cable
to connect the antenna connector with the
external antenna. Tighten the connector of the
antenna extension cable with a torque of 2
to 3 N∙m. The minimum bending radius while
checking the wiring position should be more
than 200 mm.
2. When using two extension cables, the provided
arrester should be inserted between these
cables.
3. Before the wiring work, confirm the polarities
(male/female) of the connectors of antenna,
extension antenna cable, and arrester. Tighten
the connector of the antenna extension cable
with a torque of 2 to 3 N∙m.
4. Protect the connectors of antenna, extension
antenna cable, and arrester as necessary. See
“6.1 Mounting Antenna and Wiring.”
5. Fix the extension antenna cable to the
appropriate structure to protect the cable from
the vibration, wind, and so on. The minimum
bending radius for fixing in the state maintained
for a long period should be more than 80 mm.

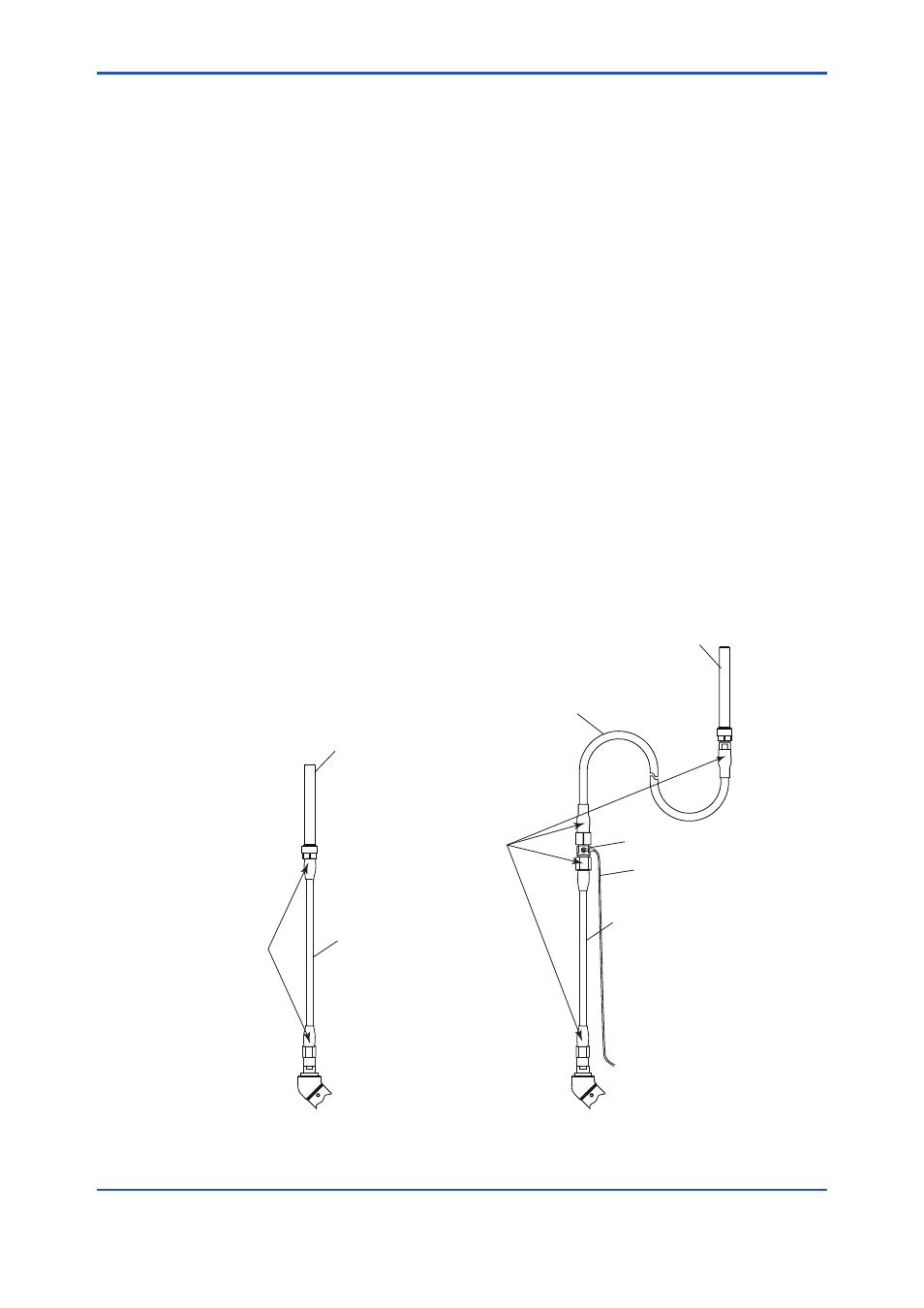

Transmitter body
Grounding cable
Protect by self-bonding tape
F0507.ai
Antenna extension cable 2: 10 m
Antenna
Antenna
Antenna extension cable 1: 3 m
Antenna extension cable 1: 3 m
Protect by self-bonding tape
Transmitter body
Arrester
Figure 5.7 Wiring the Antenna Extension Cable
