WATLOW Series 92 User's Manual
3

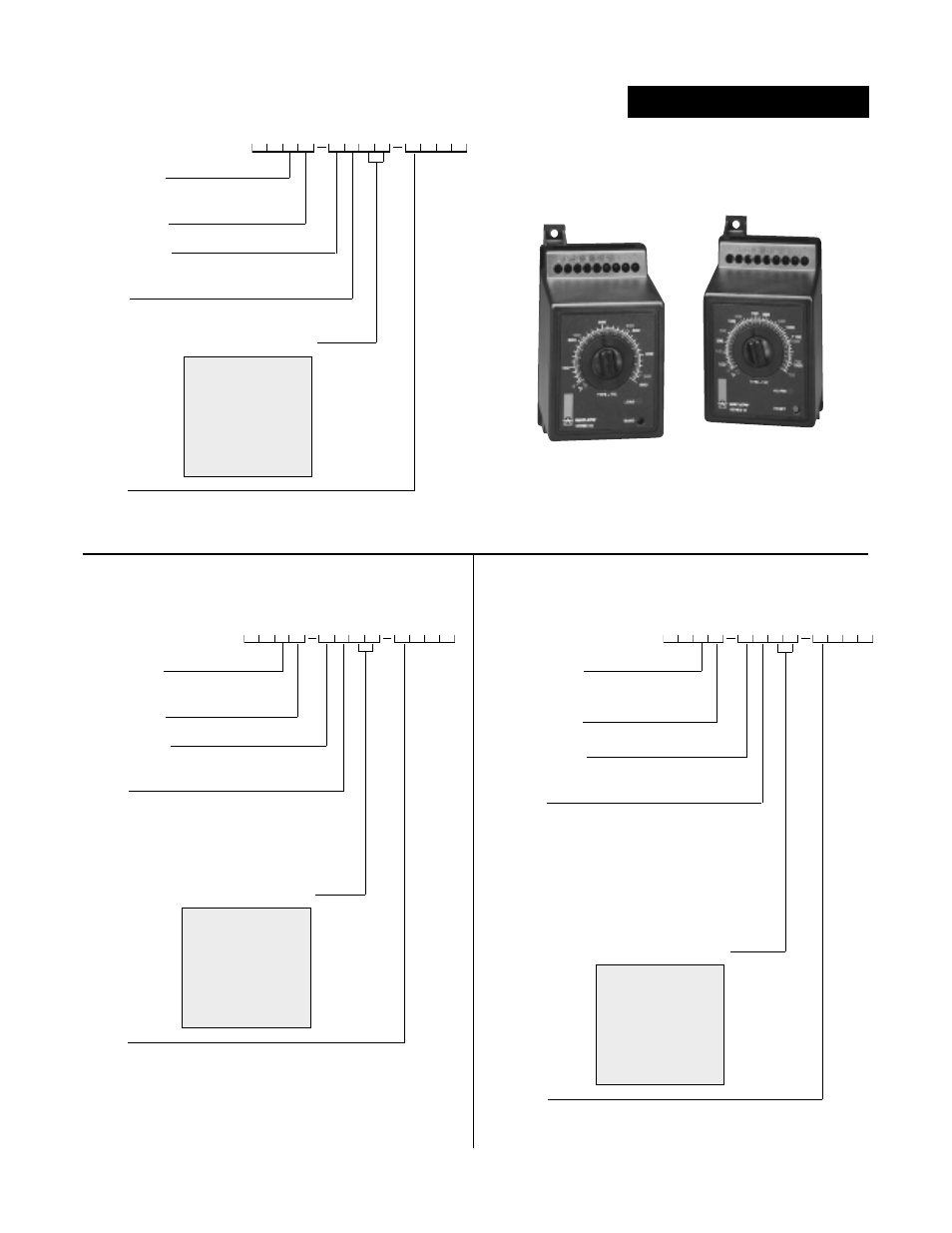

Ordering Information
On/Off
Line Voltage
A = 120VAC
B = 208/240VAC
Control Type
1
= ON/OFF control
Control Mode
1
= Heat
2 = Cool
Output
B = Solid state relay, Form A, 0.5A
C = Switched DC, open collector, non-isolated
D = Electromechanical relay, Form C, 5A
(Warranted to 100,000 cycles)
K = Solid state relay, Form A, 0.5A,
without contact suppression
Input and Range See Page 2 for ranges
J1 = J t/c
J2 = J t/c
K1 = K t/c
T1 = T t/c
P1 = RTD
Setpot
0
= Integral
1 = Remote* (order setpot separately, see above)
PI
Line Voltage
A = 120VAC
B = 208/240VAC
Control Type
2
= PI control
Control Mode
1
= Heat
2 = Cool
Output
B = Solid state relay, Form A, 0.5A
C = Switched DC, open collector,
non-isolated
D = Electromechanical relay, Form C, 5A
(Warranted to 100,000 cycles)
K = Solid state relay, Form A, 0.5A
without contact suppression
V = Variable time base, open collector, non-
isolated Only available in heat mode.
Input and Range See Page 2 for ranges
J1 = J t/c
J2 = J t/c
K1 = K t/c
T1 = T t/c
P1 = RTD
Setpot
0
= Integral
1 = Remote* (order setpot separately, see above)
9 2 0 0 0 2 9 1 0 0 0 2
Limit
Line Voltage
A = 120VAC
B = 208/240VAC
Control Type
3
= Limit
Control Mode
1
= High (heat)
2 = Low (cool)
Output
D = Electromechanical relay, Form C, 5A
(Warranted to 100,000 cycles)
Input and Range See Page 2 for ranges
J1 = J t/c
J2 = J t/c
K1 = K t/c
T1 = T t/c
P1 = RTD
Setpot
0
= Integral
1 = Remote* (order setpot separately, see above)
9 3 0 0 0 D 2
Separate Remote
Set Point Assembly
A006-0 _ _ _
5 1 5
5 1 6
5 1 7
5 1 8
5 1 9
Separate Remote
Set Point Assembly
A006-0 _ _ _
5 1 5
5 1 6
5 1 7
5 1 8
5 1 9
Separate Remote
Set Point Assembly
A006-0 _ _ _
5 1 5
5 1 6
5 1 7
5 1 8
5 1 9
