90 WATLOW Series 1500 User's Manual Quick Reference
SP = Set Point Step:
Program set points, events
and time.
JL=Jump Loop Step:
Program step # to jump to,
and # of times to repeat
that step.
WT=Wait Step:
Program a step to wait for…
Ch-1 condition, and/or
CH-2 condition, and/or
an event, and/or a real time
(hr, min, sec).
NX= Next Step:
In sequence or any next step.
Series 1500 Quick Reference
ENTER
ENTER
Change Data Mode (CHG DATA)
MODE
FCTN
ENTER
Monitor Data Mode (MNTR DATA)
Monitoring a Jump Loop (JL)
Step in a running program.
Change Parameter
Mode (CHG PARA)
Prompt Key

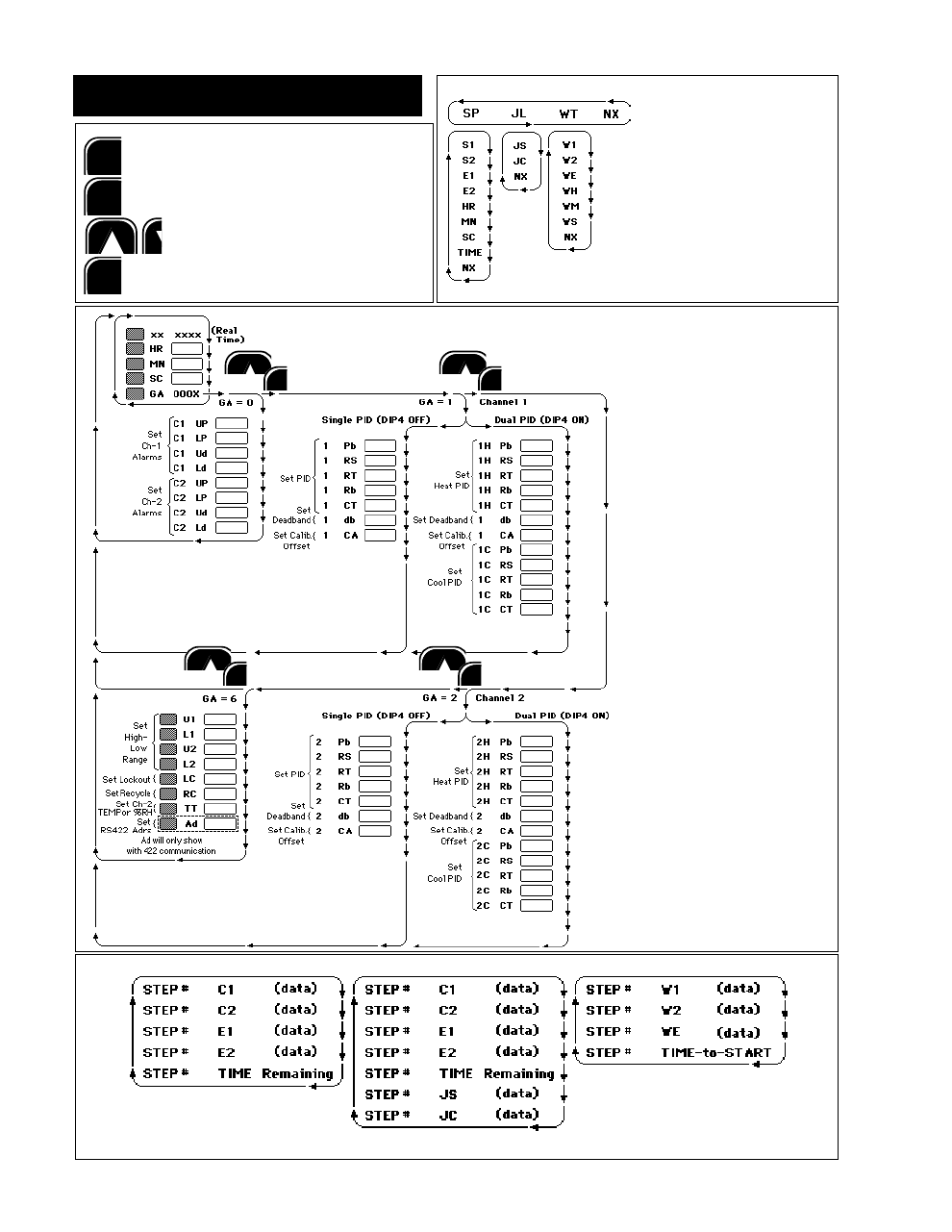

How to Get Around in the
Series 1500 Software
ENTER ENTER
Monitoring a Set Point (SP)
Step in a running program.
Monitoring a Wait (WT)
Step in a running program.
ENTER ENTER
U1=Ch-1 Upper Set Point Limit
L1=Ch-1 Lower Set Point Limit
U2=Ch-2 Upper Set Point Limit
L2=Ch-2 Lower Set Point Limit
GA=Guarded Access
RC=Recycle Option
Pb=Proportional Band
RS=Reset
RT=Rate
Rb=Rate Band
db=Dead Band
CT=Cycle Time
CA=Calibration Offset
TT=Temp-Temp (Ch-1/Ch-2)
UP=Upper Process Alarm Point
LP=Lower Process Alarm Point
Ld=Lower Deviation Alarm Point
Ad=Adress #, RS-422 only
HR=Hours
MN=Minutes
SC=Seconds
C1=Channel 1
C2=Channel 2
Selects MNTR DATA,
CHG DATA or CHG
PARA Mode.
Selects any prompt in a mode.
Selects values for the DATA display.
Places values from the DATA display into memory.
