WATLOW DIN-A-MITE Style C User's Manual

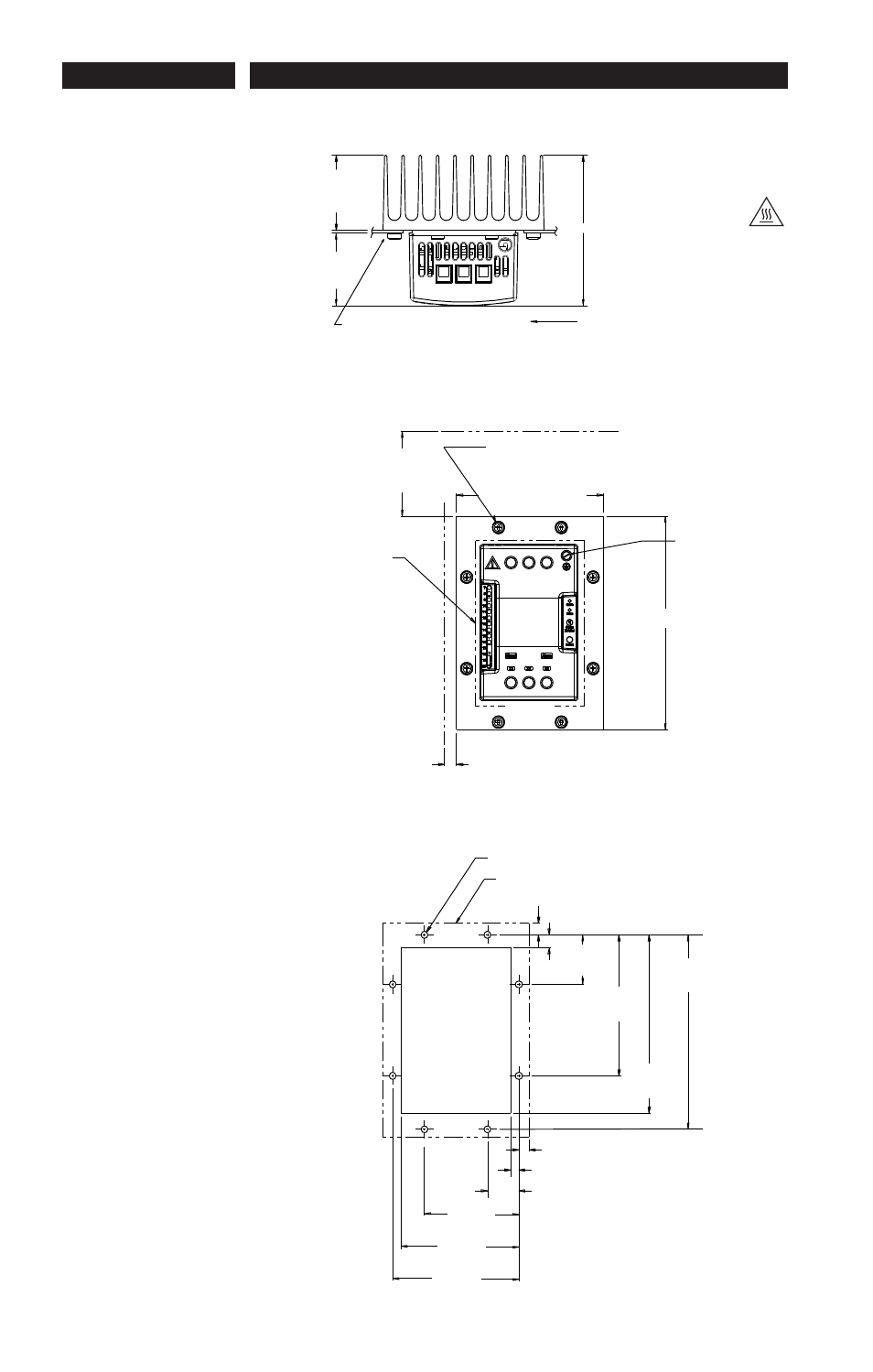

Unit Dimensions - Through-Wall (Cabinet Panel)

з
У

Mounting

Mounting procedure
for UL® 50 Type 4X
Enclosure and UL® /
ANSI 12.12.01 Through-
wall mount models

Materials included:

(1) Silicone gasket

(8) M5 screws and

lockwashers

(1) DIN-A-MITE C

through-wall

1. Drill and cut the

panel as shown in
the dimensioned
drawing at right.

2. Remove the

mounting screws
from the heatsink.

3. Peel off the

protective film from
the silicone
gasket. Stick the
gasket to the
heatsink so the
gasket holes line up
with the screw holes
in the heatsink.

4. Mount the heatsink

vertically. Torque to
2.26 to 2.82 Nm (20
to 25 in-lb).

Top

114 mm

(4.50 in)

57 mm (2.25 in)

outside

(any gauge)

55 mm (2.17 in)

inside

(12 gauge)

Front panel is touch-safe,
no clearance is required.

Sheet Metal (12 gauge)

Ground lug (2-8 GA

M5 (0.8 by 10 mm) (8)
M5 Internal Tooth Lock Washer (8)
included

178 mm (7.00 in)

122 mm (4.81 in)

Panel
Opening
Outline

102 mm (4.0 in) minimum
clearance for air flow
(top and bottom)

10 mm (0.4 in) minimum
clearance for air flow
(both sides)

Front

Typical Panel Opening

Heatsink Outline

7.0 mm (0.275 in)

26.3 mm (1.034 in)

78.8 mm

(3.103 in)

98.1 mm

(3.862 in)

105.1 mm

(4.137 in)

10.8 mm (0.425 in)

41.3 mm

(1.625 in)

117.5 mm

(4.625 in)

148.6 mm

(5.850 in)

161.9 mm

(6.375 in)

Drill 5.8 mm (0.228 in) (8)

8.6 mm (0.338 in) Reference

9.5 mm (0.375 in) Reference
