PS-4700 Series (Atom Z510 Pre-installed Model) User Manual
31

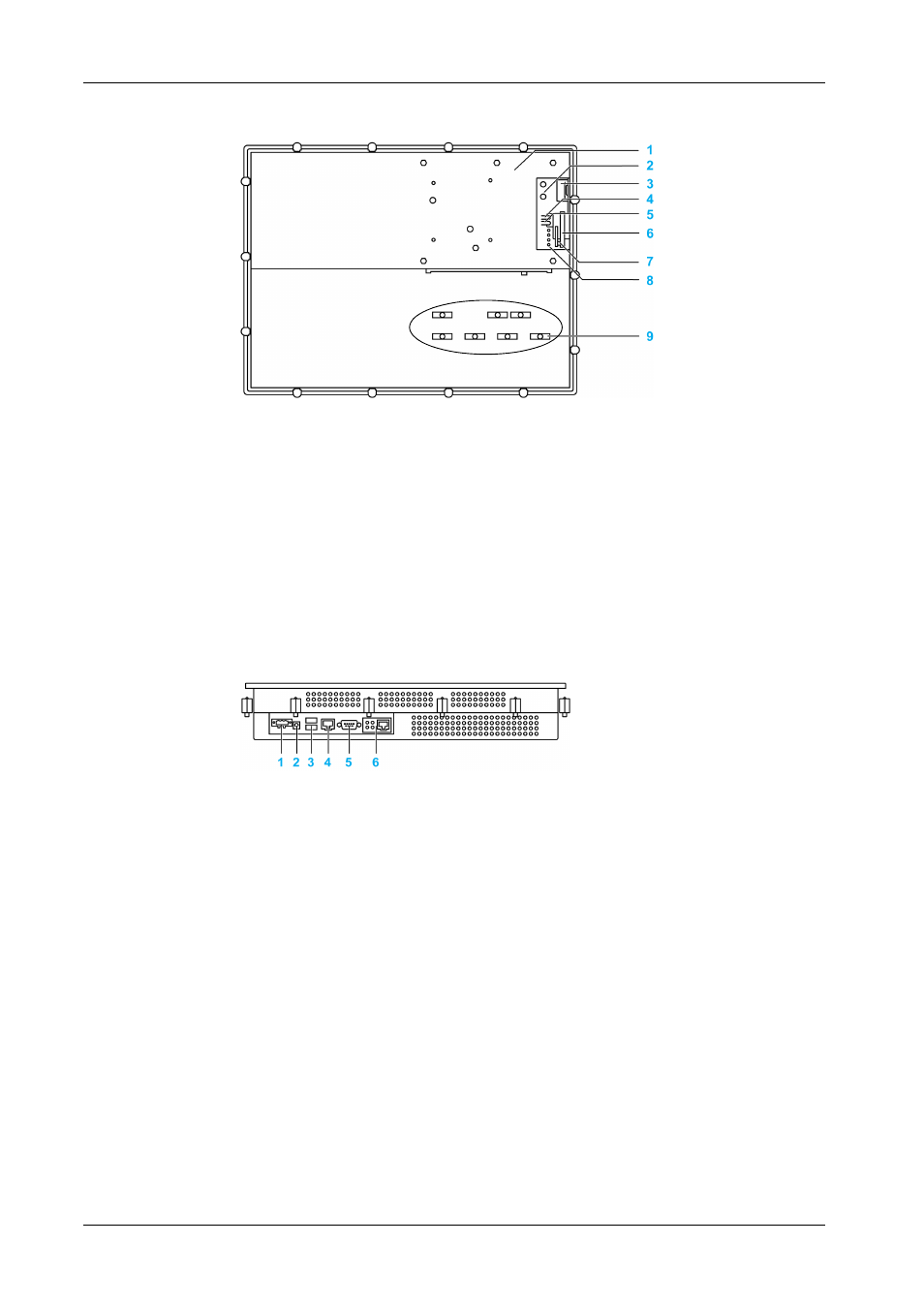

Rear View
1 Industrial Personal Computer cover
2 Mode/Node Switch *1
3 Battery
4 Power button
5 Reset button
6 Compact Flash slot CF1/Connection via IDE-PATA
7 SD Memory card slot
*2
8 Status LEDs (page. 32)
9 Cable clamps (7)
*1 Use with the system. Always use at factory default settings.
*2 Not supported.
Bottom View
1 Supply voltage +24 Vdc
2 Ground connection
3 USB1, USB2 (max.1 A)
4 ETH1 (10/100/1000 MBit)
5 COM1
6 ETH2 (10/100/1000 MBit) *1
*1 This is the Ethernet Expansion Board for option.
