2. Spinner assembly installation:
A. Attach heights adjustment bracket (1) to
spreader lower tray using rod hinge (2) and hair
pins.
B. Attach spinner motor assembly (3) to heights
adjustment bracket (1) using ½-13 screws and nuts.
C. If extra clearance required, use upper holes in
heights adjustment bracket.
D. Attach spinner shield (7) to heights adjustment
bracket (1) using 5/16-18 screws and nuts.
E. Attach spinner disk (4) to motor shaft using
clevis pin and cotter pin.

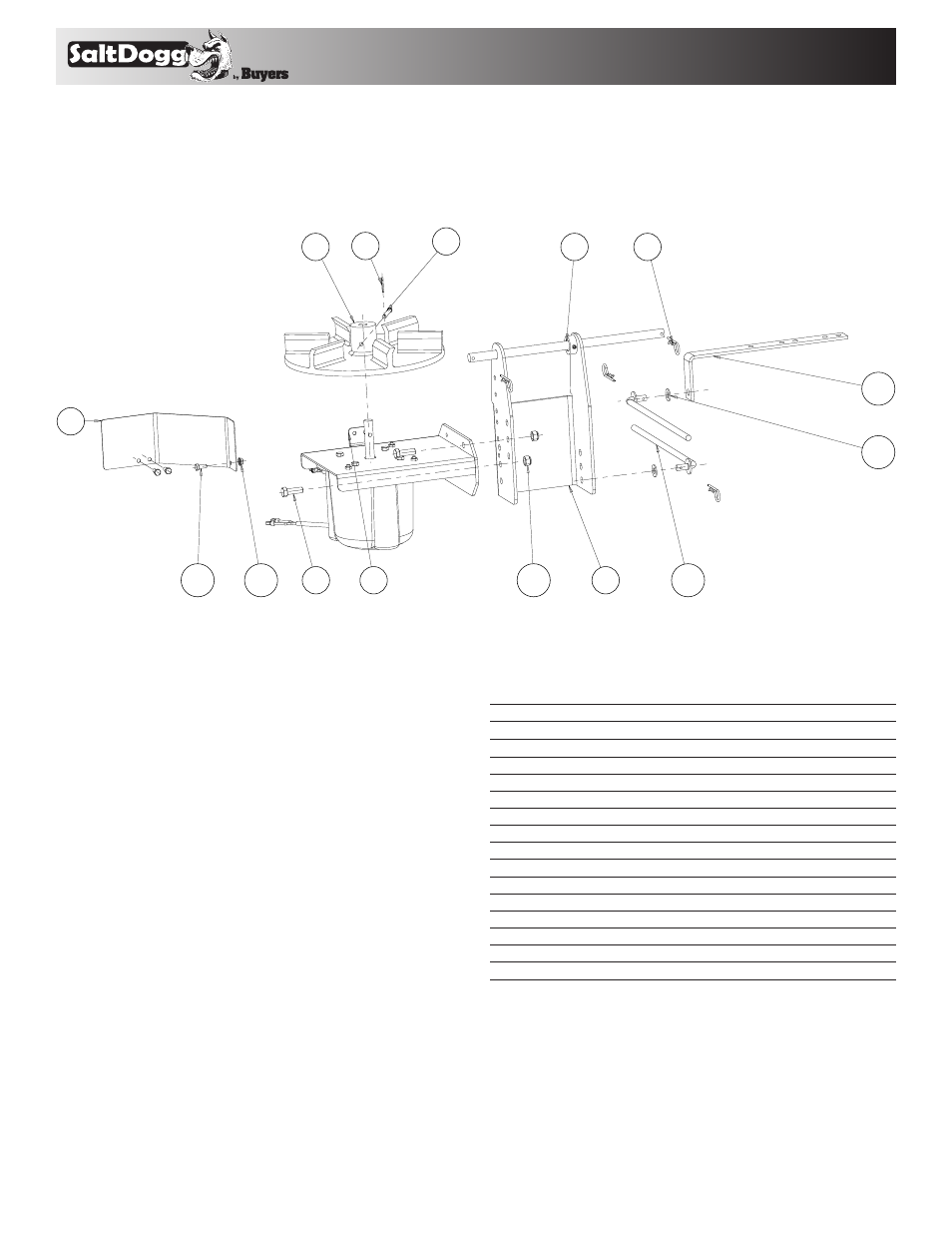

Figure 2
1
2
3
4
5
6
7
8
9 10 11 12 13
14
15
Bill of Materials
1 1 Bracket Heights Adj. Weldment 3017175
2 1 Rod, Hinge 3006646
3 1 Bracket Spinner Motor Assembly 3017176
4 1 Spinner, 14" Poly CCW 3016394
5 1 Pin, Clevis, 5/16 x 2-1/2, .141 Hole ZN –
6 1 Cotter Pin, 1/8 x 1, Zinc –
7 1 Shield Spinner Disk 3017172
8 4 Pin, Hair Cotter 5/32" ZN 3.25 OAL –
9 2 Screw, HHC 1/2-13x1.50 SST –
10 2 Nut, Nylock 1/2-13 Zinc –
11 3 Screw, Hex HD, 5/16-18 x 3/4 GR5 SS –
12 3 Nut, Hex Flange - 5/16-18 SS –
13 2 Weldment, Parallel Linkage 924F0012
14 2 Washer, Flat 1/2 ID SST –
15 1 Angle, Spinner Lug 3006645
item qty. description
