SaltDogg 92420A, -30A Series Under Tailgate Spreader (with Serial No. 4553) - Manual (Page 8)

8
TM
1
2
3
6
7
4 5
8
9
3011293 Rev. A

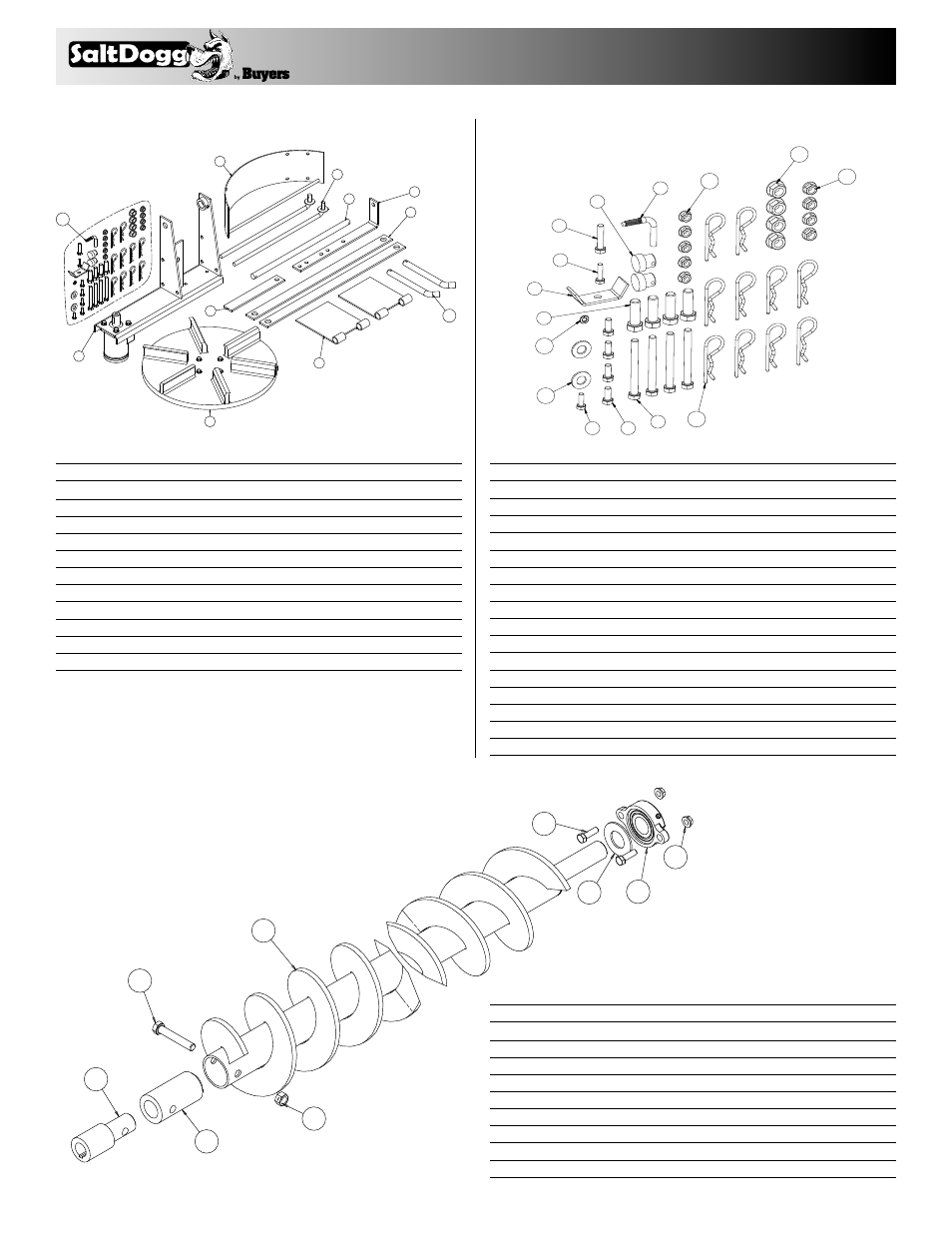

Bill of Materials
1 924F0081 1 Auger
2 9240083 1 Adaptor Sleeve
3 924F0084 1 Adaptor Shaft
4 9240086 1 Bearing
5 9240087 1 Felt Gasket
6 FCS050013300 1 Capscrew
7 92401213 1 Locknut, Reversible Hex
8 FCS038016125 2 Capscrew
9 92401211 2 Nut, Serratted Flange
item part no. qty. description
1
2
5
6
7
9
11
4
8
10
3
1
2
3
4
5 6
7
9
10
11
12
13
15
8
14
Hardware Box Parts List Hardware Bag Contents
Auger Replacement Kit (924F0081AK)
Bill of Materials
1 1 Spinner Frame Assy. 3001471 3006679
2 1 Spinner Shield 924F0015 3006659
3 1 Spinner disk Assy. 3001472A 3001472A
4 2 Linkage Rods, Welded 924F0012 924F0012
5 1 Hinge Rod 924F0018 3006646
6 1 Spinner Lug 924F0013 3006645
7 1 Bar 924F0014 924F0014
8 2 Bar, Hanger Brace 924F0101 3011137
9 2 Detatch Mounting Plate 924F0102 3009526
10 2 Hinge Pin 924F0103 3011139
11 1 Hardware Bag 924F011 3006672
item qty. description carbon stainless
Bill of Materials
1 1 Hose Clamp 924F0118 924F0118
2 2 Pin Brace 9240021B 3000210
3 1 Spinner Lock 92401113 92401113
4 1 Capscrew FCS025020100 FCS025020100SS
5 1 Capscrew FCS025020075 FCS025020075
6 4 Capscrew 9240113 3006721
7 1 Capscrew FCS031018150 FCS031018150SS
8 4 Capscrew FCS038016350 3001249
9 4 Capscrew FCS050013150 3006723
10 10 Hair Pin Cotter HP12 HP12
11 4 Flange Hex Nut 92401212 3006720
12 4 Flange Hex Nut 92401211 3001255
13 5 Flange Hex Nut 92401112 3006719
14 2 Flat Washer FWF050138014 FWF050138014
15 1 Lock Washer FWL025050007 FWL025050006SS
- 1 Never Seez Compound 9240119 9240119
item qty. description carbon stainless
