SaltDogg 92420A, -30A Series Under Tailgate Spreader (with Serial No. 4553) User Manual

Page 4

background image

4

TM

1

3

5

7

4

6

2

Weld this bar to

truck frame

Weld these

rods together

at final assembly.

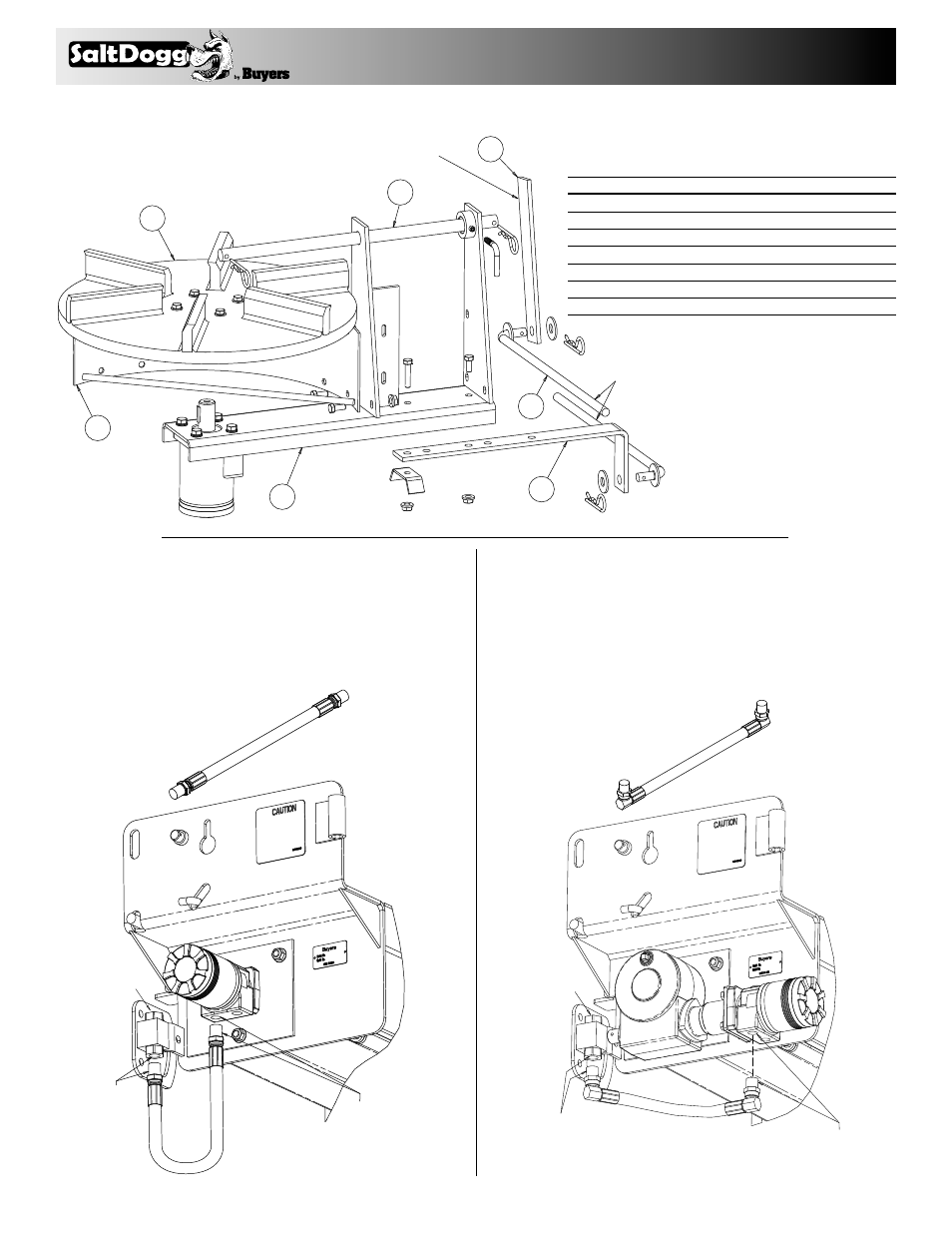

Parallel Linkage, Spinner Frame & Bar

Installation Drawings (cont.)

Bill of Materials

1 1 Spinner Frame Assy.

3001471

3006679

2 1 Spinner Shield

924F0015 3006659

3 1 Spinner disk Assy.

3001472

3001472

4 2 Linkage Rods, Welded

924F0012 924F0012

5 1 Hinge Rod

924F0018 3006646

6 1 Spinner Lug

924F0013 3006645

7 1 Bar

924F0014 924F0014

item qty. description

carbon

stainless

92420A & 92420SSA
Direct Drive Under Tailgate Spreaders
Using hose number 3008112, insert one end into
the bottom of the ball valve assembly. Insert the
other end into the LH port (when looking from rear)
of the hydraulic motor.

92430A & 92430SSA
5:1 Gearbox Under Tailgate Spreaders
Using hose number 3008113, insert one end into
the bottom of the ball valve assembly. Insert the
other end into the LH port (when looking from rear)
of the hydraulic motor.

Insert other end of
hose into port on
bottom of hydraulic
motor

Insert one
end of
hose Into
bottom of
ball valve

Attach inlet
flow here

3008113

3008112

Insert one
end of
hose into
bottom of
ball valve

Insert other end
of hose into the
port on hydraulic
motor

Attach inlet
flow here
