SaltDogg 1421469SSH Municipal-Sized Hydraulic Hopper Spreader - Manual (Page 7)

7
TM
Bill of Materials
1 3010172 1 Weldment Upper Chute
2 3010202 2 Weldment Deflector Inner
3 3010278 2 Retainer Deflector Inner
4 - 8 Washer, Flat 1/4 SAE SST
5 - 4 Screw, Cap 1/4-20 x 3/4 SST
6 - 4 Nut, Nylon Insert 1/4-20 SST
7 - 2 Washer, Flat 1/2 USS SST
8 3008853 2 Spring, Spinner Chute Baffle
9 - 2 Pin, Cotter 3/16" x 1.25" ZN
10 3012495 1 Weldment Lower Chute Bottom Motor
11 - 6 Bolt, 3/8-16 x 1 Carriage Set
12 - 12 Washer, Flat 3/8 USS SST
13 - 10 Washer, Lock RHS - 3/8 SST
item part no. qty. description item part no. qty. description
14 - 6 Nut, 3/8 - 16 Hex SST
15 CM004P 1 Motor, Hydraulic 4-Bolt
16 - 4 Screw, HHC - 3/8-16 x 3/4 SST
17 924F0017A 1 Assy., Spinner Hub
18 9240020 1 Spinner, 20" Poly CCW
19 - 8 Washer, 5/16 SAE SST
20 - 4 Screw, HHC 5/16-18 x 1.5 SST
21 - 6 Screw, HHC 3/8-16 x 1 304 SST
22 3012506 2 Baffle Side, Lower Chute
23 - 6 Nut, Nylock 3/8-16 x 7/16 SST
24 - 3 Pin, Clevis 3/8 x 1.125 SST
25 - 3 Pin, Cotter 3/32 x 3/4 SST
26 3012507 1 Baffle Rear, Lower Chute

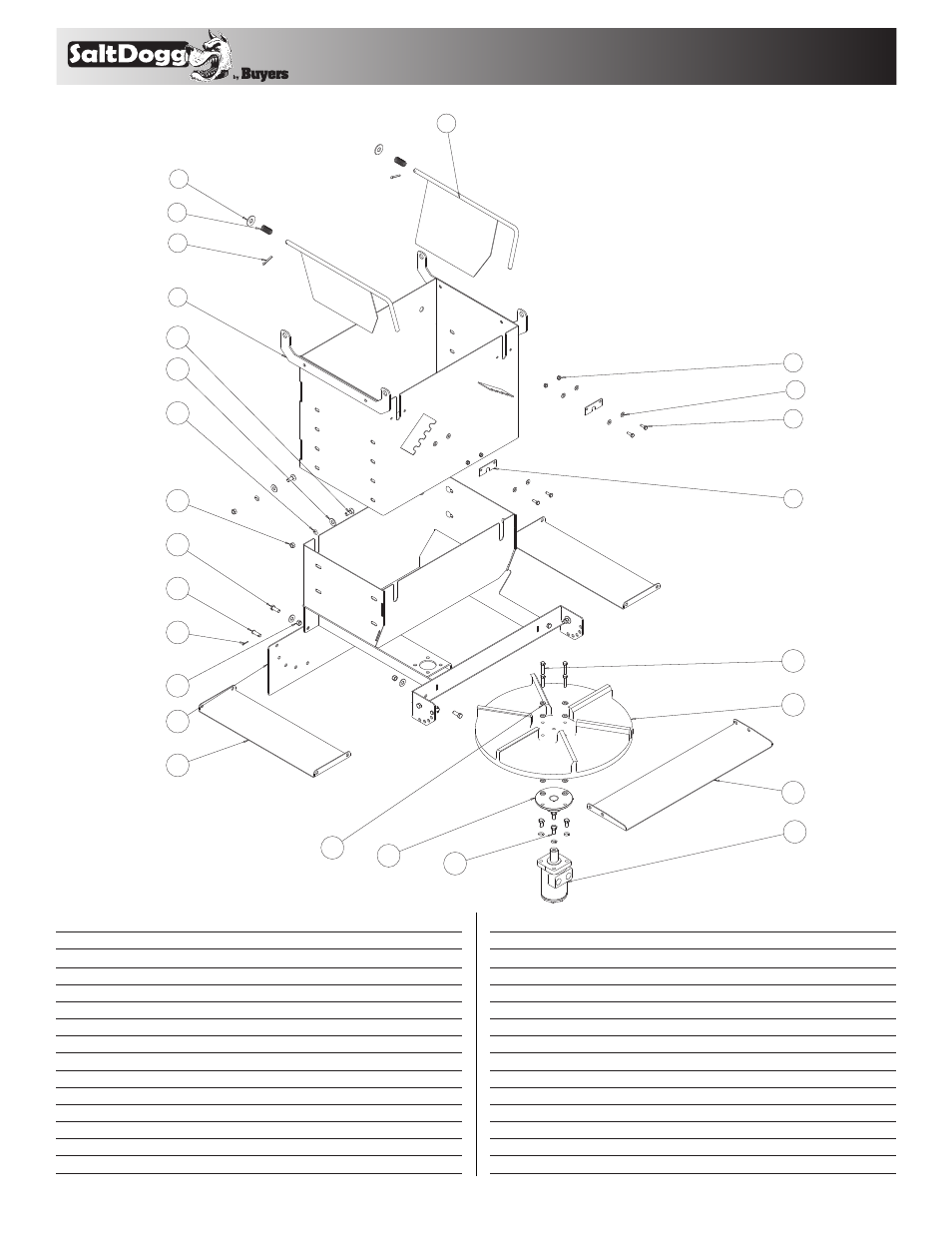

Chute Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
