SaltDogg 1421469SSH Municipal-Sized Hydraulic Hopper Spreader - Manual (Page 6)

6
TM
1
2
3
4
5
6
7
8
9
10
11
12
13 14 15 16
17
18
19
20
21 22 23 24
25
26
27 28 29
30
31
Bill of Materials
1 – 1 Hopper Weldment, 14ft.
1 – 1 Hopper Weldment, 12ft.
2 3015144 2 Inverted "V" Assy., 14ft.
2 3015543 1 Inverted "V" Assy., 12ft.
3 – 8 Bolt, 3/8-16 x 1 Carriage SST
4 – 20 Washer, Flat 3/8 USS SST
5 – 12 Washer, Lock RHS-3/8 SST
6 – 12 Nut, 3/8-16 Hex SST
7 3010131 1 Wiper, Rubber
8 – 4 Screw, HHC 3/8-16 x 1.25 SST
9 – 8 Nut, Nylock 3/8-16 x 7/16 SST
10 3010991 1 Gear Box 25:1; Sprockets Assy.
10 3010847 1 Gear Box 50:1; Sprockets Assy.
11 – 4 Waasher, Lock - 1/2 Split SST
12 – 4 Screw, HHC 1/2-13 x 1 SST
13 4F32SCR 1 Bearing Flange, 1.5 dia. 4 holes set screw
14 – 4 Screw, Hex HD 3/4 x 10 x 2 SST
15 – 4 Nut, Hex Nylock 3/4-10 SST
item part no. qty. description item part no. qty. description
16 3015134 1 Chain, 14ft. D667X Conveyor
16 3015545 1 Chain, 12ft. D667X Conveyor
17 3010358 1 Idler Shaft, Assy.
18 3010603 2 Bearing, HD Take-Up 1.5 dia.
19 – 2 Bolt, Welded Take Up
20 – 2 Nut, HH 5/8-11 x 17/32 High SST
21 3010443 1 Jack Assy., Feed Gate
22 – 4 Screw, Cap 1/4-20 x 3/4 SST
23 – 4 Washer, Flat 1/4 SAE SS
24 – 4 Nut, Nylock Insert 1/4-20 SST
25 3010312 1 Feed Gate, Weldment
26 – 1 Screw, HH Cap 5/16-18 x 3 SST
27 – 1 Nut, Nylock 5/16-18 SS
28 3010180 1 Guide, Chute
29 – 4 Screw, HHC 3/8-16 x 1 304 SST
30 CM034P 1 Motor, Hyd. 4-Bolt 17.9 CI/R
31 – 4 Screw, HX HD CAP 3/8-16 x 1-1/2 SST

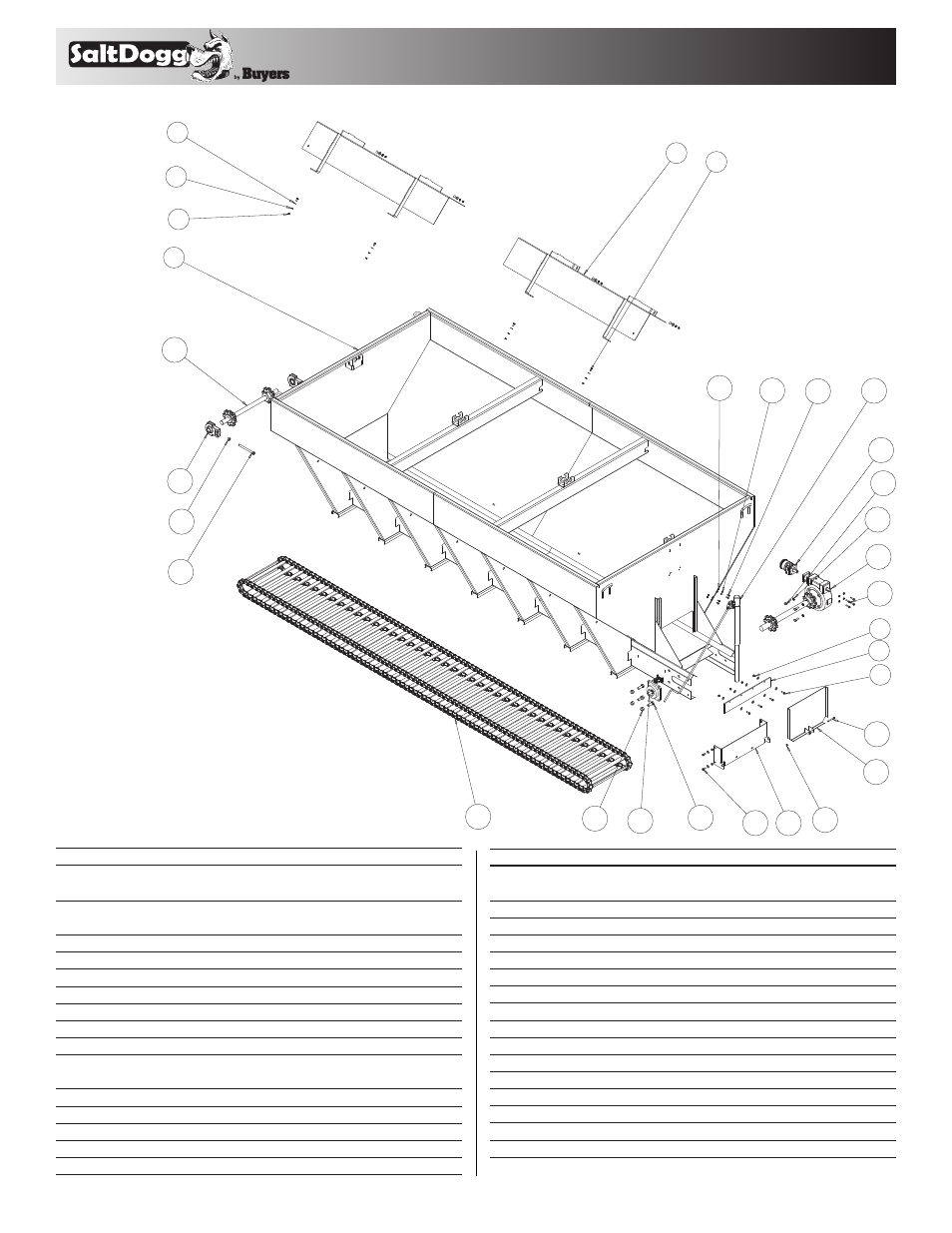

Hopper Assembly
