Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1
3005574 1 Hopper Polymer 1.5 Cu.Yd.
3025162 1 Hopper Polymer 1.5 Cu.Yd., Red
3025164 1 Hopper Polymer 1.5 Cu.Yd., Yellow
2 3006959 2 Baffle, SHPE1500
3 — 14 Washer, Flat 3/8 x 1.5 x .048 SST
4 — 14 Washer, Lock RHS 3/8 SST
5 — 14 Screw, HHC 3/8-16 x 1/2 SST
6 3011865 1 Trough Assembly, SHPE
7 3006958 4 Tie Down
8 3006974 4 Stud, 1/2-13 x .75 Both Ends, 9.75" LG, ZN
9 3009802 8 Anchor, Tarp, Poly SHPE
10 — 8 Nut, Nylock 1/2-13 ZN

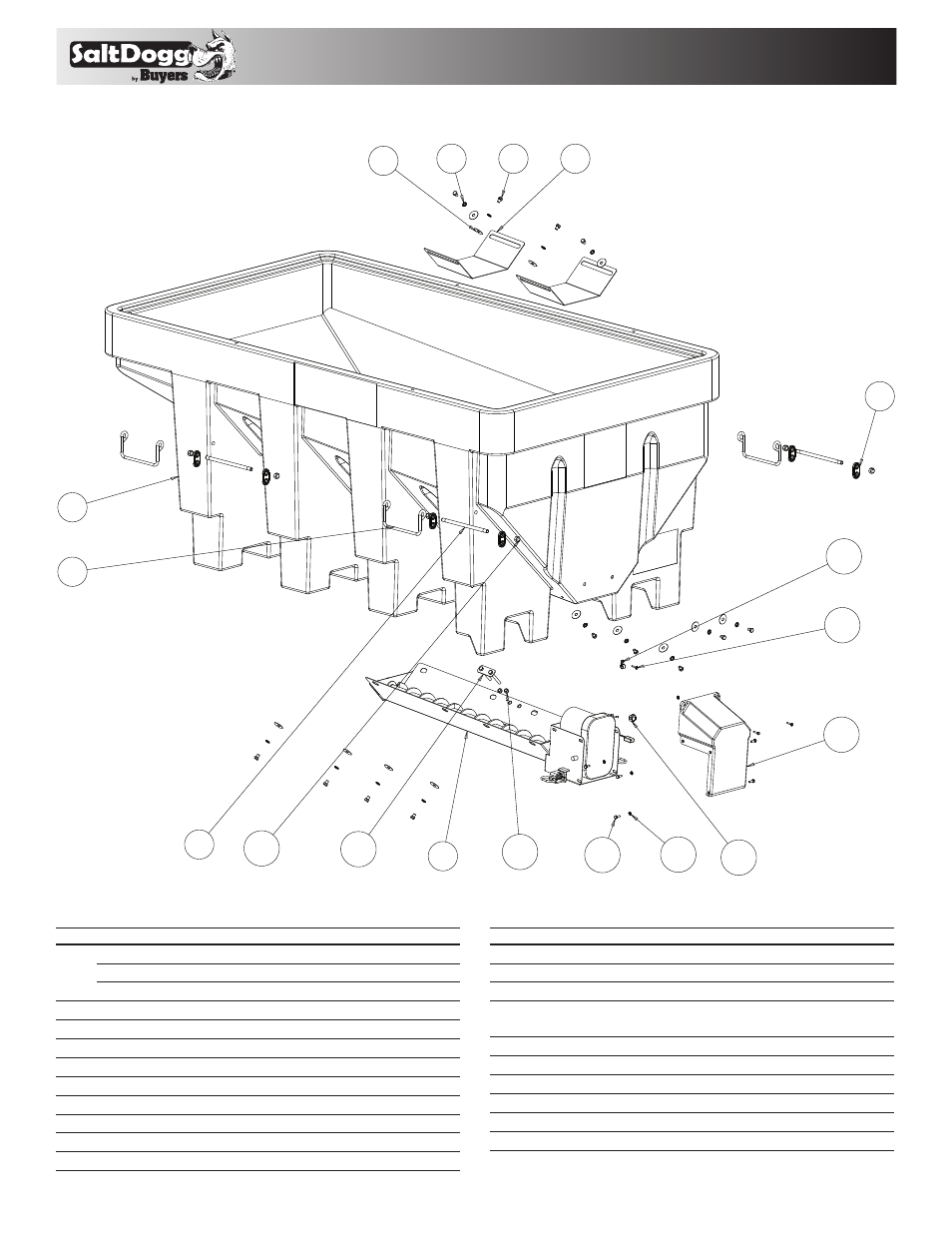

Repair Parts-Hopper Assembly
1
2 3 4 5
6
7
8
9
10 11 12
13
14
15
16 17 18
ITEM PART NO. QTY. DESCRIPTION
11 3007731 1 Bracket Vibrator, Long SST
12 — 2 Nut, Nylock 3/8-16 x 7/16 SST
13 4375 2 Clamp, Hose .4375, 9/32 Hole
14 — 4 Screw, Sheet Mtl. #12x1.0 Hex Washer HD
SST
15 3007236 1 Cover Gearmotor
16 — 6 Washer, 1/4" Spring Lock Set
17 — 6 Screw, Cap 1/4-20 x 3/4 SST
18 3007821 1 Strain Relief Bushing
9240132 1 Decal, Danger
3012898 1 Decal, Check Strap
