Repair Parts-Spreader

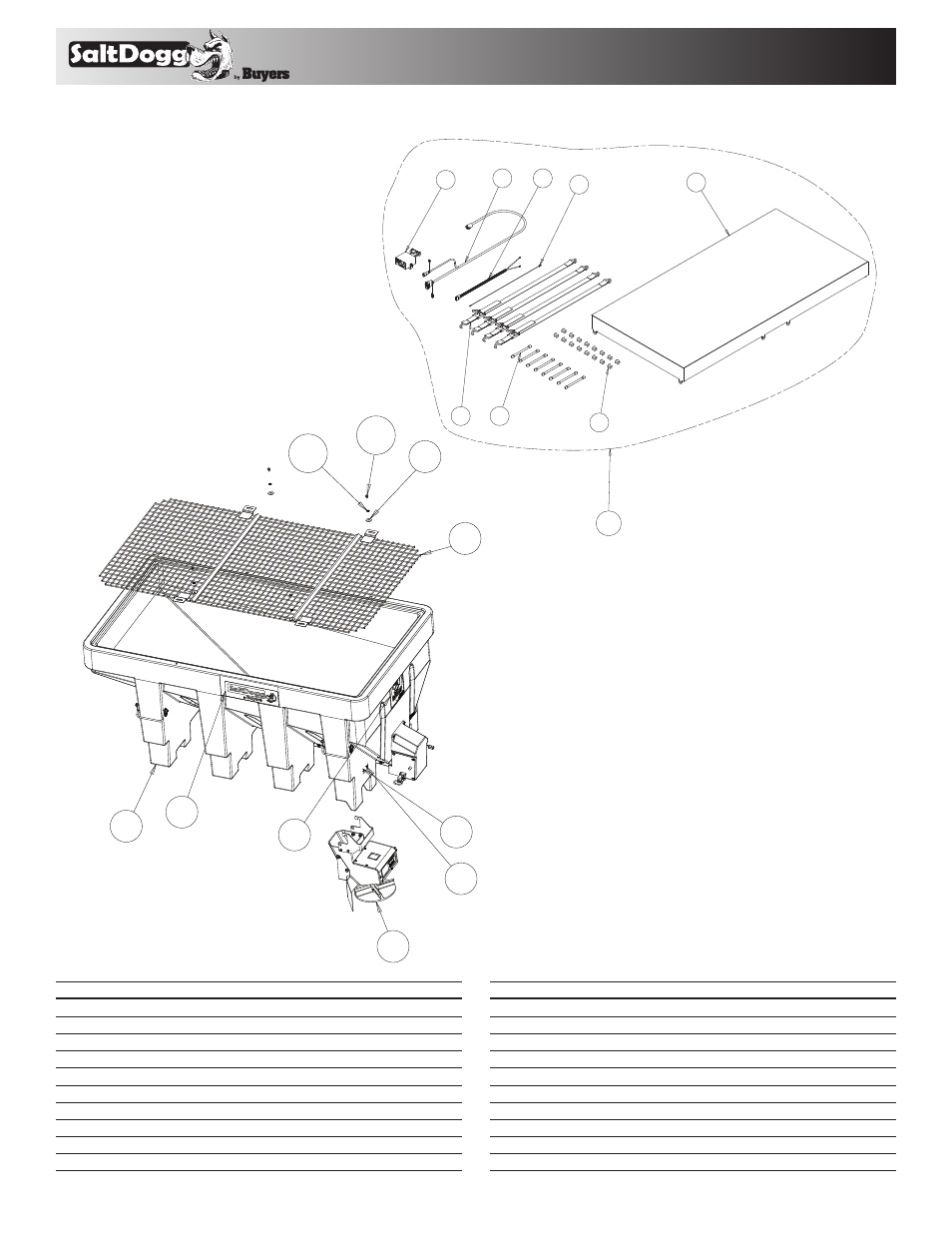

Bill of Materials
1 3006837 1 Hopper, Assembly, 1.5 Cu. Yd. Poly
2 3007002 1 Accessories Box, SHPE1500
2a 3006620 1 Controller, Buyers Logo
2b 3006724 1 Wire Harness, Main
2c 3006842 1 Power Cable, Control Box
2d 1496505 1 Hold Down Kit, Spreader (4 Straps)
2e TS9 8 Strap, Rubber Tarp 9"
2f 9225 16 S-Hook, 2.5" ZN, Tarp Strap
2g 3008838 1 Tarp SHPE2000
2h 0203700 1 Wire Assembly, 36 Long
item part no. qty. description item part no. qty. description
1
3
4
5
6
7
8
9 10
11
2a 2b 2c
2d 2e
2g
2
2f
2h
3 3007412 1 Chute Poly Std. SHPE1500
3 3007527 1 Chute Poly Extended
4 3007039 1 Screen, Weldment SHPE1500
5 3006839 1 Decal, SaltDogg, Rear
6 3012642 2 Decal, SaltDogg, Side SHPE1500
7 3008987 1 Plate, Serial No. SHPE1500 Series
8 — 2 Screw, Sheet Mtl. #12x1.0 Hex Wash. HD SST
9 — 4 Washer, Flat 3/8 x 1.5 x .048 SST
10 — 4 Washer, Lock RHS-3/8 SST
11 — 4 Screw, HHC-3/8-16 x 1/2 SST
