Bill of Materials
1 3005920 1 Frame, Weldment, TGS01B
2 3006095 1 Hopper w/ Sleeve, Assembly TGS01B
3 3003079 1 Lid, Assembly TGS01A
4 3009476 1 Motor 12 VDC, TGS
5 – 4 Screw, Cap Hex HD 1/4-20 x 1 SST
6 – 8 Washer, Fender 5/16" ID x 1-1/4" OD
7 – 10 Nut, Nylon Insert 1/4-20 SST
8 3005913 2 Shield, TGS01B
9 – 4 Washer, Flat 3/8 USS SST
10 – 4 Screw, HHC 3/8-16 x 3/4 SST
11 – 4 Nut, Nylock 3/8-16 x 7/16 SST
12 – 2 Screw, Cap 1/4-20 x 3/4 SST
13 – 2 Washer, Flat 1/4 SAE SST
14 3000626P 2 Keeper, Latch WJ201, Black
15 – 4 Bolt, Carriage, 1/4-20 x 1 SST
16 – 4 Screw, BHC #10-24 x .75 SST
17 – 4 Nut, Elastic Stop 10-24 SS
18 3007811 1 Auger w/ Set Srew TGS01
19 3005706 1 Spinner, Poly TGS01, TGS05, TGSUVPRO
20 – 1 Pin Clevis, 1/4 x 2.5
21 – 1 Cotter Pin, 5/64 x 3/4
22 3003617 2 Angle, Mounting Adapter, TGS01A/TGS01B
23 3003973 2 Mount Brace, TGS01A/TGS01B
24 3003620 2 Angle, Mounting, TGS01A/TGS01B
item part No. qty. deScriptioN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

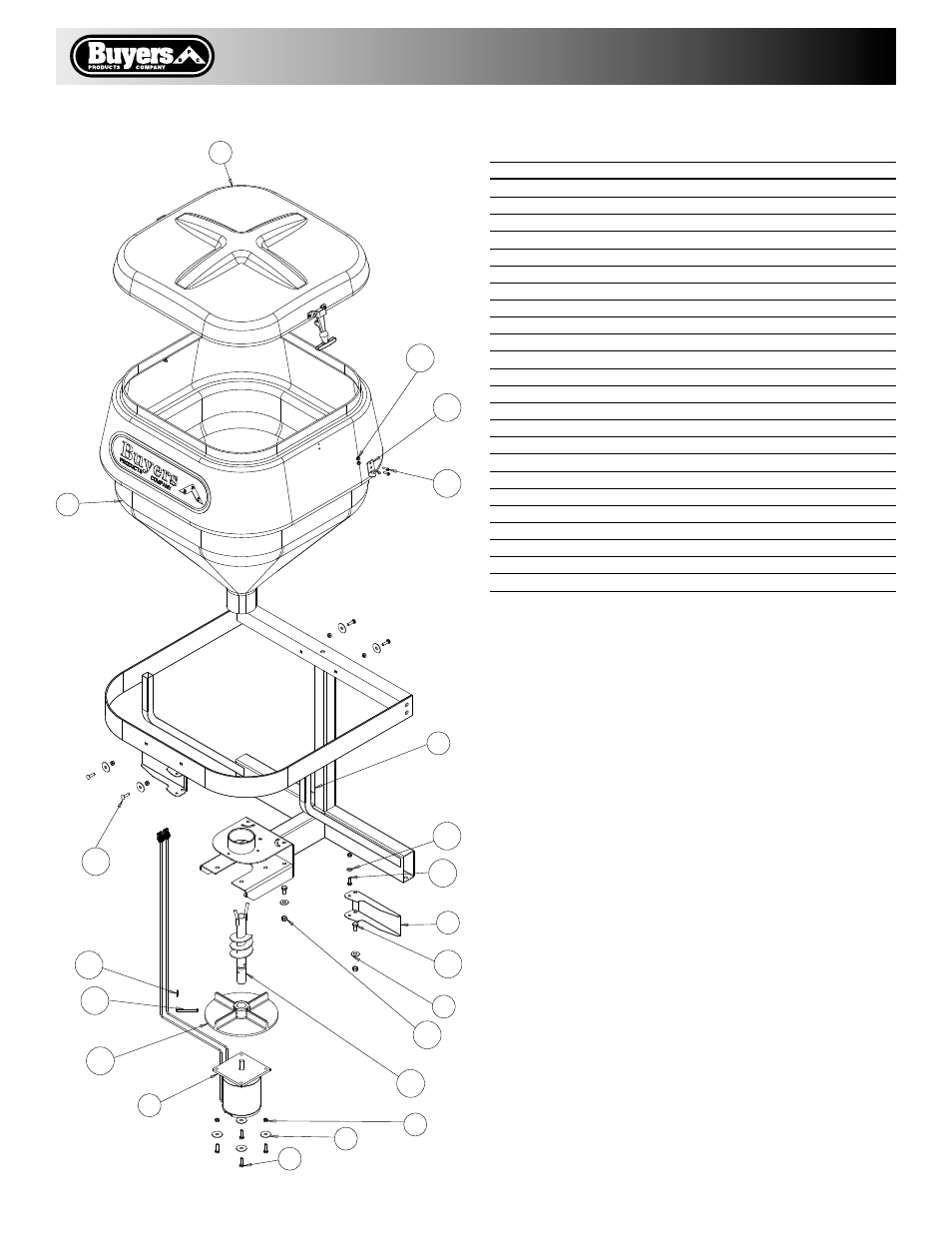

Fig. 3
