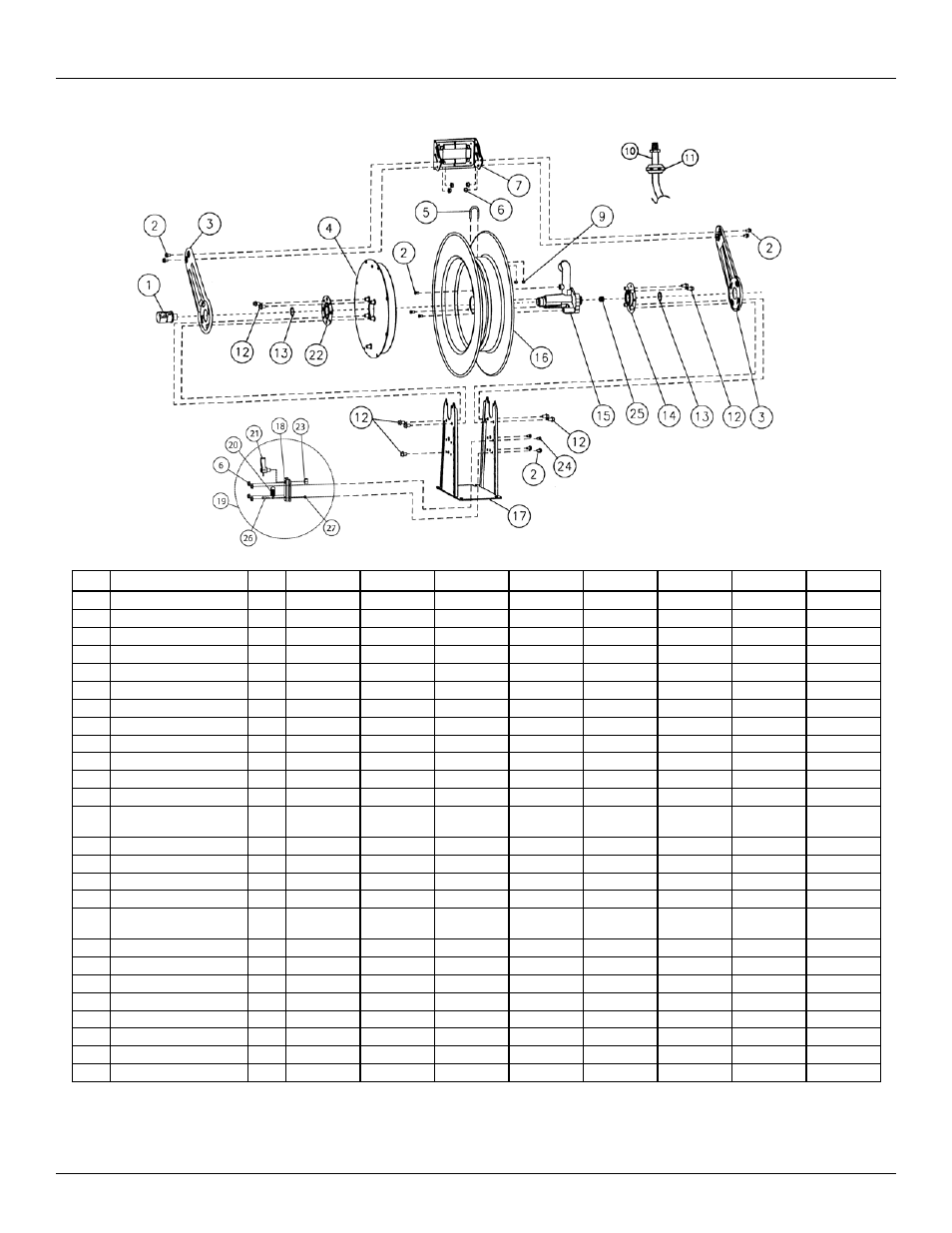

Series 80000 Spring Driven Hose Reels

www.reelcraft.com

Page 3

ITEM

DESCRIPTION

QTY. 81100 OLP 81000 OLP 82075 OLP 82100 OLP 82000 OLP 83050 OLP 83000 OLP 82075 OMP

1

Swivel assembly

1

600888

600888

600888

600888

600888

S602026

S602026

S602033

2

5/16-18 x 1/2” screw

9

*

*

*

*

*

*

*

*

3

Guide arm

2

261299

261299

261299

261299

261299

261299

261299

261299

4

Spring & case assembly

1

S600645-2

S600645-2

S600645-3

S600645-2

S600645-2

S600645-1

S600645-1

S600653-2

5

U-bolt

1

3-117440

3-117440

3-117440

3-117440

3-117440

5-117440

5-117440

3-117440

6

5/16-18 lock nut

8

*

*

*

*

*

*

*

*

7

Roller bracket assembly

1

S600642

S600642

S600642

S600642

S600642

S600642

S600642

S600642

9

1/4-20 lock nut

2

261650-1

261650-1

261650-1

261650-1

261650-1

261650-1

261650-1

261650-1

10 Hose assembly

1

601015-100

None

601035-75

601035-100

None

601034-50

None

601036-75

11 Hose bumper assembly

1

A1-HR1004-3

None

A2-HR1004-3 A2-HR1004-3

None

A3-HR1004-3

None

A2-HR1004-3

12 3/8-16 x 5/8” screw

9

*

*

*

*

*

*

*

*

13 1 3/8” snap ring

2

*

*

*

*

*

*

*

*

14 Flange w/bearing & nut-

sert assembly

1

S600651

S600651

S600651

S600651

S600651

S600651

S600651

S600651

15 Ratchet, flow casting

1

261306-2

261306-2

261306-2

261306-2

261306-2

261306-2

261306-2

261306-2

16 Sheave assembly

1

600649

600649

600649

600649

600649

600649

600649

600649

17 Base & upright assembly

1

600641

600641

600641

600641

600641

600641

600641

600641

18 Latch mounting bracket

1

261303

261303

261303

261303

261303

261303

261303

261303

19 Latch pawl & mounting

bracket assembly

1

S600643

S600643

S600643

S600643

S600643

S600643

S600643

S600643

20 Latch spring

1

S260067

S260067

S260067

S260067

S260067

S260067

S260067

S260067

21 Latch pawl assembly

1

600018

600018

600018

600018

600018

600018

600018

600018

22 Bearing & flange assembly

1

S600644

S600644

S600644

S600644

S600644

S600644

S600644

S600644

23 1/2-20 x 5/8” hex nut

1

*

*

*

*

*

*

*

*

24 5/16-18 x 1/2” hex screw

2

*

*

*

*

*

*

*

*

25 Pipe plug

1

*

*

*

*

*

*

*

*

26 10-32 shoulder screw

1

S393-2

S393-2

S393-2

S393-2

S393-2

S393-2

S393-2

S393-2

27 10-32 Nyloc nut

1

*

*

*

*

*

*

*

*

*Included in hardware kit part number 600654
