126 Installation and User’s Guide
C RF Subsystem Functional Verification Test

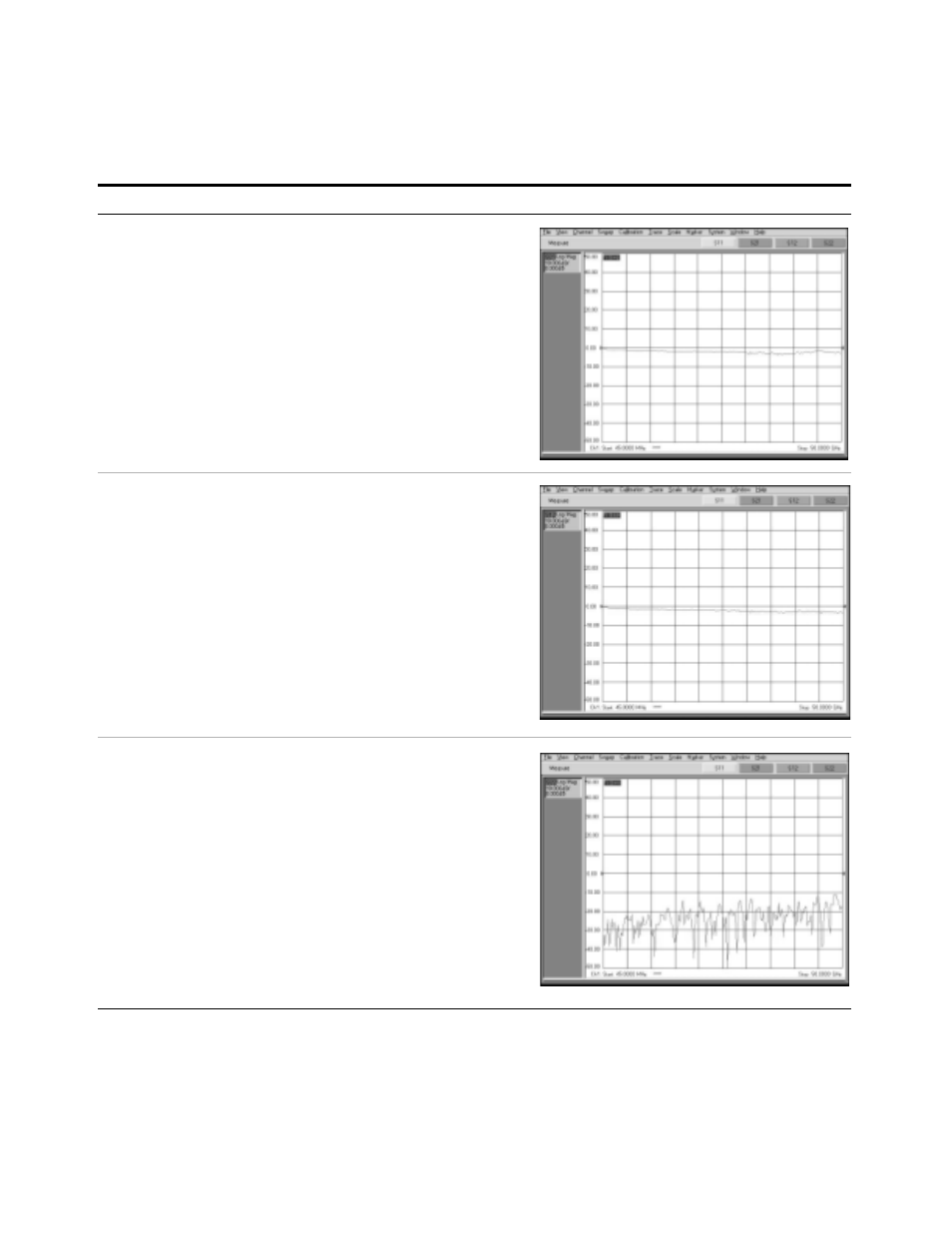

5 Test the forward
transmission mode for
channel 1.
a From the Trace drop down menu,
point to Measure and click S21.
b Inspect the trace shown on the
display. It should be similar to the
trace shown to the right.
6 Test the reverse
transmission mode for
channel 1.
a From the Trace drop down menu,
point to Measure and click S12.
b Inspect the trace shown on the
display. It should be similar to the
trace shown to the right.
7 Test the reverse reflection
mode for channel 1.
a From the Trace drop down menu,
point to Measure and click S22.
b Inspect the trace shown on the
display. It should be similar to the
trace shown to the right.
To perform the RF subsystem functional verification test (continued)
Step Action Notes
