Ramsey Winch H-800 DOW-LOK (JERR-DAN) - Manual

Congratulations
PLEASE READ THIS MANUAL CAREFULLY
This manual contains useful ideas in obtain-
ing the most efficient operation from your
Ramsey Winch, and safety procedures one
needs to know before operating a Ramsey
Winch. Do not operate this winch until you
have carefully read and understand the
"WARNINGS" and "OPERATION" sections of
this manual.
Ramsey Winch Company

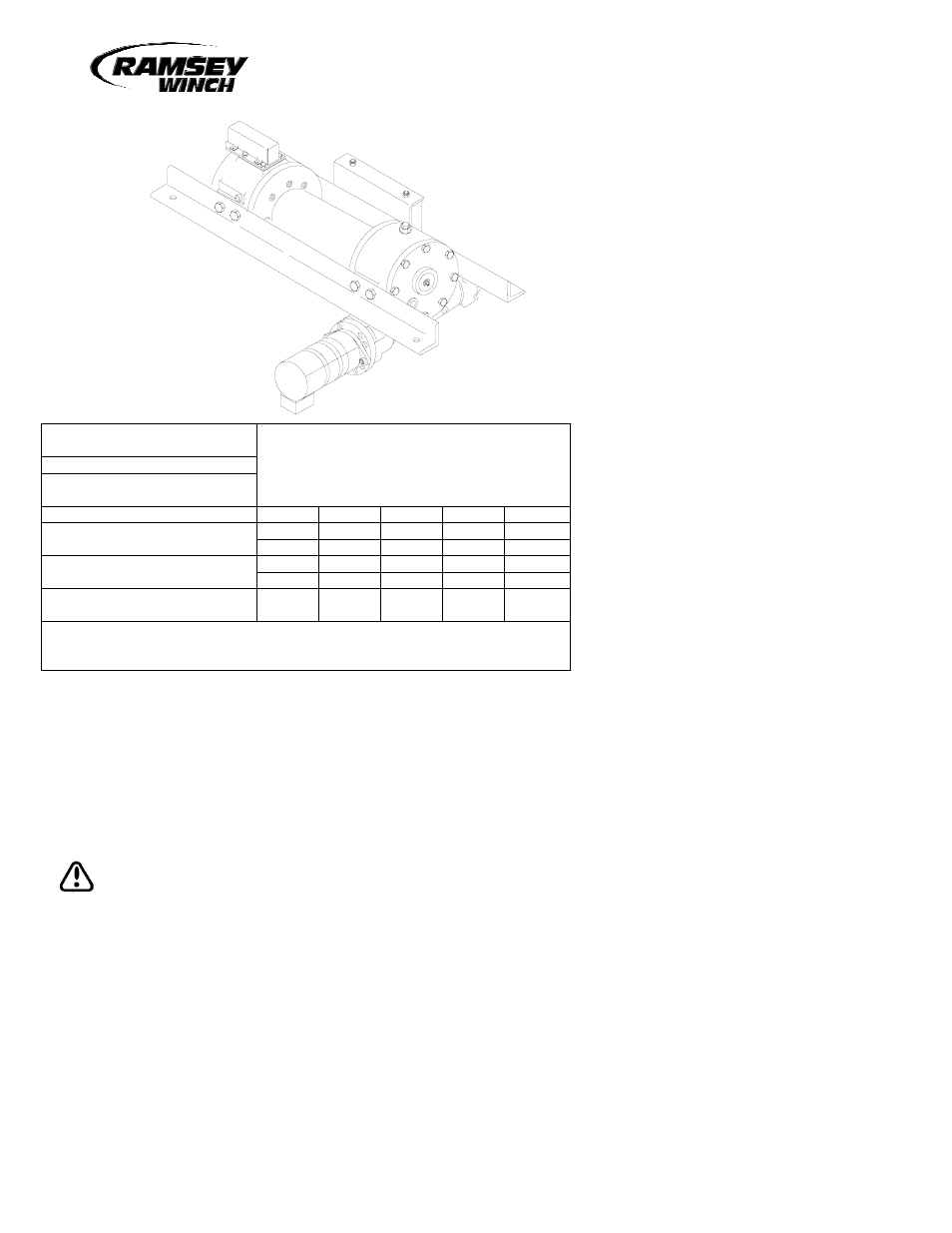

OPERATING, SERVICE, AND
MAINTENANCE MANUAL
MODEL H-800 WINCH
(MFG. PER JERR-DAN SPECS.)
U.S. PATENT #4379502
CAUTION: Read and understand this manual before installation and operation of
winch. See Safety Precautions.
Rated Line Pull (lbs.) 25,000
(kg) 11,340
Gear Reduction 40:1
Shipping Weight: H-800
with cable tensioner 392 lbs.
(178 Kg)
Layer of Cable 1 2 3 4 5**
(lbs.) 25,000 20,800 17,900 15,600 13,900
(kg) 11,349 9,430 8,110 7,070 6,300
*Cable Capacity (ft)* 35 75 125 185 245
(m)* 10 22 38 56 74
*Line speed FPM 18 22 26 29 33
MPM 5,4 6,6 7,9 8,8 10,0
** Fifth layer does not conform to SAE J706
* These specifications are based on recommended wire rope of .63 inch diameter extra
improved plow steel or equivalent
*Rated line pull per layer
Note: The rated line pulls shown are for the winch only. Consult wire rope manufacturer for
wire rope ratings.
