Ramsey Winch E-STOP SWITCH KIT 282067 & 282068 User Manual

Page 5

5 amp

BLACK (#1b)

RED (#1a)

YELLOW *

WIRE SPLICE

GROUND

RED (TO WINCH
POWER)

BLACK (#1c)
(GROUND)

RED (#1d)

TO VEHICLE
IGNITION

Test Installation

1. Turn the vehicle ignition switch to ON.
2. Twist the red button on the E-Stop switch clockwise to verify that switch is reset.
3. Turn the Rocker Switch to ON. The switch should illuminate when on, indicating that power is

available to the winch.

4. With the winch clutch disengaged, confirm that the winch operates.
5. Push the E-Stop button down until it latches.
6. Confirm that the winch will not operate.
7. Twist E-Stop button clockwise to reset the switch.
8. Turn the Rocker Switch to OFF. The switch will not be illuminated when off, indicating no

power to the winch.

9. Confirm that the winch will not operate.

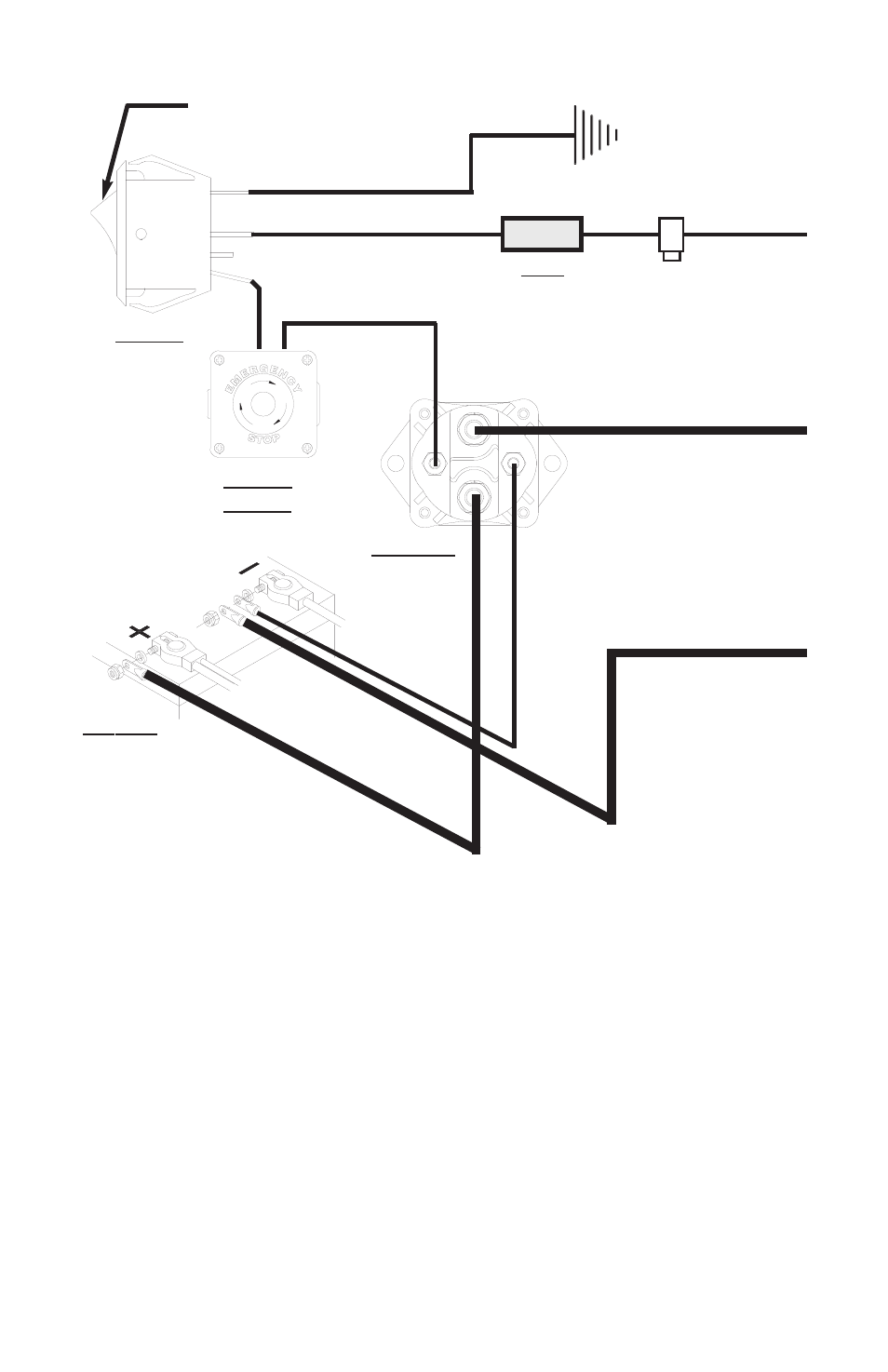

If the winch does not operate as described above, check the wiring against the schematic on
above. Be sure and disconnect the negative (-) then the positive (+) battery cables from the
battery before disconnecting or connecting any wires.
If the wiring is correct and winch does not operate, confirm that the 5 amp fuse in the inline
fuse holder on the red switch wire is good. Replace if necessary.

BLACK (FROM
WINCH GROUND)

FUSE

SWITCH

SOLENOID

BATTERY

Rocker switch
in OFF position

E-STOP
SWITCH

* Included with E-Stop switch

YELLOW *
