Chapter 7. Installing an Analog Modem
61203153L2-20 Express 3000 User Manual 7-7

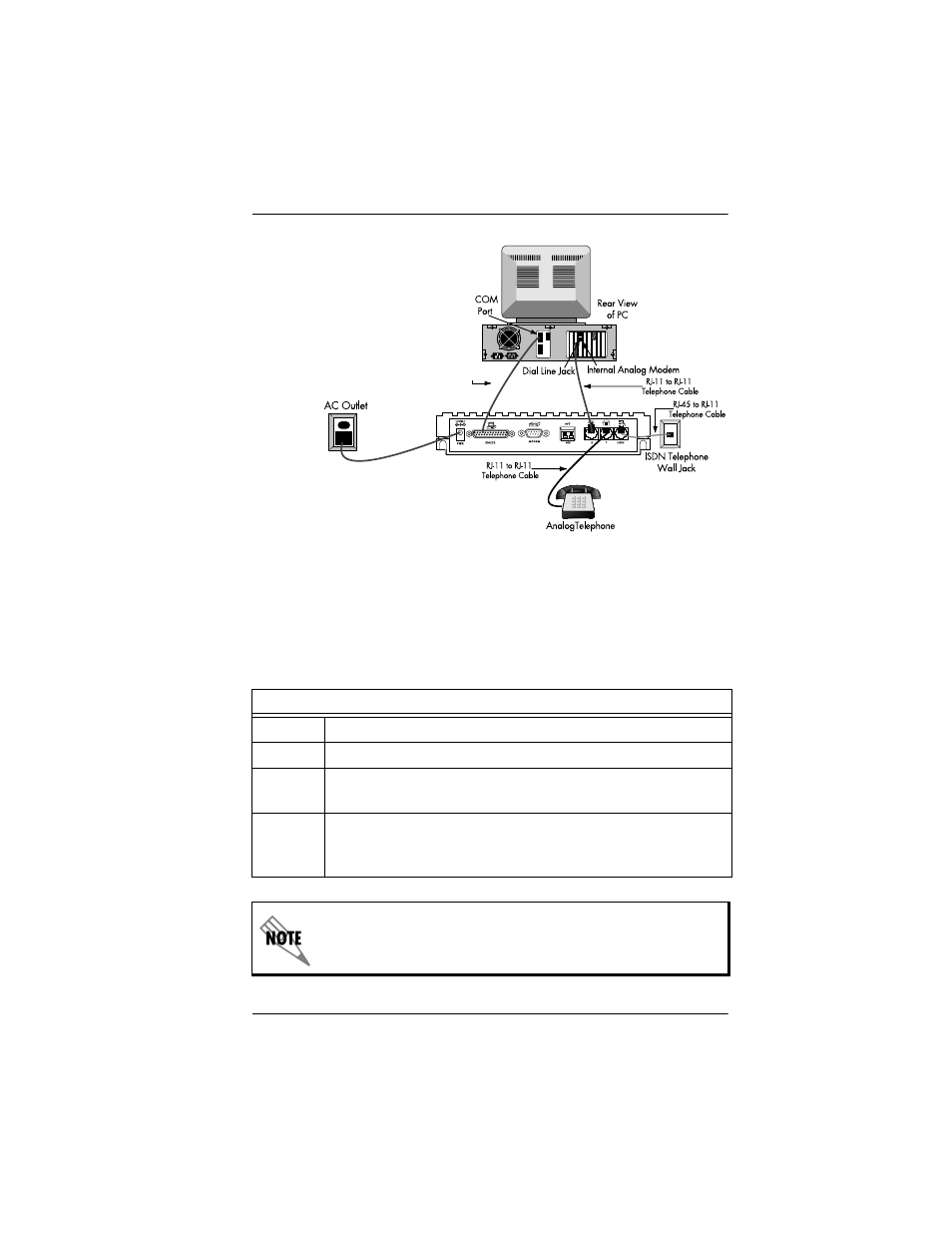

Figure 7-2. Internal Analog Modem Connections
Connecting an Internal Analog Modem
To connect an internal analog modem to the Express 3000, use the fol-
lowing procedure:
Instructions for Connecting an Internal Analog Modem
Step Action
1 Ensure that the Express 3000 is connected to the PC.
2 Connect one end of the RJ-11 to RJ-11 telephone cable
to the telephone jack labeled 2 on the Express 3000.
3 Connect the other end of the RJ-11 to RJ-11 telephone
cable to the Dial Line or Line jack on the internal analog
modem.
See the internal analog modem documentation to determine
which jack on the internal analog modem is the
Dial Line or
Line jack.
ISDN Cable
