ADTRAN 7000 Series User Manual
Rj-11 c

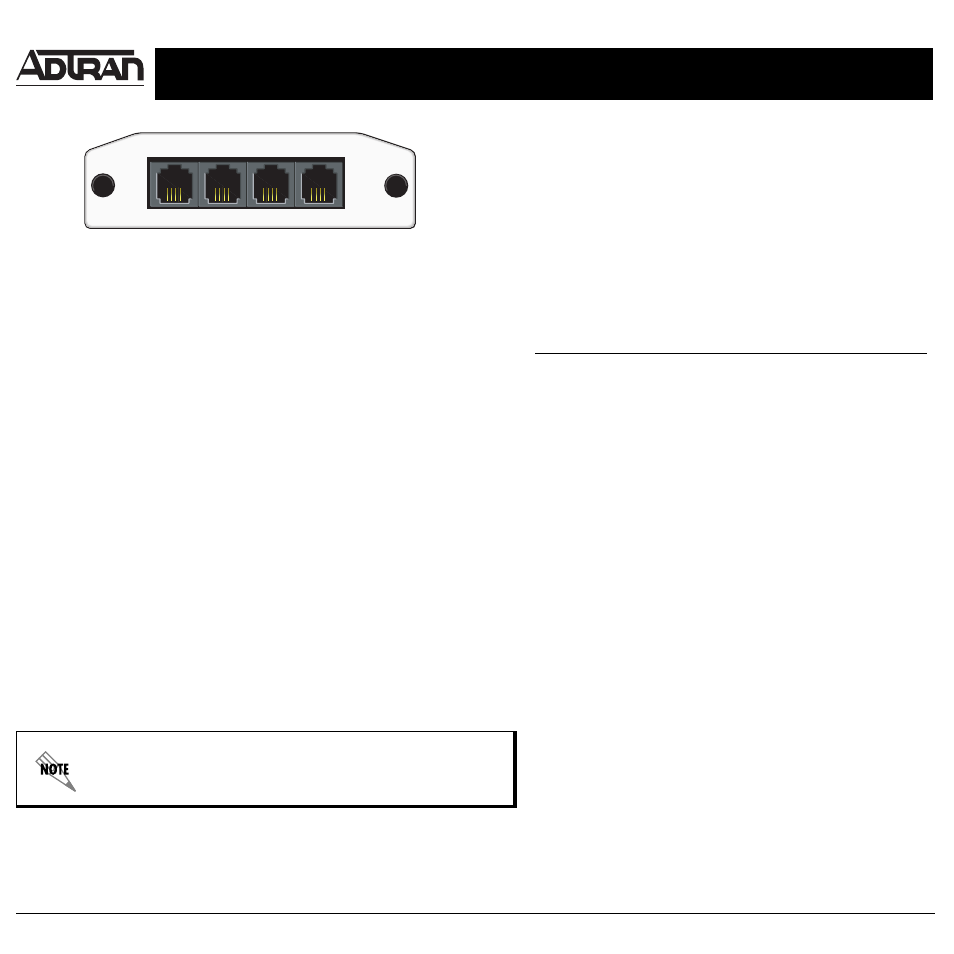

NetVanta 7000 Series Dual FXS/FXO Voice Interface Module
P/N 1200692L1
For more detailed documentation, visit us online at
Quick Start Guide
®
Quick Start Guide, 61200692L1-13A, November 2005
Technical Support 1-888-4ADTRAN (1-888-423-8726)
Copyright © 2005 ADTRAN, All Rights Reserved
ANALOG
VIM
TRUNKS
STATIONS
1
2
1
2
I
NSTALLATION
I
NSTRUCTIONS
1.
Remove power from the unit.
2.
Slide the option module into the option slot until
the module is firmly seated against the chassis.
3.
Secure the pins at both edges of the module.
4.
Connect the cables to the associated device(s).
5.
Complete the installation of the base unit.
RJ-11 C
ONNECTOR
P
INOUTS
Pin
Name
Description
1, 2
—
Unused
3
Ring
Ring lead of the 2-wire interface
4
Tip
Tip lead of the 2-wire interface
5, 6
—
Unused
S
PECIFICATIONS
Analog Voice Ports Two Foreign Exchange Office (FXO) ports:
Loop Start (LS), Ground Start (GS),
normal and reverse battery operation
Two Foreign Exchange Station (FXS) ports:
Loop Start (LS), Ground Start (GS),
normal and reverse battery operation
Transmission Level FXO Transmit Gain: -6 to +10 dB, 0.1 dB increments
FXO Receive Gain: -6 to +10 dB, 0.1 dB increments
FXS Transmit Gain: -12 to +6 dB, 0.1 dB increments
FXS Receive Gain: -12 to +6 dB, 0.1 dB increments
Impedance
FXO: 600 W +2.16
µF, 900 W +2.16 µF
FXS: 600 W, 600 W +2.16
µF, 900 W, 900 W +2.16 µF
Port Tests
1 kHz test tone (near-end, far-end selectable)
FXO: Loop open, loop closed, ring ground
FXS: Reverse polarity, active, ringing, tip-open
Loopbacks: Analog and digital
LEDs
(FXO and FXS ports)
Refer to 61200796L1-13
Compliance
UL 60950, Third Edition/CSA C22.2, No. 60950
FCC Part 15 Class and Part 68 (FXO only)
Environmental
Operating Temperature: 0ºC to 50ºC
Storage Temperature: -20ºC to 70ºC
Relative Humidity: Up to 95 percent, noncondensing
This module is to be installed only in the NetVanta 7000 Series.
