7
INSTRUCTIONS FOR OVERHAUL OF RAMSEY WINCH
MODEL RPH 12,000
DISASSEMBLY
Take note of mounting configuration for proper mounting of parts during re-assembly.

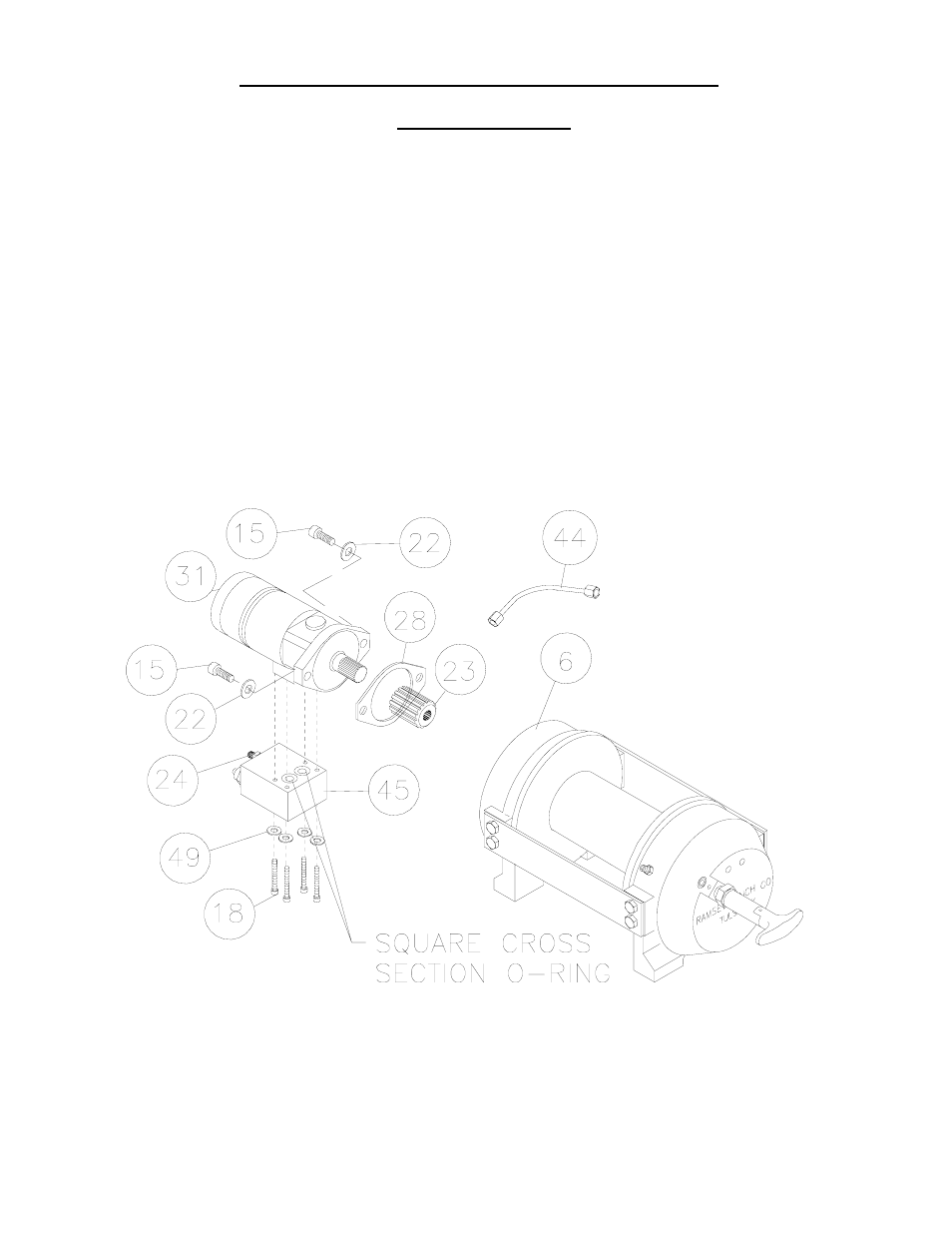

Disconnect tube (item #44) from elbows (item #24) on bottom of brake (item #6) and valve
(item #45). Remove motor (item #31) from brake housing (item #6) by unscrewing capscrews
(item #15). Tap motor lightly to disengage. Replace all gaskets, o-rings and seals with new
ones during re-assembly.
Remove coupling (item #23) from brake housing. Examine coupling for signs of wear, replace
if necessary. If necessary, remove valve (item #45) from motor by removing capscrews (item
#19) and lockwashers (item #49). If valve is removed make sure two square cross section o-
rings remain seated in their counter bores in valve.
