8

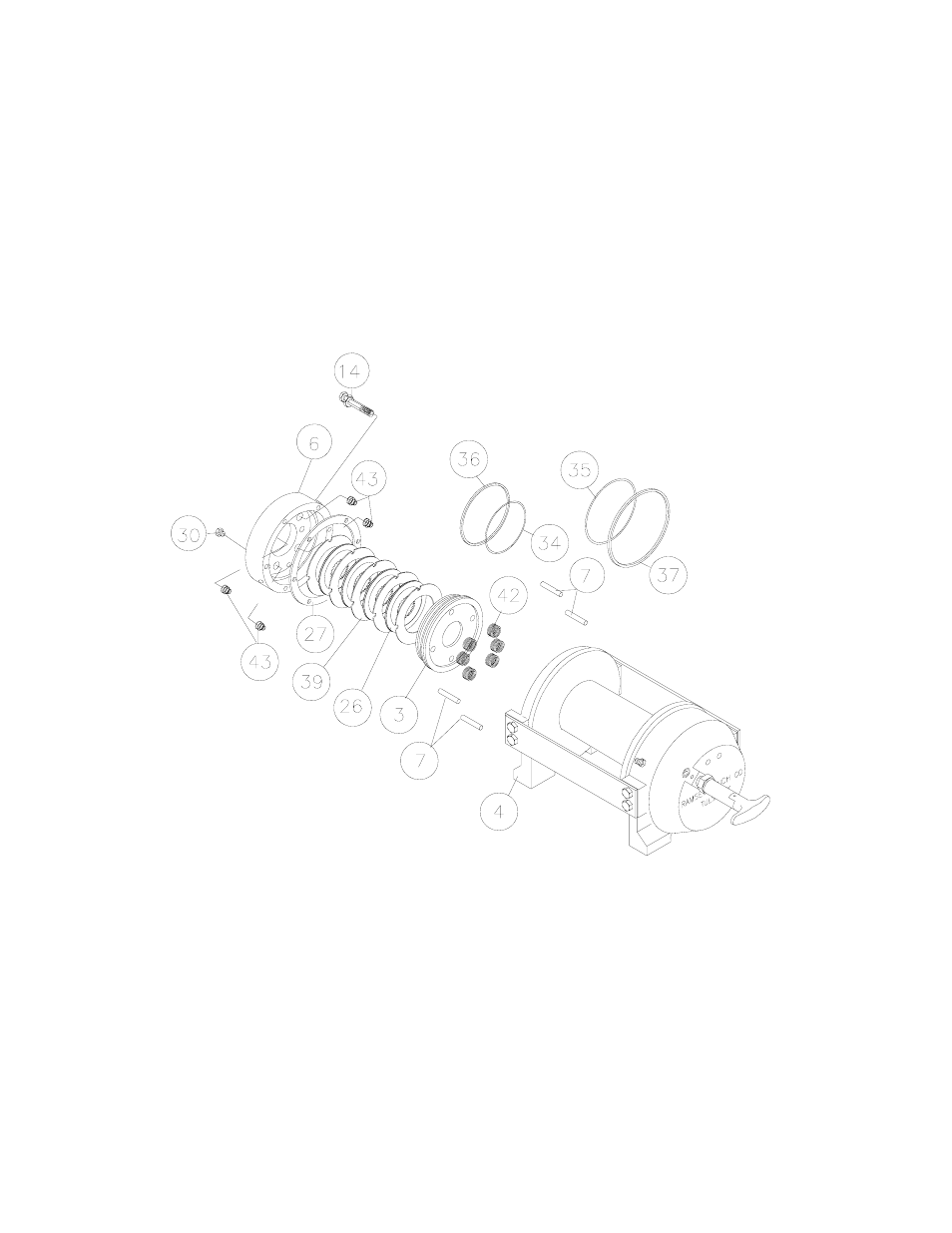

Remove brake housing (item #6) from end bearing (item #4) by unscrewing (6) capscrews (item
#14) in a criss-cross pattern (2 turns each) until all capscrews are removed from brake housing.
Remove brake parts from brake housing. Examine brake discs (item #26) for signs of wear,
and replace if necessary. Examine o-rings (items #34 & #35) and backup rings (items #36 &
#37) for signs of wear. Remove o-rings and backup rings from grooves in brake piston (item
#3).
Remove and examine springs (items #42 & #43) for damage, replace if necessary.
Examine fitting (item #30) to assure that fittings are in proper working condition, replace if
necessary.
