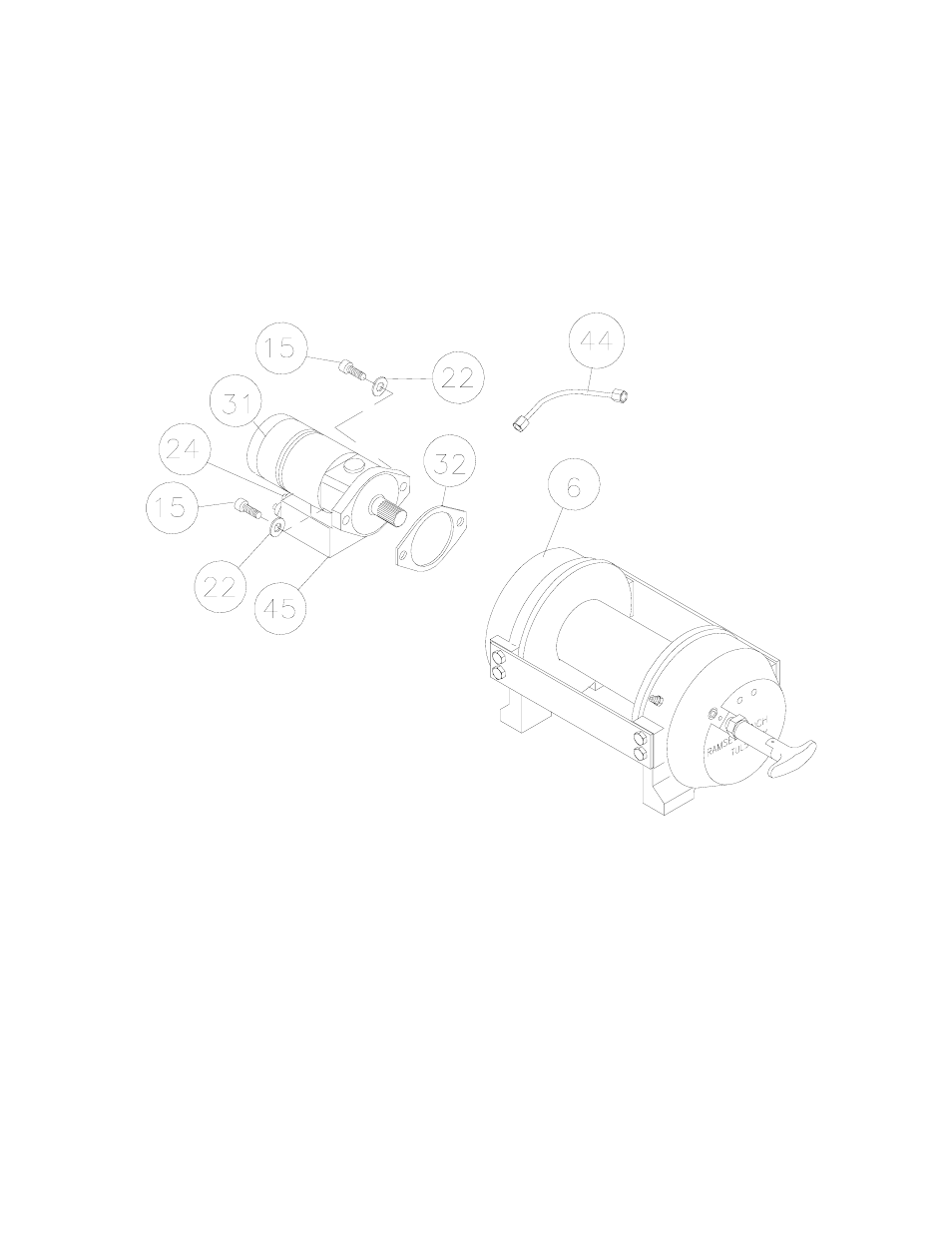

Place gasket (item #28) into position on mounting surface of motor (item #31). Slide motor shaft into coupling and
attach motor to brake housing (item #6). Use (2) capscrews (item #15) with lockwashers (item #22) and torque to 87
ft. lbs. (118 Nm) each. Securely connect tube (item #44) to elbows (item #24) in valve (item #45) and in bottom of
brake housing (item #6).


Apply at least 550 PSI hydraulic system pressure to release brake and verify that brake releases, by observing that
the winch drum rotates.
