Ramsey Winch RPH-12000 User Manual
Page 6
4

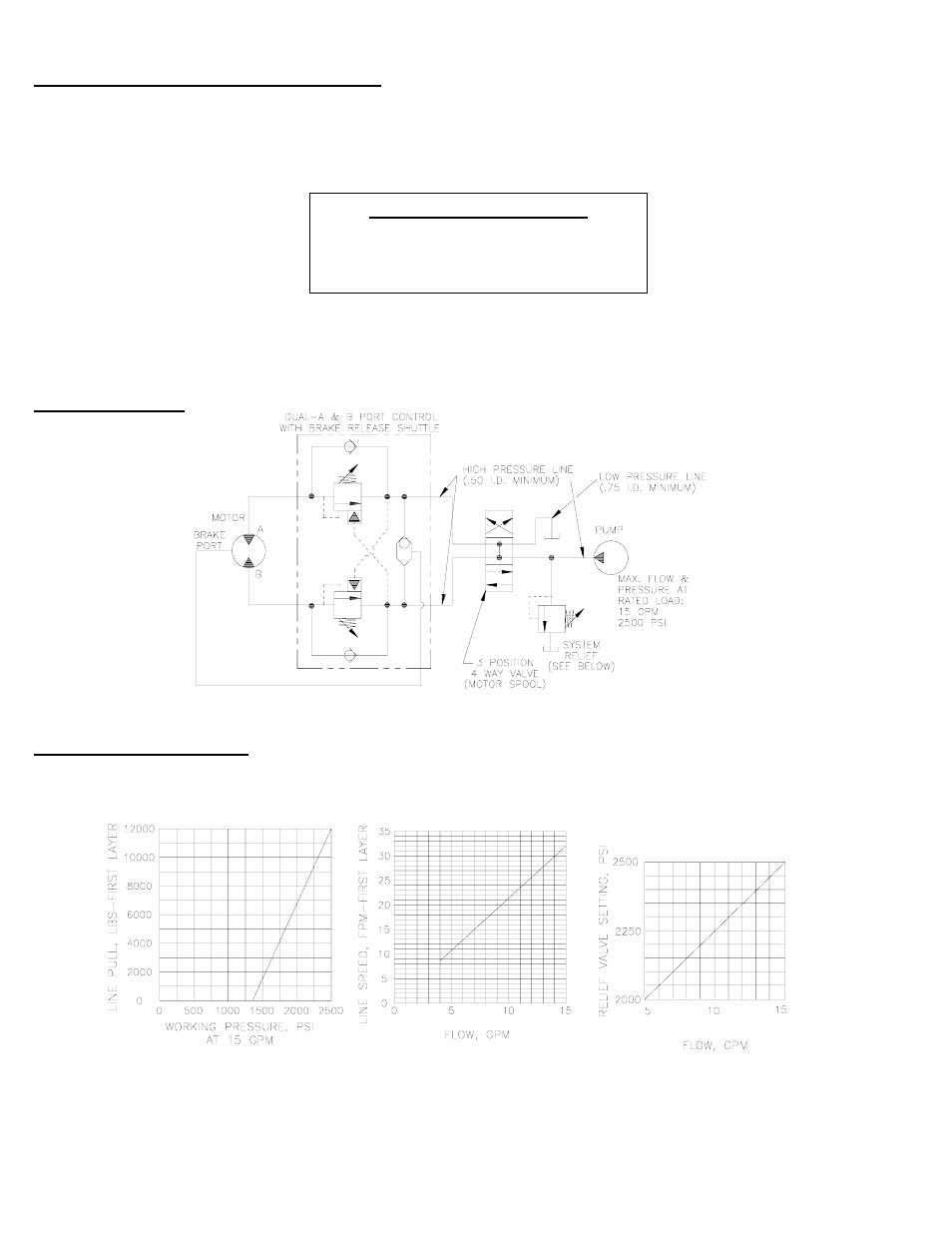

HYDRAULIC SYSTEM REQUIREMENTS
Refer to the performance charts below to properly match your hydraulic system to the winch performance. The charts
consist of: (1) first layer line pull (LB) vs. working pressure (PSI), (2) first layer line speed (FPM) vs. flow (GPM), and
(3) relief valve setting (PSI) vs. flow (GPM). A motor spool directional control valve is required.
*CAUTION: DO NOT EXCEED 20 G.P.M. IF EXCEEDED, MOTOR AND WINCH MAY BE DAMAGED
TYPICAL LAYOUT
PERFORMANCE CHARTS
PERFORMANCE WITH 24.0 CU. IN. HYDRAULIC MOTOR
SYSTEM REQUIREMENTS:
2500 PSI RELIEF VALVE SETTING*
15 GPM FLOW RATE**
10 MICRON NOMINAL FILTRATION
