Section 4: Operation with Manual Gas Console Spirit II User’s Manual
This information is subject to the controls of the Export Administration Regulations [EAR]. This information shall not be provided to
non-U.S. persons or transferred by any means to any location outside the United States contrary to the requirements of the EAR.
4-4
Making a Cut or Mark
Once the process type, gas types and gas pressures have been set in the MGC; the
correct torch parts (consumables) installed; and the X/Y controller and torch height
control are properly configured; the system is ready to cut or mark.

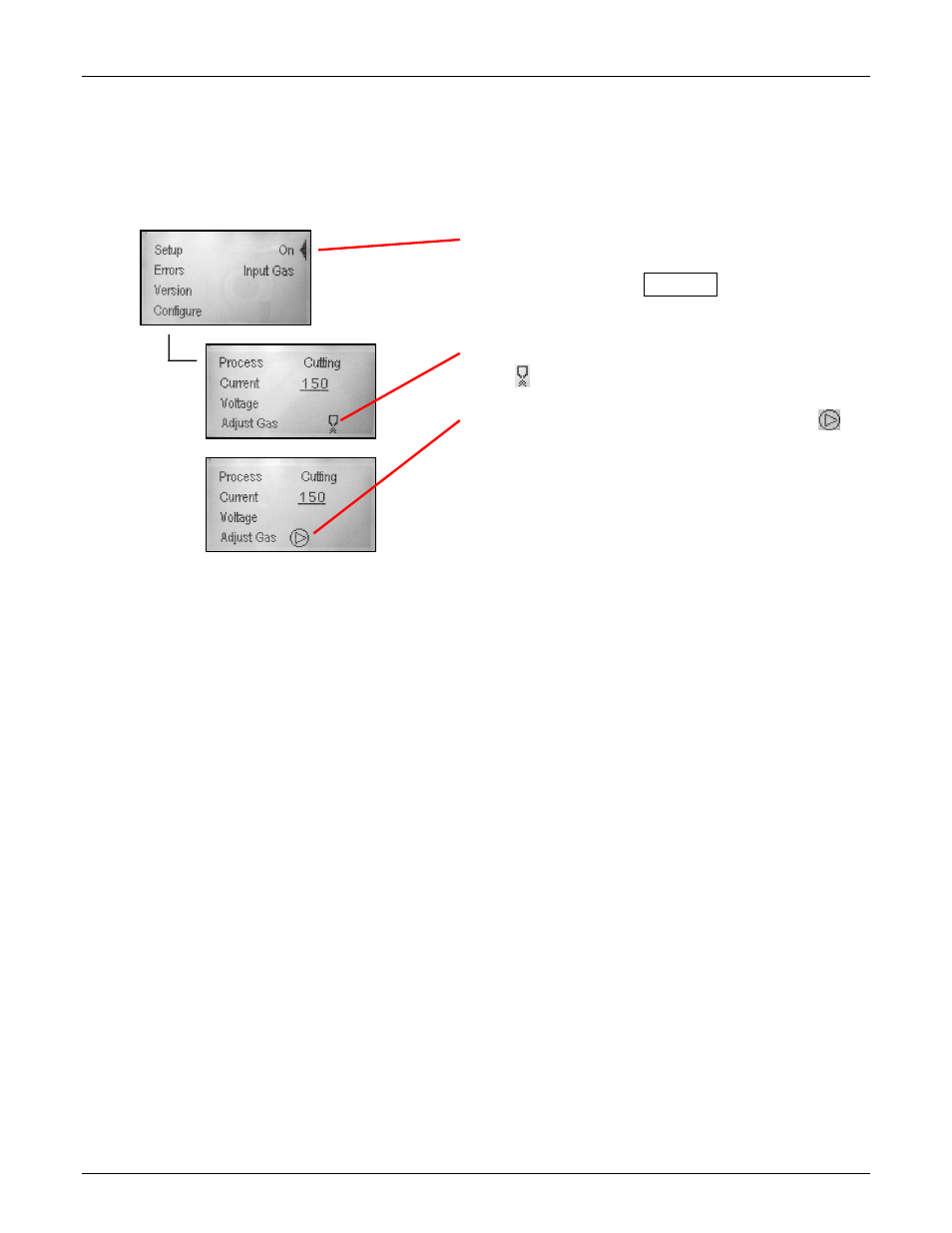

Release the OFF Button (turn to the right) on
the MGC. On the main menu, move the
pointer to On. Press SELECT.
The MGC will purge the gas hoses. The purge
icon ( ) is displayed during this process.
Once purging is complete, the ready icon ( )
is displayed. The system is now ready to cut or
mark.
When the system receives a start signal from
the X/Y controller, the following sequence is
initiated:
• Two second gas preflow
• Impulse start circuit energized
• Pilot arc initiation
• Transferred arc (cutting or marking arc)
established
• Motion output relay energized
When the start signal is removed, the arc is
extinguished and the motion output relay is
deenergized.
