A-8

INSTALLATION

MAXsa™ 10 CONTROLLER

A-8

K1543-XX
or K2683-XX

Arclink Cable

67 Lead

K1785-XX

14-Pin Cable

Work

K231-XX

Contact Nozzle

K2803-1

Power Wave

®

AC/DC 1000SD

K2814-1

MAXsa™ 10

K2370-2

MAXsa

22

K1811-XX

Sense Lead

Electrode

Weld Cable

Work

Weld Cable

Connection Diagrams for Additional

Configurations (Multi- Arc and Parelleled Power Sources)

are in the Power Wave® AC/DC 1000SD Operators Manual

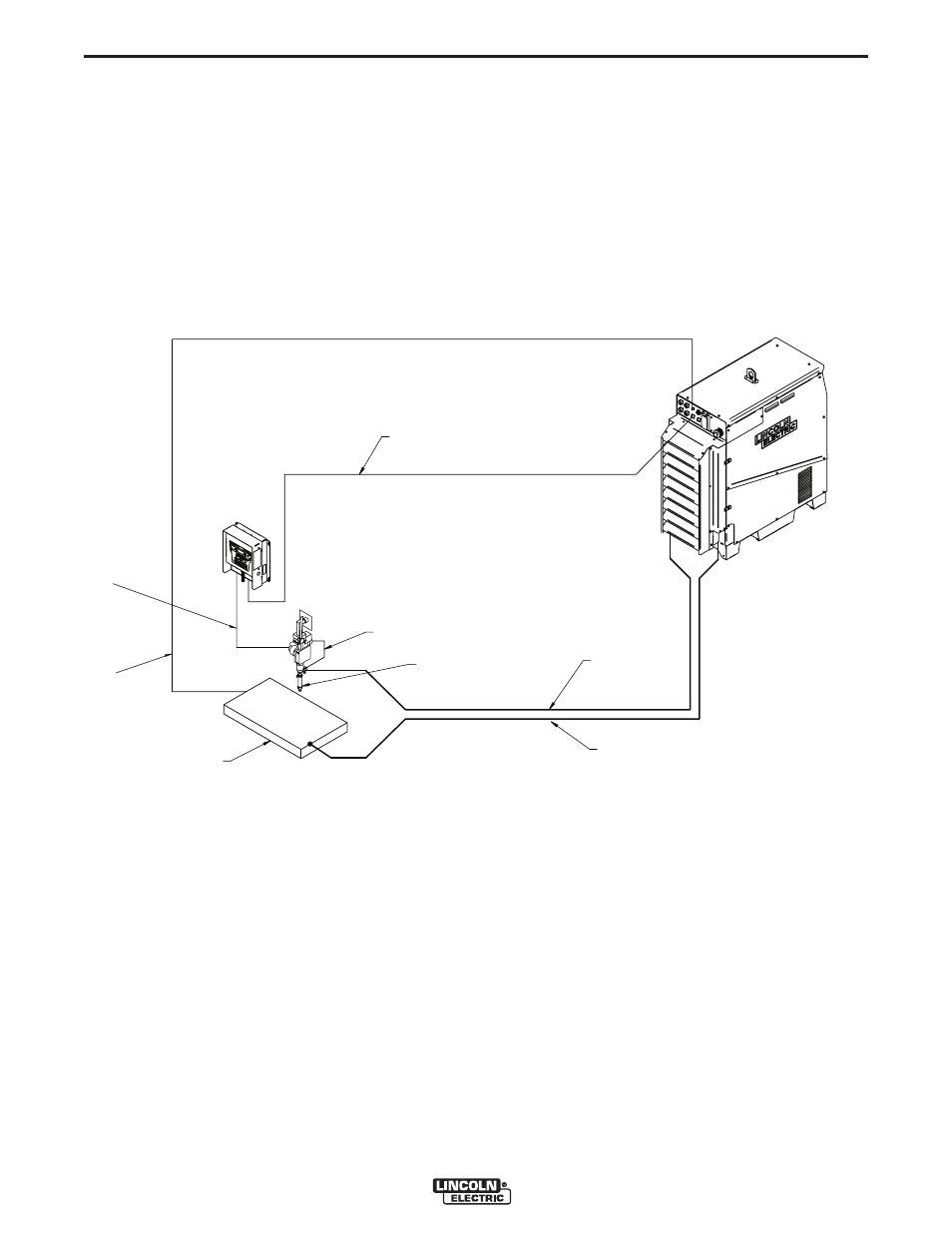

FIGURE A.6 - CONNECTION DIAGRAM - SINGLE ARC SySTEM
