4.5.13 Install Optional Keyboard

To install the optional keyboard, please follow the steps below.

Step 1:

Remove the cover from the keyboard bay.

Step 2:

Insert the keyboard slide rails into the keyboard bay while carefully routing the

PS/2 connector along the bottom panel of the workstation to the internal PS/2

keyboard connector until the entire keyboard assembly locks into place.

Step 3:

Connect the keyboard PS/2 connector to the internal PS/2 connector

(Figure 4-14).

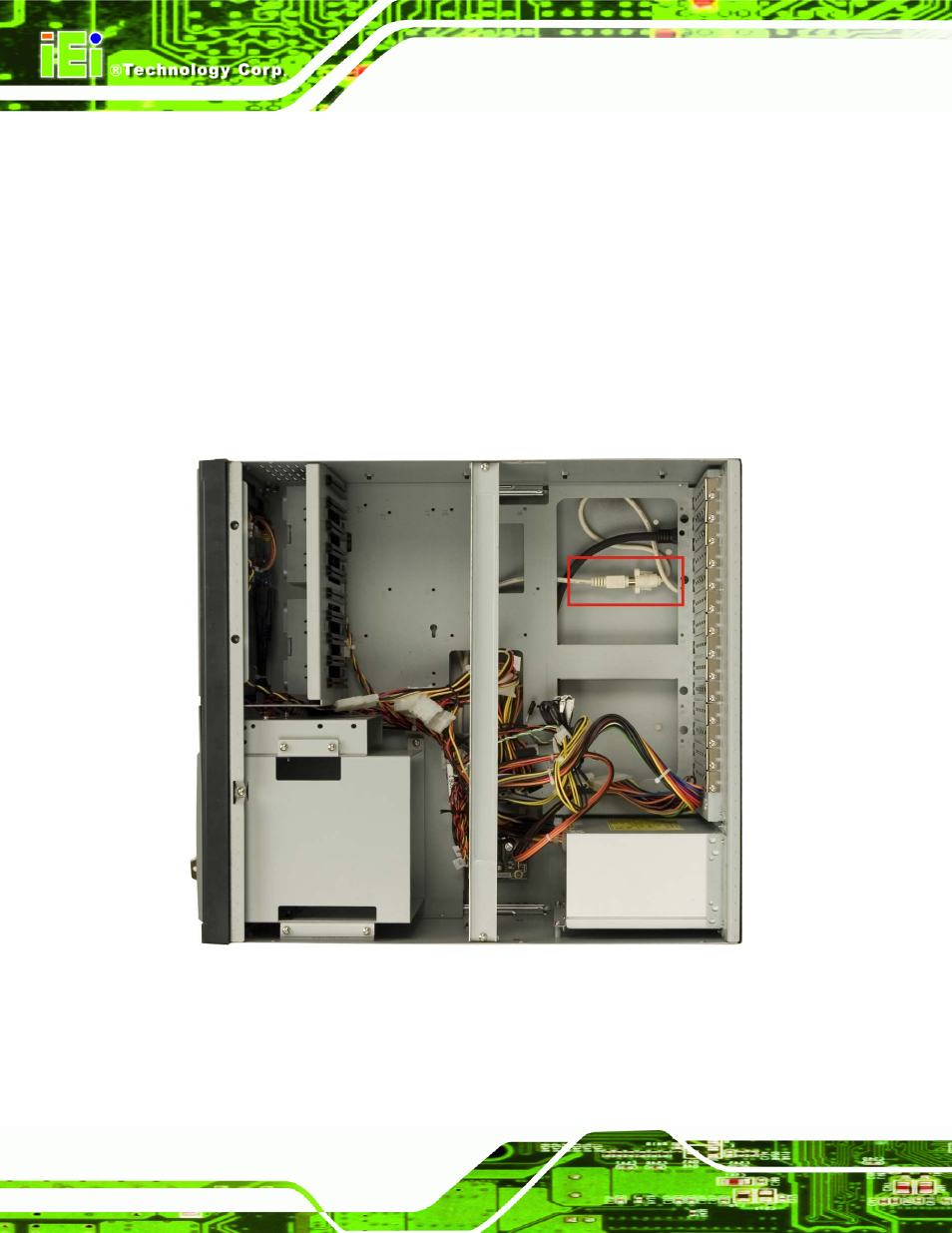

Figure 4-14: Internal PS/2 Connector
