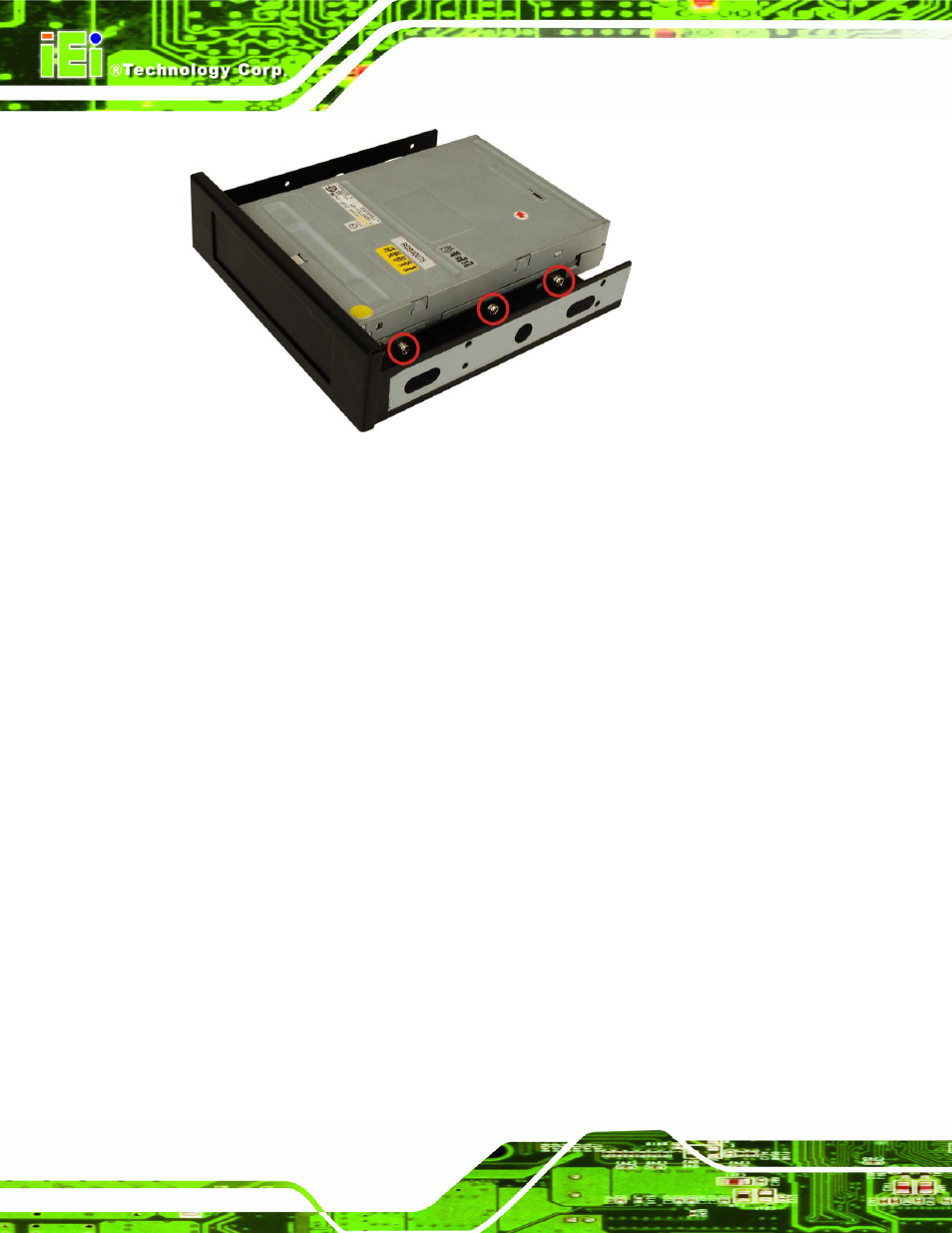

Figure 4-8: 3.5” to 5.25” Drive Bay Rack Retention Screws

Step 3:

Remove the drive bracket from the EC-1040GB rackmount workstation (see

Section 4.5.3).

Step 4:

Remove the 3.5” drive bracket from the 5.25” drive bracket (see Section 4.5.5).

Step 5:

Install the 3.5” to 5.25” drive bay rack into the drive bracket (see Section 4.5.6)

Step 0:

4.5.6.3 3.5” Disk Drive

To install a 3.5” disk drive, follow the instructions below.

Step 1:

Remove the drive bracket from the EC-1040GB rackmount workstation

(see Section 4.5.3).

Step 2:

Remove the 3.5” drive slot blank plate (see Section 4.5.4).

Step 3:

Slide a 3.5” disk drive into the 3.5” drive bracket. Make sure the IDE/SATA

connector and the power connectors of the drive are facing the rear of the drive

bracket.

Step 4:

Insert the appropriate number of retention screws into each side of the 3.5” disk

drive through the 3.5” drive bracket (Figure 4-9).

Step 0:
