Step 6:

Step 7:

Step 8:

Step 9:

Step 10:

Remove the two internal retention screws that secure the PSU assembly to the

right side panel of the workstation (Figure 5-2).

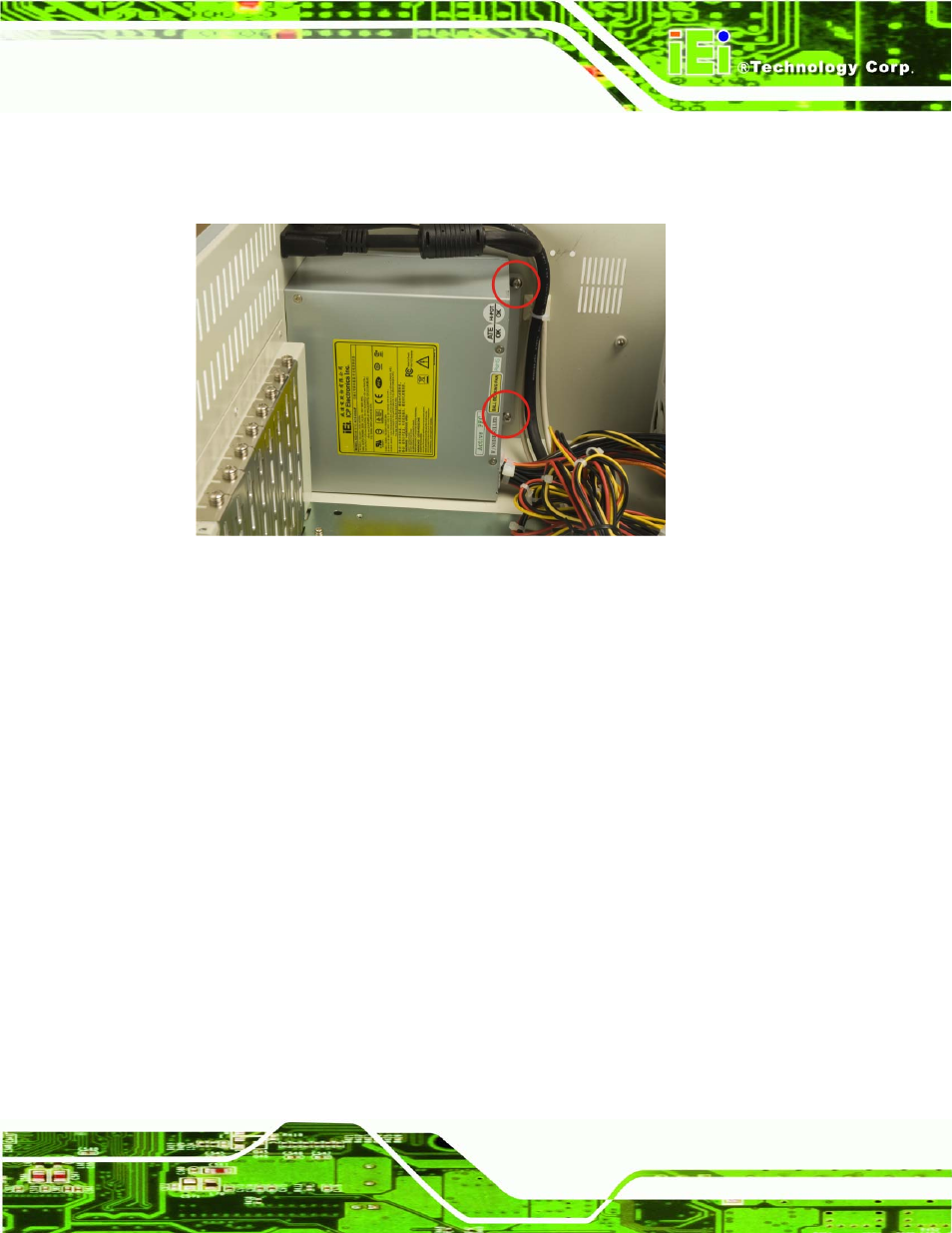

Figure 5-2: PSU Internal Retention Screws

Install the new PSU into the workstation making sure the PSU power connector

and PSU cooling fan are facing out of the workstation.

Reinsert the two previously removed internal retention screws that secure the

PSU assembly to the right side panel of the workstation.

Reinsert the four previously removed external retention screws that secure the

PSU assembly to the rear panel of the workstation.

Close the back cover of the workstation and reinstall the workstation into the

cabinet or rack in which it was previously installed. Refer to Section 4.6 for

complete mounting instructions.
