5.5 PSU Replacement

To replace a PSU, please follow the instructions below.

Turn off and disconnect the workstation from all power sources.

Remove the workstation from the rack in which it is installed.

Open the top cover of the RPC-6022GW Rackmount LCD Workstation. (See

Disconnect all the PSU cables from their devices.

Remove the four external retention screws that secure the PSU assembly to the

rear panel of the workstation (Figure 5-1).

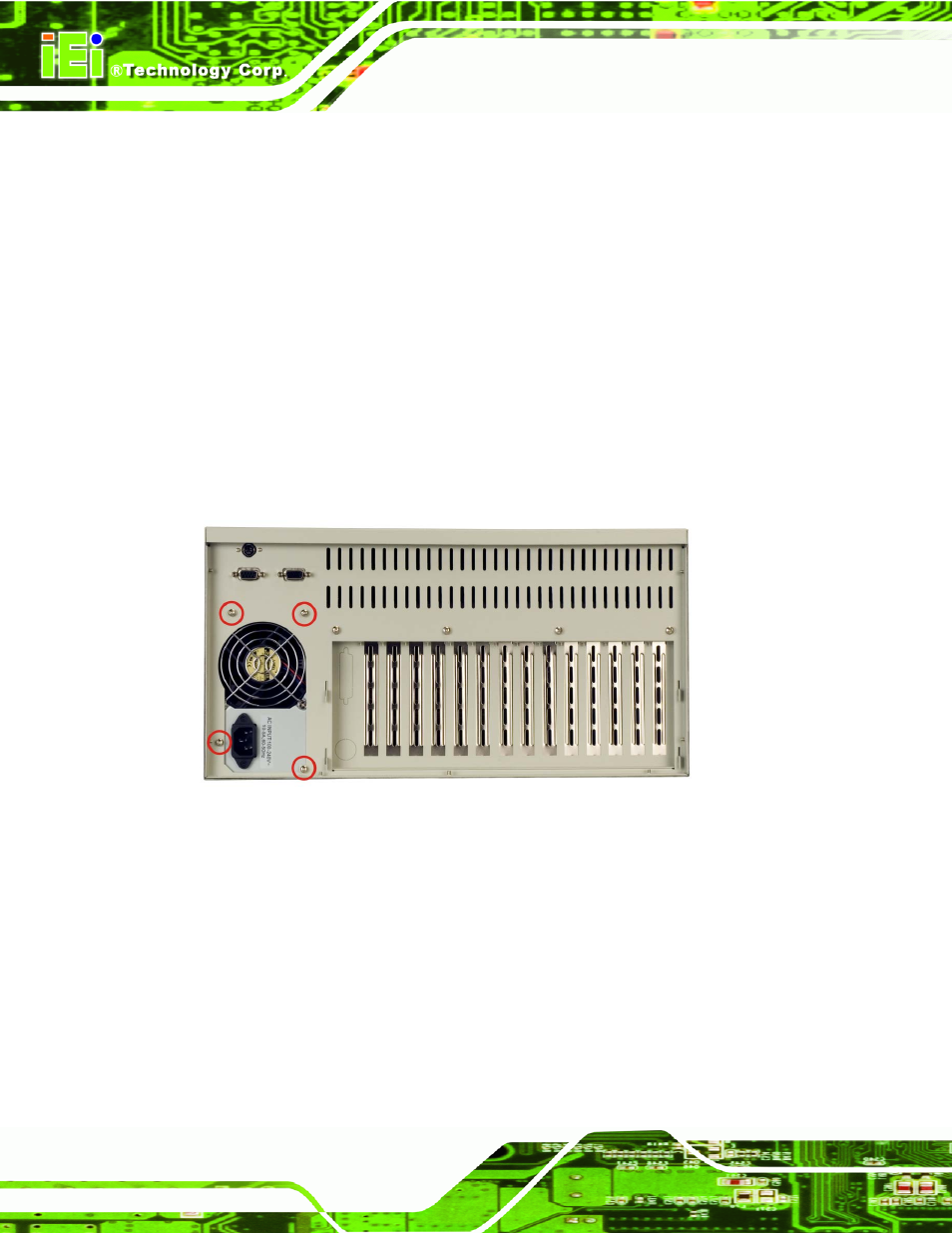

Figure 5-1: PSU External Retention Screws
