AFL-F08A-N270 Panel PC

Page 44

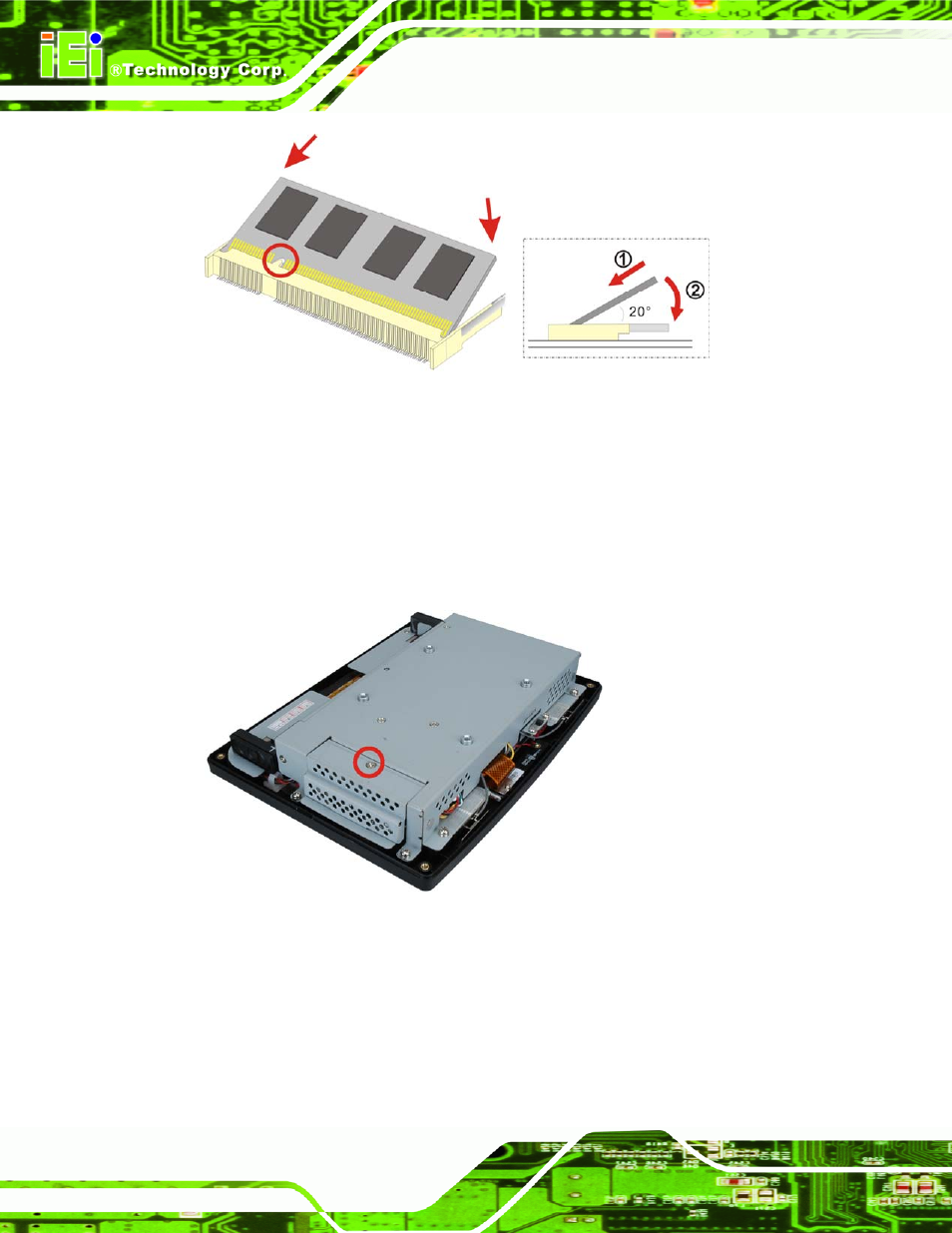

Figure 4-2: DDR SO-DIMM Module Installation

4.5.2 CF Card Replacement

To install the CompactFlash® card, the cover plate must be removed. To remove the

cover plate and install the CompactFlash® card, follow the instructions below.

Step 1:

Undo the CompactFlash® cover fastening screw.

Figure 4-3: CompactFlash® Card Cover
