AFL-F08A-N270 Panel PC
Page 4
1.3.1 Function Keys
The front panel of the AFL-F08A-N270 contains several function keys that control audio
volume, LCD brightness and power on/off.
The function keys are locked and illuminated with low intensity light in sleep mode. Touch
any function key to release key lock (the keys light up). Then, follow the descriptions
below to control the system.
Function Key Description
Power on/off Control system power on/off. Press for 3 seconds to turn on or turn off
the system.
Brightness up/down Press to increase or decrease LCD brightness.
Volume up/down Press to increase or decrease audio volume.
LCD on/off Press to turn on or turn off the LCD screen. It can not be activated until
the finger is removed.
Table 1-1: Function Keys
1.4 Rear Panel
The rear panel provides access to retention screw holes that support the wall mounting.
Refer to
5
Figure 1-3 .

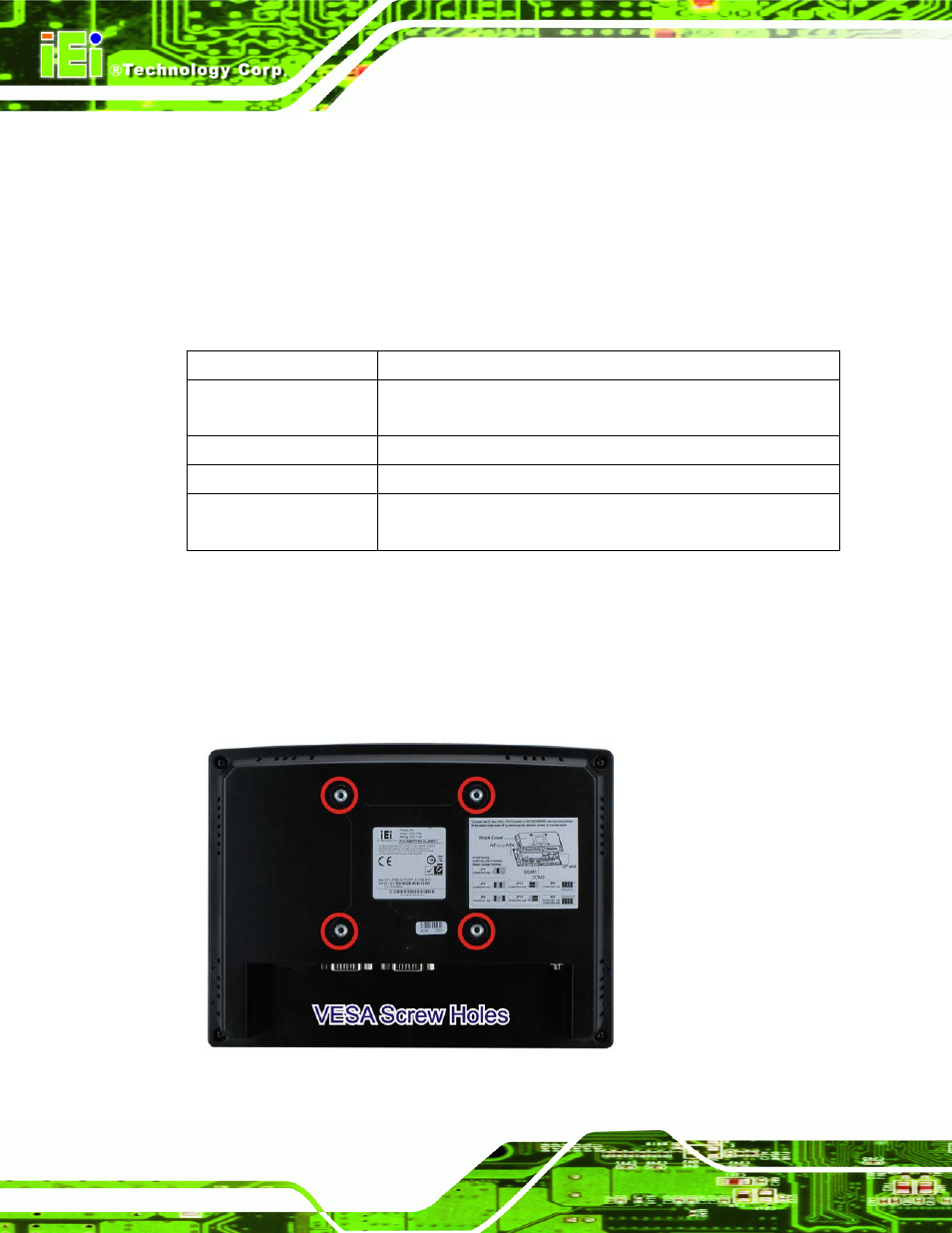

Figure 1-3: AFL-F08A-N270 Rear View
